Sorter Spot Welding Machine For 18650 Battery 1200W PLC Control

Product Description

High quality Automatic 18650 Battery Spot Welder Sorting Insulation Paper Sticking Machine

Product Description

This proposal is written on the development of 18650 battery positive
pole automatic insulation paper pasting equipment. Other types of batteries
cannot be used universally, but the technical parameters are the same.

Automatic sticker is mainly used to stick insulating paper on 18650
battery anode.

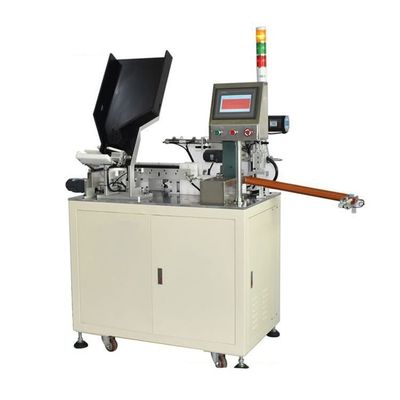

Cylindrical Battery Automatic Sticking Machine is a specially
designed device for preventing short circuit of nickel sheet caused by
shrinkage of PVC sleeve film on the positive electrode surface after high
temperature of battery. It is equipped with a whole roll of insulating
centrifugal paper punching die and automatically sticks to the positive
electrode of battery by mechanical precise positioning.

According to the interval distance set on PLC software, the equipment
sends the batteries to the designated position in sequence. The system can
realize automatic punching and bonding, and is provided with an overpressure
prevention mechanism

Product Features

18650 Battery Auto Sticker is a device specially developed for pasting
insulating paper on the positive electrode of battery. Compared with manual
operation, the bonding efficiency and bonding accuracy are greatly improved,
and the material cost is saved. The equipment design is simple, the operation
and debugging are clear at a glance, the human-machine interface language
is simple, and the equipment can be used through simple training without
excessive debugging.

Applicable to 18650 Cylindrical Battery. You can also customize
Cylindrical Battery sticker machines with different specifications.

According to the set program, the machine will automatically feed the
pasted battery into the material tank and can seamlessly connect the battery
voltage internal resistance sorting equipment. The machine will run
automatically without human intervention until the stop key is pressed and
the machine stops working.

Functional description

1 Punching out 3 pieces of battery insulation paper at a time.
2 Lei Sai motor is used to drive paper feeding.
3 The feeding method is designed to manually pour the battery into the inclined chute, which is convenient for operation.
4 The punching die is formed by precision machining of Mold Steel.
5 With that function of prevent the battery from being extrude excessively in the punching process and with an alarm prompt;
6 The calling and programming of parameters is simple and easy to operate interface with self-learning function, which is suitable for fast training.
7 During the operation, people only need to take and put the battery paper box. The rest are all automatic and do not need to be pressed continuously. Greatly improve the working efficiency of workers and reduce the operation action of work on machines.
8 With a display touch screen, faults are displayed on the screen in real time;
9 Efficiency evaluation:
The machine can paste 3 batteries at the same time every time it works, which
takes 1.8 seconds. About 100 batteries can be pasted per minute.
10 Overall average time of equipment stable working efficiency: >90%

Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the cells into the material sink.
3. Press the start button, HTM-1801 automatically complete all testing and sorting actions.
