Cylindrical 18650 Battery Sticker Machine , 50100 Paper Sticker Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Sticker Efficiency: | 5000/H | Total Power: | 100W |
|---|---|---|---|
| Feeding Method: | Manual Feeding | Fitting Method: | Automatic Type |
| Drive Method: | Pneumatic + Electric | Cooling Method: | Forced Air Cooling |
| Input Power: | 220V±10% 50Hz | Physical Dimension: | 1000L*700W*1560Hmm |
| Use: | Insulating Paper On The Positive Electrode Of The Battery | ||
| Highlight: | 18650 battery sticker Machine,50100 paper sticker machine,18650 battery sticker Machine |
||
Product Description
Automatic Cylindrical Battery Insulation Paper Sticker Sticking Machine For 18650 50100 Battery Labeling
Product Description

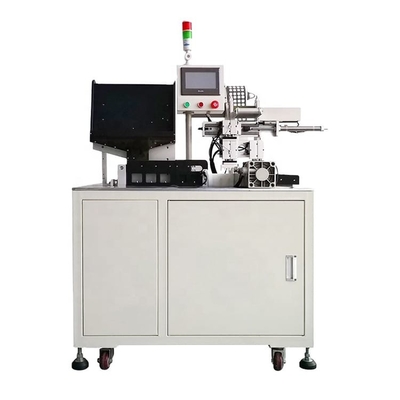

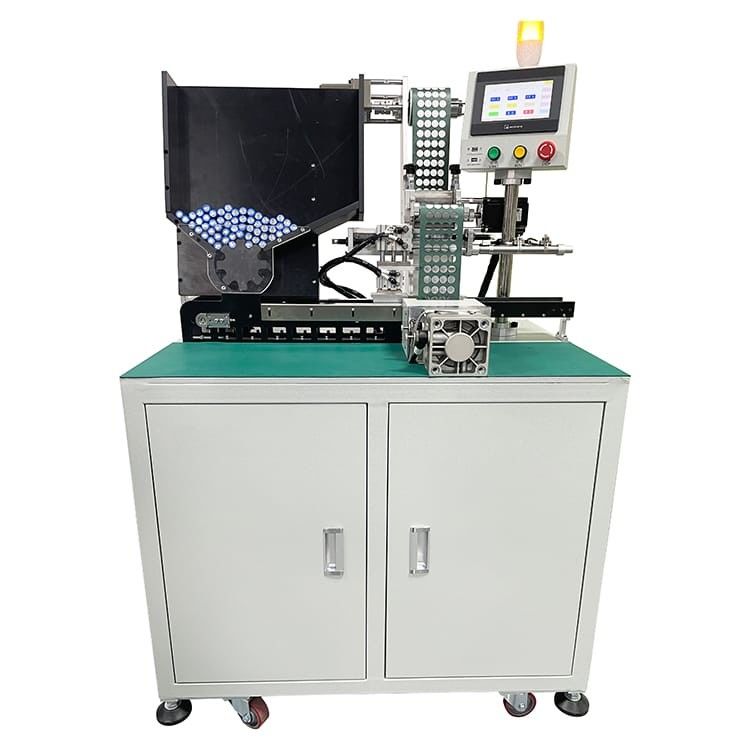

Cylindrical Battery Sticker Machine is an automated equipment used to paste insulating barley paper on cylindrical batteries. This machine is controlled by PLC and adopts the mechanical structure of stepping motor and speed reducer to realize the function of the electric core barley paper. The number of finished cylindrical electric cores is about 4000 per hour. This equipment comes with a pre-test station (optional), and the special mechanical design greatly avoids the deviation of the sticker position, and improves the stability of the equipment and the consistency of the product.
The product comes with high-precision internal resistance, voltage, and automatic test system
The device can accurately send the cells to the specified gear according to the set internal resistance voltage value
Automatic bonding of positive barley paper
Human and operation interface, simple operation
Can be manually loaded
Product Specification
|
Sticker efficiency
|
5000/H
|
|
Total power
|
100W
|
|
Feeding method
|
Manual feeding
|
|
Fitting method
|
Automatic type
|
|
Drive method
|
Pneumatic + electric
|
|
Cooling method
|
Forced air cooling
|
|
Input power
|
220V±10% 50Hz
|
|
Physical dimension
|
1000L*700W*1560Hmm
|
|
Use
|
Insulating paper on the positive electrode of the battery
|
|
Weight
|
280KG
|
|
Role object
|
Various lithium battery packs
|
Detail
