6 Channels Battery Cell Sorting Machine Testing Machine For 18650 26650 32650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Power: | 1.6KW | Voltage: | 220V AC Power Input, 50/60HZ: |
|---|---|---|---|
| Air Pressure: | 0.5-1.0Mpa | Internal Resistance Setting: | 000.0 Milliohm-999.9 Milliohm |
| Voltage Setting: | 0.000V-6.000V | Standard Tester: | HK3561 Standard High-speed Tester, Voltage Accuracy 0.0005V, Internal Resistance Accuracy 0.1 Milliohm |
| Test Results: | Repeated Testing, Excellent Results | Controller: | 7.5-inch Touch Screen Controller, 3-axis PLC Programmer |
| Highlight: | 26650 Battery Cell Sorting Machine,6 channels Battery Cell Sorting Machine,18650 lithium ion battery testing machine |
||
Product Description

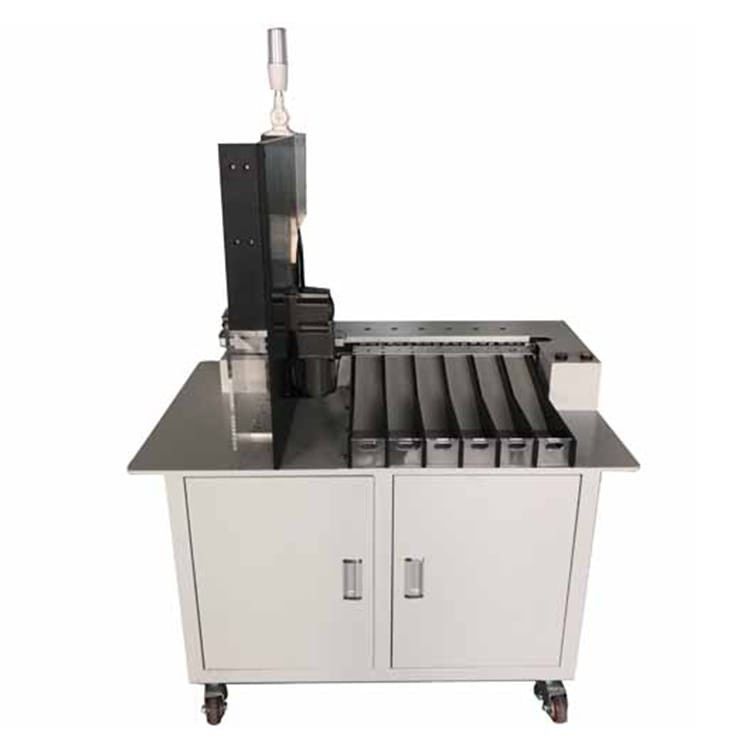

6 channels automatic cylindrical battery cell sorting machine equipment for 18650/26650/32650
Product Description
Our Cylindrical lithium battery cell automatic sorting machine 5-channel /6- channel/10-channel /20-channel is a device for automatic sorting voltage and internal resistance of 18650/26650/32650 cells. It can also sort voltage or sort internal resistance separately. This test sorting consists of PLC control + PC industrial computer. PLC controls AC servo motors, stepping motors and cylinders to complete the sorting function. PC is responsible for data collection and processing, and data storage. The sorting number of cylindrical cells is about 3500 pieces per hour. The mechanical structure design is simple and generous, the system test performance is stable, and the quality is first-class. It is currently a very cost-effective cylindrical battery sorting device on the market.
Product Specification
| Production efficiency | About 3500 batteries/hour without code scanning, and approximately 3000 batteries/hour with code scanning function |
| Scope of application | Automatic sorting voltage and internal resistance of 18650 cells, it can also sort voltage or sort internal resistance separately |
| Scan code function | This function is optional. You can customize the code scanning function, the standard machine does not have the code scanner function |
| Automatic online interface | It can be customized to connect the outlet of the automatic surface pad machine in the hopper of the machine to realize automatic connection of batteries and save labor costs |
| other optional function |
Customizable scan code and database data connection Optional power distribution core dynamic tester, which actually reflects the quality and load performance of the battery core |
| External connection | can be customized to automatically connect the automatic surface pad machine (the battery is poured into the automatic surface pad machine, and the surface pad automatically flows into the automatic sorting machine for sorting, saving manpower) |
| Power | 1.6KW |
| Voltage | 220V AC power input, 50/60HZ |
| air pressure | 0.5-1.0Mpa |
| Internal resistance setting | 000.0 milliohm-999.9 milliohm |
| Voltage setting | 0.000V-6.000V |
| standard tester | HK3561 standard high-speed tester, voltage accuracy 0.0005V, internal resistance accuracy 0.1 milliohm |
| Test results | Repeated testing, excellent results |
| Controller | 7.5-inch touch screen controller, 3-axis PLC programmer |
| Motion device | Closed-loop stepping motor is used for the division and shifting, and the positioning is accurate, and the synchronous belt transports the battery to prevent the surface of the battery from being damaged. |
| Feeding | Using hopper method for feeding, 500PCS can be put in one time |
| others |
Automatic collection of production quantity, display current production efficiency |
| Data storage | Test data can be stored in U disk |
| Equipment debugging | Equipment debugging is simple, easy to learn and understand, with fault alarm |
| warranty | 1 year |
