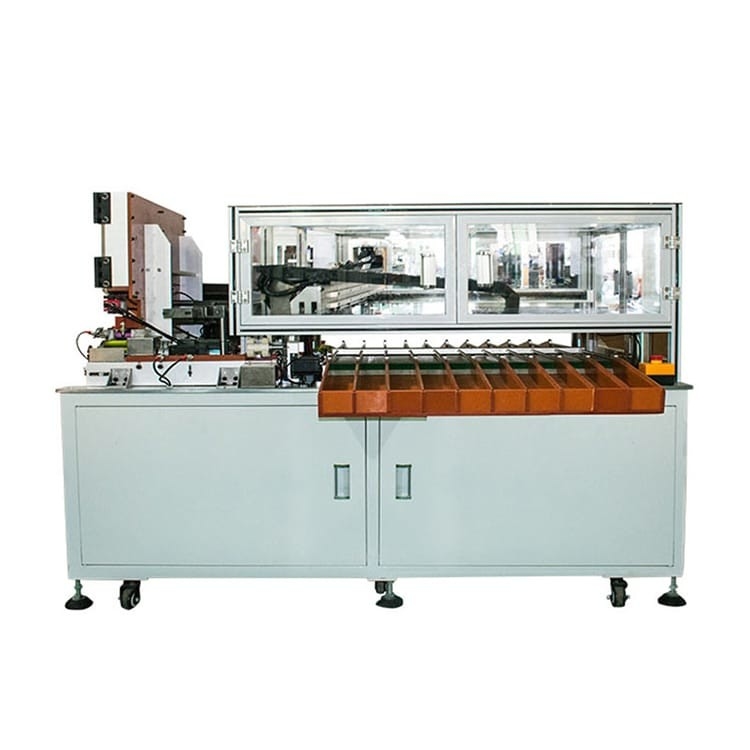

18650 Battery Cell Making Machine , 11 Channel Battery Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Operation Voltage: | AC220V ± 10% 50Hz | Rated Power: | <100W |
|---|---|---|---|
| Application Battery: | 18650 | Sorting Channel: | 2 Channels |
| Sorting Parameter: | AC Internal Resistance & DC Voltage | Productivity: | 2000 PCS/H |
| Internal Resistance Test Tolerance: | 0.1 MΩ | Voltage Test Tolerance: | 0.001 V |
| Feeding: | Hopper Feeding, 500 PCS Per Time | Pneumatic Pressure: | 0.3-0.5 Mpa |
| Actuate Ratio: | 99% | Net Weight: | 25 Kg |
| Highlight: | 18650 battery sorting machine,11 Channel battery cell making machine,18650 battery cell making machine |
||
Product Description
11 Channel Automatic Battery Sorter For 18650 Cylinder Battery
Product Description
MD-BS11 cylindrical battery sorter is the test sorting device for parameters such as internal resistance and voltage of cylindrical battery. According to the battery internal resistance and voltage value, the device can accurately sort the battery to the corresponding channel, and the system can perform the GO Channel and NG Channel sorting. This model with its compact structure design is the smallest size and most cost-effective sorter in the market.
Product Features
1. Display Screen: LED digital display screen, real-time display the voltage and internal resistance value.
2. Testing Mechanism: Adopt special probe 4-line measure method, u-shape slot positioning, high efficient sorting without distinguishing between positive and negative pole.
3. Feeding System: Hopper feeding, high speed and stable feeding, avoid crashing and scratching on the battery, suitable for feeding the whole box battery manually.
4. One-click operation, simple structure and easy maintenance.
5. Small size, light weight and small space occupation.
6. Power less than 100W, energy saving.
Product Specification
|
Item
|
Battery Sorting Machine
|
|
Model
|
MD-BS11
|
|
Operation Voltage
|
AC220V ± 10% 50Hz
|
|
Rated Power
|
<100W
|
|
Application Battery
|
18650
|
|
Sorting Channel
|
2 Channels
|
|
Sorting Parameter
|
AC Internal Resistance & DC Voltage
|
|
Productivity
|
2000 PCS/H
|
|
Internal Resistance Test Tolerance
|
0.1 mΩ
|
|
Voltage Test Tolerance
|
0.001 V
|
|
Feeding
|
Hopper feeding, 500 PCS per time
|
|
Pneumatic Pressure
|
0.3-0.5 Mpa
|
|
Actuate Ratio
|
99%
|
|
Net Weight
|
25 Kg
|
|
Dimension
|
400(L)×395(W)×650(H) mm
|

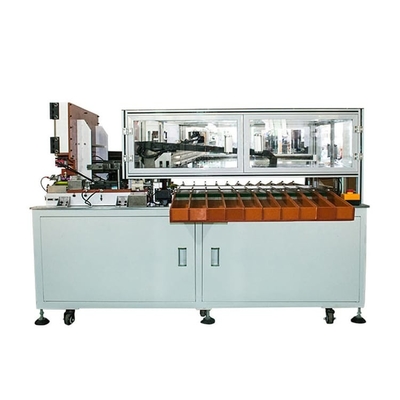

Sorting machine details
