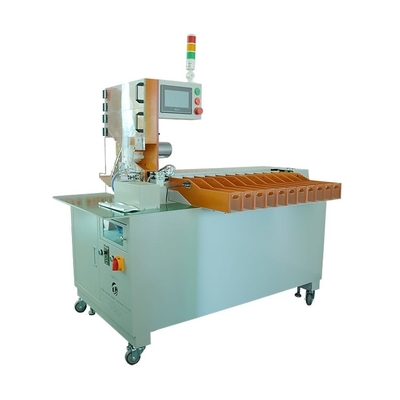

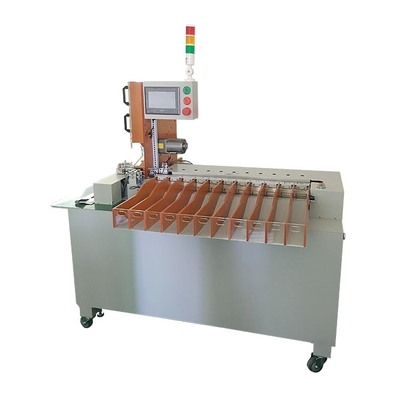

Lithium Ion Battery Cell Sorting Machine 11 Channels For Laptop Battery Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Electricity Source: | Single-phase 220VAC | Power: | 0.8KW |
|---|---|---|---|
| Working Gas Source: | 0.5-0.6MPa | Adaptation Battery: | 18650 |
| Efficiency: | 5000pcs Batteries Per Hour | Dimensions: | Length 100 * W 140 * H 160cm |
| Instrument: | Precision Voltage Resistance Tester (optional) | Batteries Sorting Parameters: | Open Circuit Voltage & AC Resistance |
| Open Circuit Voltage Accuracy: | ± 0.1% Rdg Display Resolution: 0.1 Millivolt | AC Resistance Accuracy: | ± 0.5% Rdg Display Resolution: 0.1 Milliohm |
| Highlight: | 11 Channels Battery Cell Sorting Machine,Tester Battery Cell Sorting Machine,lithium ion battery manufacturing machines |
||
Product Description
20 Channels Automatic li ion18650 battery sorting machine for laptop battery tester
Product Description
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage
measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core
voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.
ZOWAY can provide 5-22 channel battery sorter, the internal resistance tester can choose HIOKI3561 or HK3561.
The battery sorting machine can add a computer which can have data record function.
Product Features
1.18650 li-ion batteries test & sorting machine.
2. Used for factories automatic production in power banks, laptops and ebikes.
3.Test & sort 5000pcs batteries per hour.
0-1 worker to operate the machine, fast and with great efficiency.
Can be connected to next machines to move on to work next procedure automatically.
4.Touch screen operation, easy and fast responding.
5.Customers can set the voltage and internal resistance by themselves.
6.Overseas sales office in New Delhi, India.
7.12 months warranty and life-time maintenance.
Product Specification
| Electricity Source: | Single-phase 220VAC |
| power: | 0.8KW |
| Working gas source: | 0.5-0.6MPa |
| Adaptation battery: | 18650 |
| Efficiency: | 5000pcs batteries per hour |
| Dimensions : | Length 100 * W 140 * H 160cm |
| Weight: | About 300KG |
| Instrument: | Precision voltage resistance tester (optional) |
| Batteries Sorting Parameters: | Open circuit voltage & AC resistance |
| Open circuit voltage accuracy : |
± 0.1% rdg Display Resolution: 0.1 millivolt |
| AC resistance accuracy: |
± 0.5% rdg Display Resolution: 0.1 milliohm |

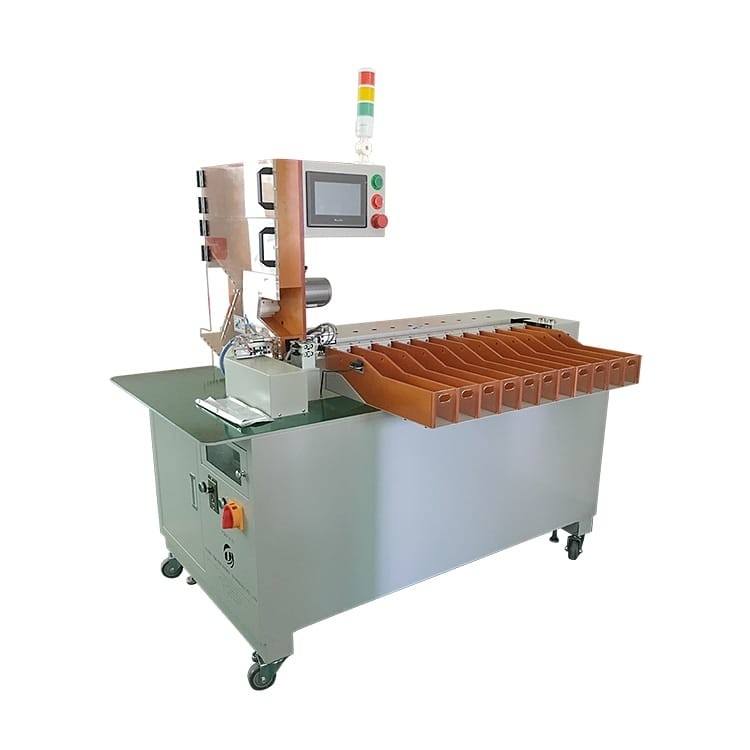

11 channel battery sorting machine details
