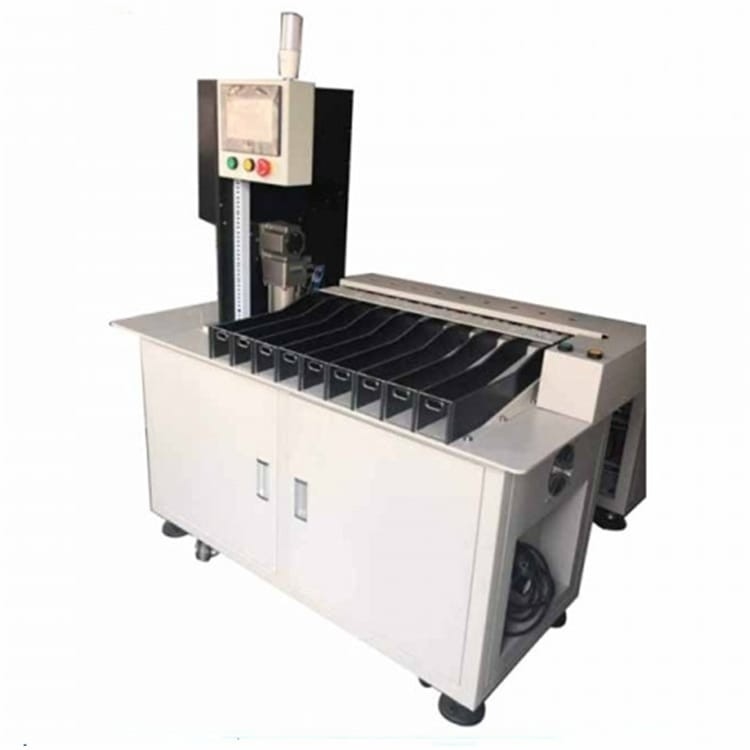

Cylindrical Battery Cell Sorting Machine , 9 Channels 18650 Battery Sorter Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Voltage Supply: | 220V±10%/50Hz±10% | Power: | <800W |
|---|---|---|---|
| Display Screen: | Large Size LCD Screen/Touch Screen | Battery Types: | Cylindrical Cell (18650,32650,18500,26650,14500,21700 Etc.) |
| Receiving Channel: | 9 Channels | Test Parameter: | AC Internal Resistance, DC Voltage |
| Sorting Speed: | 80PPM | Weight: | <200KG |
| Dimension: | 1120mm(L)*880mm(W)*1250mm(H) | Productivity: | 3000pcs/h |
| Highlight: | Cylindrical Battery Cell Sorting Machine,9 Channels Battery Cell Sorting Machine,18650 battery sorter machine |
||
Product Description
5 Channels 18650 26650 21700 32650 Automatic Cylindrical Battery Sorter Sorting Machine for Battery Pack Production
Product Description
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.
Product Features
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting
2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells
3. Sort by cell's voltage and impedance up to 5 groups
4. Automatic sorting control
5. Fast sorting speed (80PPM)
6. Easy to refill cells during the process
7. Wheels design, easy to move the machine to any operating place
Product Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <800W |
| Display Screen | Large size LCD screen/Touch screen |
| Battery Types |
Cylindrical Cell (18650,32650,18500,26650,14500,21700 etc.) |
| Receiving Channel | 9 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal ResistanceTest |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.5% rdg Resolution: 0.01mV |
| Sorting Speed | 80PPM |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000pcs/h |
Product Operation
The device measures the voltage resistance of the battery through a voltage internal resistance tester.
The voltage internal resistance parameters of four gears are set by man-machine interface. The voltage internal resistance of the core is tested by PLC and judged by the parameters. The battery grade is obtained. The sorting cylinder is controlled by PLC to send the battery to the corresponding receiving gears.
