Lithium Battery Cell Sorting Machine High Speed 5 Channels 80ppm
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | Auto Sorting Machine | Model No.: | MD-BS11 |
|---|---|---|---|
| Voltage Supply: | Single-phase ~220V±10%/50Hz±10%, Power <800W | Battery Types: | 18650(other Sizes Available) |
| Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. | Test Parameters: | AC Internal Resistance, DC Voltage |
| Sorting Speed: | 80ppm | AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. |
| Size: | L960mm*W540mm*H1350mm | Weight: | <150Kg |
| Highlight: | 5 Channels Battery Cell Sorting Machine,80ppm Battery Cell Sorting Machine,lithium cell sorting machine |
||
Product Description

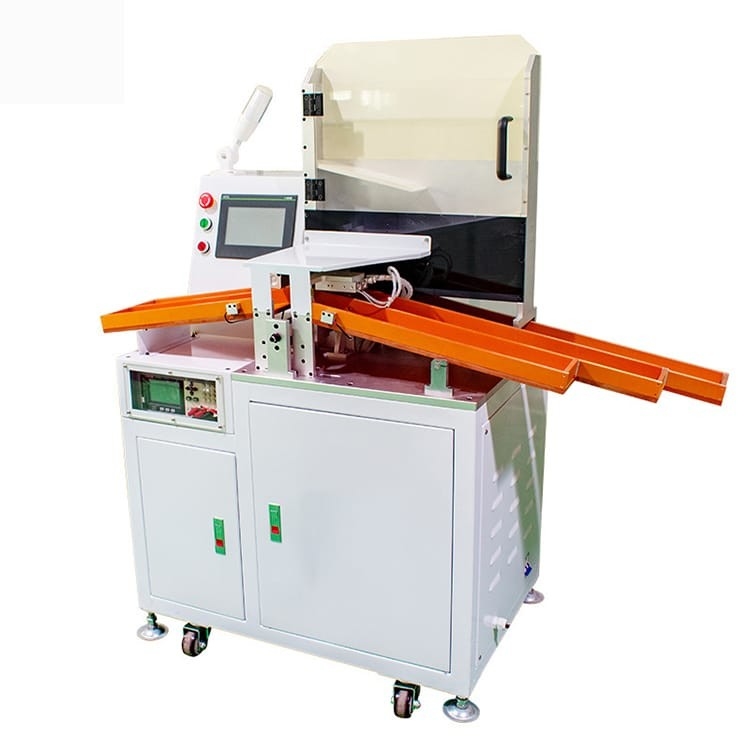

High Speed 5 Channels Cylindrical Battery Cell Automatic Sorting Machine
Product Description
MD-BS11 is suitable for automatic sorting of large and medium-sized cylinders batteries.Can automatically sort the batteries according to the specified requirements, fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process.
1.Has the characteristics of rapid and accurate sorting, improves the quality and efficiency of battery sorting.
2.Touch screen operation, easy and fast responding.
3.Automatically sort the voltage and internal resistance of cylindrical batteries.
4.The process detection signal is comprehensive and diverse.
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |

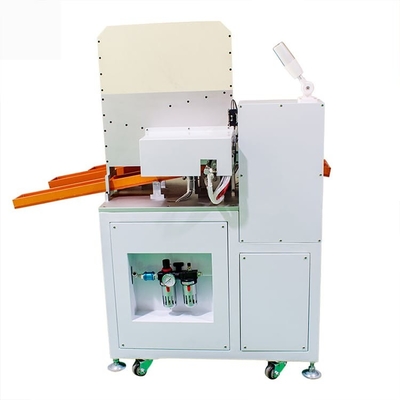

Sorting machine structure
