Automatic Battery Cell Sorting Machine 65PPM Sticker Efficiency Highland Barley
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | MD-BS11 | Working Air Source: | 0.5~0.8 Mpa |
|---|---|---|---|
| Adapt To Battery Specifications: | 18650 Finished Batteries | Sticker Efficiency: | ≥65PPM |
| Equipment Weight: | About 500 Kg | Pass Rate: | ≥99% |
| Sorting Parameters: | Open Circuit Voltage, AC Internal Resistance (optional) | Frame Material: | High-quality Thick Cold-rolled Sheet, Made Of Aluminum Profiles. |
| Open Circuit Voltage: | Accuracy +0.1% Rdg, Display Resolution 0.1mV | AC Internal Resistance: | Accuracy +0.5% Rdg, Display Resolution 0.01 Milliohms |
| Highlight: | Highland Barley Battery Cell Sorting Machine,65PPM Battery Cell Sorting Machine,65PPM lithium battery testing equipment |
||
Product Description
Automatic paste highland barley paper machine connection Lithium battery automatic ten-speed sorting machine
Product Description

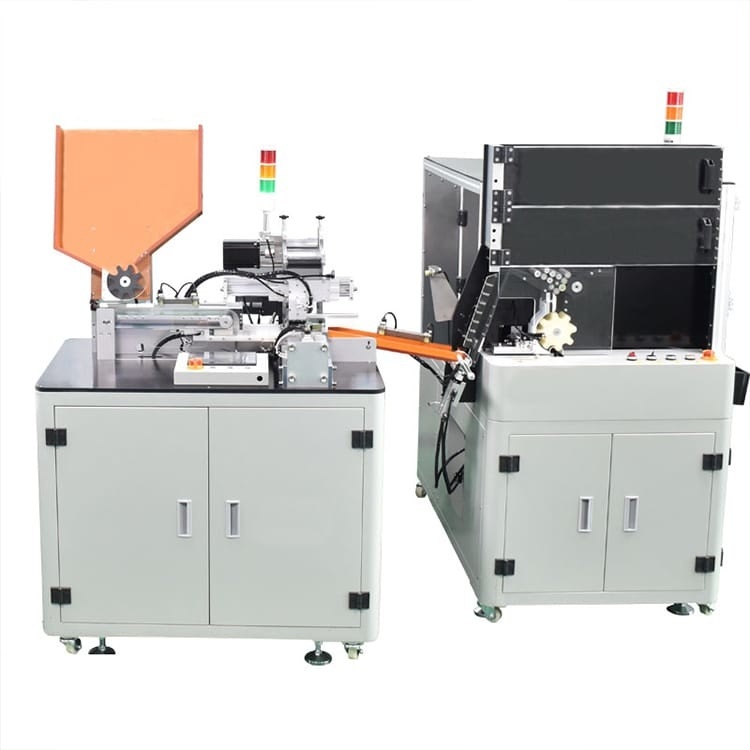

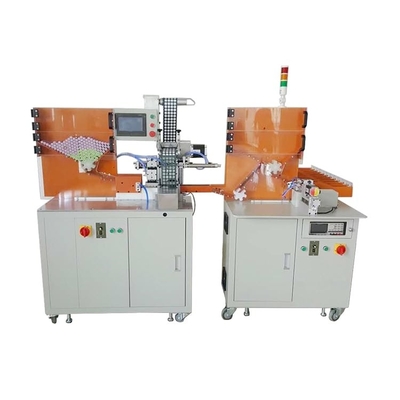

MD-BS11 Cylindrical battery (18650) sticking highland barley paper machine is an automatic equipment for testing and sorting cylindrical batteries after sticking highland barley paper first. This equipment is an automatic equipment for testing and sorting by the PLC battery first paste the highland barley paper. This equipment completes the test and sorting function by PLC computer and PLC, and completes about 4,000 finished cylindrical cells per hour. The mechanical structure design is simple and elegant, and the system performance is stable. In the current market, it is one of the most cost-effective equipment for sticking highland barley paper and sorting the cylindrical battery.
Product Features
The sorting parameters can be freely set by the user and are divided into 10 gears.
1. The equipment is compact in structure, beautiful in appearance and small in space. 2. The equipment is manually loaded into the whole box.
3. The equipment is made of high-quality thick cold-rolled sheet metal and aluminum profile frame.
4. The equipment is equipped with universal movable casters, and the equipment is easy to move and carry.
Product Specification
|
Working air source
|
0.5~0.8 Mpa
|
|
Adapt to battery specifications
|
18650 finished batteries
|
|
Sticker efficiency
|
≥65PPM
|
|
Equipment weight
|
about 500 kg
|
|
Pass rate
|
≥99%
|
|
Dimensions
|
1750(L) x2250(W) x1700(H)mm
|
|
Sorting parameters
|
open circuit voltage, AC internal resistance (optional)
|
|
Frame material
|
high-quality thick cold-rolled sheet, made of aluminum profiles.
|
|
Open circuit voltage
|
Accuracy +0.1% rdg, display resolution 0.1mV
|
|
AC internal resistance
|
accuracy +0.5% rdg, display resolution 0.01 milliohms
|
|
Voltage internal resistance tester Hepu
|
HK3561
|
|
Touch screen: MCGS Switching power supply
|
Taiwan MEAN WELL VI. Operating environment
|
|
PLC
|
PLC: Panasonic FPX C60T
|
|
Stepping motor
|
Xingfengyuan
|
|
Bearing
|
Japan NSK
|
|
Sensor
|
Japan Panasonic and Omron
|
|
Cylinder
|
Yadke
|
|
Indoor temperature
|
-30C~50C.
|
|
Indoor humidity
|
below 55%.
|
|
Factory site
|
no pollution and no strong electromagnetic interference.
|
Product Operation
Filling the whole box of batteries → Motor rotation → The cylinder pushes the battery out of a belt to transport the battery → The battery is pushed out → The battery enters the conveyor belt - the stopper cylinder is released → The screw drives the cylinder battery to form a group → The battery is full of 4 screw rods to move the battery →Press down the cylinder → move the battery to the position where the highland barley paper is attached → the cylinder repositions the battery > the stepper motor pastes the highland barley paper → waste recycling → the finished battery goes to the feeding chute → the cylinder pushes the battery to the sorting machine belt (printing code Optional) → battery push out → test battery -> the manipulator grabs the battery after the battery is full 5 → 10 gears are sorted and manually packed.
