LiFePO4 LiCoO3 Professional Battery Analyzer , 24S Bms Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | BMS TESTER | Model No.: | PBTS24-120 |
|---|---|---|---|
| Estable Type: | LiFePO4, LiCoO3 | Number Of Test Strings: | 1S-24S |
| Reference Voltage: | Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V) | Over Discharge Protection: | 0-5V ±5mv |
| Over Discharge Protection Released: | 0-5V ±5mv | Over-discharge Protection Current Protection Value: | 1A-200A ±0.1 (continuous Long-term Discharge) |
| Overcharge Protection Current Protection Value: | 1A-50A ±0.1 | Overcurrent Protection Delay: | 0-8S ±1ms |
| Highlight: | LiFePO4 professional battery analyzer,LiCoO3 professional battery analyzer,24S bms tester |
||
Product Description

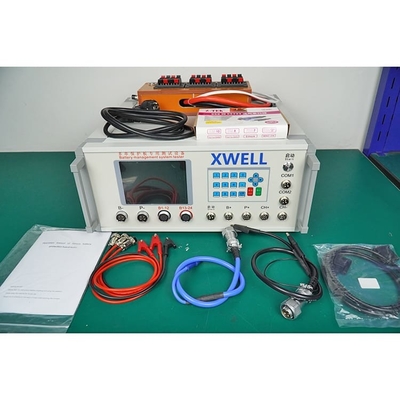

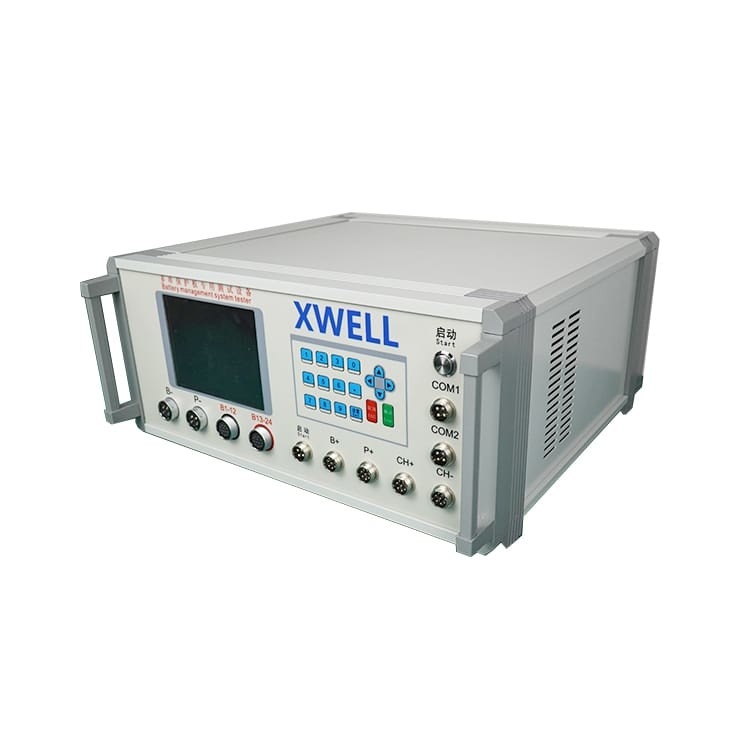

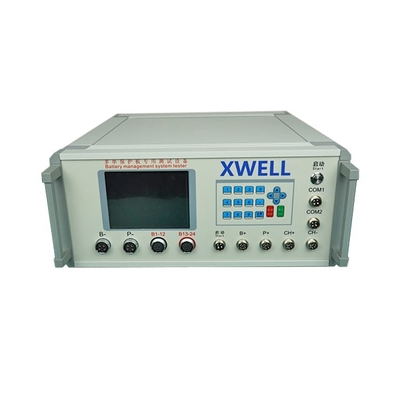

Lithium Ion Battery 24S BMS Testing Machine For Lifepo4 Battery
Product Description
It is mainly used to detect whether the functional indicators of the lithium battery protection board are within the parameter range, so as to provide a set of detection standards for the staff. It is mainly used for testing power battery protection board of protection board manufacturer and power battery manufacturer.
Performance Routine Test Items:Overcharge protection voltage, overcharge recovery voltage, over discharge protection voltage, over discharge recovery voltage, over-current protection, over-current delay performance test, short-term protection performance test, total self consumption current of protection board, etc.
Special Test Items:Single section self consumption test (refers to the true and accurate self consumption of each section).Types of Protection Boards Supporting Testing:LiFePO4, LiCoO3, LiMn2O4,ect.
Specifications
|
NO.
|
Project Type
|
Adjustable Range
|
Accuracy
|
|
1
|
Serial number
|
1-24
|
1-24S
|
|
2
|
Overcharge protection
|
0.5-5V
|
±1mV
|
|
3
|
Overcharge protection released
|
0.5-5V
|
±1mV
|
|
4
|
Over discharge protection
|
0.5-5V
|
±1mV
|
|
5
|
Over discharge protection released
|
0.5-5V
|
±1mV
|
|
6
|
Over current protection delay
|
0-15S
|
±1mS
|
|
7
|
Over discharge protection value
|
1A-50A
|
±0.1A
|
|
8
|
Total power consumption test
|
0-999uA
|
±5uA
|
|
9
|
Internal resistance test of main circuit
|
0-200mΩ
|
±1mΩ
|
|
10
|
Testable type
|
LiFePO4, LiCoO3
|
|
