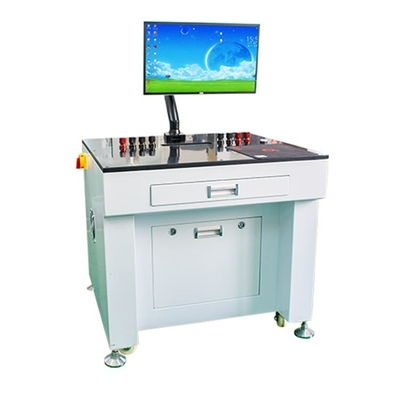

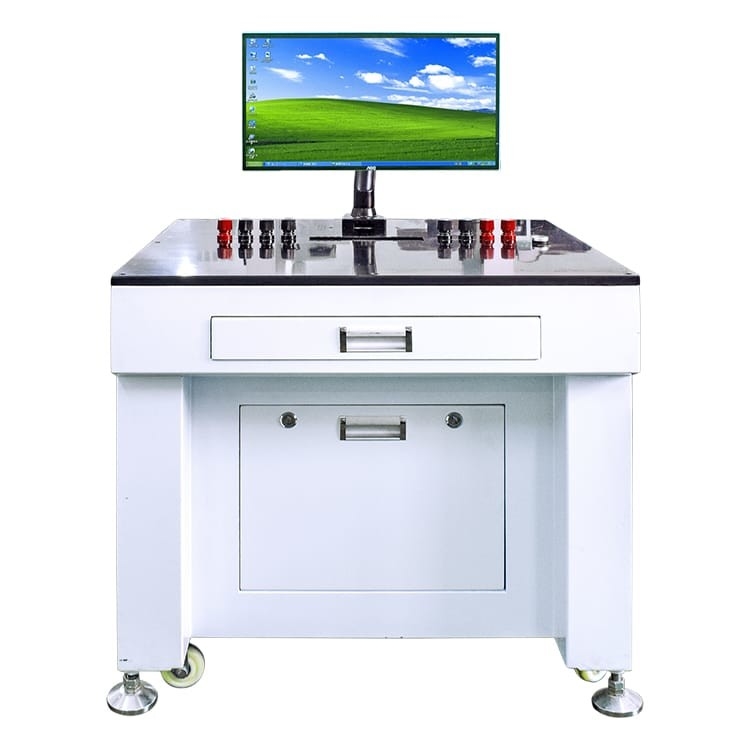

Lithium Battery Bms Testing Equipment 1-32 Series Multi Function
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS32-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | BMS TESTER | Model No.: | PBTS32-120 |
|---|---|---|---|
| Number Of Test Strings: | 1-32 | Reference Voltage: | LiCoO3(3.8V) LiFePO4(3.0V) |
| Balanced Real Time Current: | 0-1000mA | Single Section Self Consumption: | 0-500uA |
| Over-discharge Protection Current Protection Value: | 1A-200A ±0.1 (continuous Long-term Discharge) | Loop Internal Resistance: | 0-500mΩ |
| Short Circuit Protection (more Than 6 Strings): | 0-9999us | Equalization Function Opening Voltage: | 0-5V ±5mV Equalization Current 0-1000mA ±0.1uA |
| Highlight: | bms testing equipment,Multi Function bms testing equipment,XWELL lithium battery capacity tester |
||
Product Description
High-Power Lithium-Ion Battery Pack 150A 1-32 Series Battery BMS Testing Machine
Product Description
PBTS32-120 multi-function protection board test system, mainly used to detect various functional indicators of power battery protection board.
Whether it is within the parameters, thus providing a set of testing standards for the staff. Mainly used for protection board manufacturers.
And the power battery protection board test of the power battery manufacturer.
Test functions include: overcharge protection voltage, overcharge recovery
Voltage, over-discharge protection voltage, over-discharge recovery voltage, over-discharge current protection, short-term performance test, charge current protection, balance the voltage, equalize the real-time current, the total self-consumption
current of the protection board, and the single-section self-consumption current.
Features
1, short circuit protection test (refers to the real short circuit protection test microsecond level).
2, single section self-consumption power test(refers to the battery current consumed by each protection board)
3.Equilibrium current and equalization voltage (can accurately capture the equalization current) flow and equalization voltage).
Why is it worth to have a protective board test instrument?
The protection board is soldered on the battery core to protect the battery core.
When the battery voltage is too high or too high during use.
Low, when the current is too large, and the voltage is inconsistent, the protection board will play its role to power off the entire battery.
Test fixtures that can often see the performance of various test protection boards, test fixtures can be roughly divided into two categories
Charge and discharge test (connected to the battery pack can charge and discharge OK, advantage: test efficiency is very high, basically one second can test one BMS.
Finished Disadvantages: Protection board charging and discharging protection performance is equivalent to no test) The second type of fixture is the basic performance test of the protection board (Advantages: It can be tested whether the voltage of the protection board and the over-current of the protection board are protected. Disadvantages: the test module is multi-effect
The rate is low, the single-section self-consumption can not be tested, and manual switching is prone to missed detection). It can be based on customers
The project of the household demand test is freely matched, and the accurate test can accurately test the performance parameters of the protection board.
The quick mode can quickly determine if the protection board parameters are within the setting range.
Specifications
| NO. | Items | Measuring Range | Accuracy |
| 1 | Number of test strings | 1-32 | |
| 2 | Reference voltage | LiCoO3(3.8V) LiFePO4(3.0V) | |
| 3 | Overcharge protection voltage | 0.5-5V | ±5mV |
| 4 |
Over discharge protection voltage
|
0.5-5V | ±5mV |
| 5 |
Overcharge recovery voltage (self recovery)
|
0.5-5V | ±5mV |
| 6 | Over discharge recovery voltage (self recovery) | 0.5-5V | ±5mV |
| 7 | Overcharge protection current | 1-40A | ±0.1A |
| 8 | Over discharge protection current | 1-150A | ±0.1A |
| 9 | Balanced opening voltage | 0.5-5V | ±5mV |
| 10 | Balanced real time current | 0-1000mA | ±1mA |
| 11 | Over current protection delay | 0-15S | ±1mS |
| 12 | Overcharge protection delay | 0-20S | ±1mS |
| 13 | Over discharge protection delay | 0-20S | ±1mS |
| 14 | Single section self consumption | 0-500uA | ±1uA |
| 15 | Loop internal resistance | 0-500mΩ | ±1mΩ |
| 16 | Short circuit protection (more than 6 strings) | 0-9999us | ±1uS |
|
Scope of Application:All hardware scheme protection boards and some software boards on the market (special test items need to
|
|||
