PCB System BMS Testing Machine , 150A Lithium Battery Test Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS32-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | BMS TESTER | Model No.: | PBTS32-120 |
|---|---|---|---|
| Number Of Test Strings: | 1-32 | Reference Voltage: | LiCoO3(3.8V) LiFePO4(3.0V) |
| Over Discharge Protection: | 0-5V ±5mv | Over Discharge Protection Released: | 0-5V ±5mv |
| Over-discharge Protection Current Protection Value: | 1A-200A ±0.1 (continuous Long-term Discharge) | Overcharge Protection Current Protection Value: | 1A-50A ±0.1 |
| Overcurrent Protection Delay: | 0-8S ±1ms | Equalization Function Opening Voltage: | 0-5V ±5mV Equalization Current 0-1000mA ±0.1uA |
| Highlight: | PCB System BMS Testing Machine,150A BMS Testing Machine,lithium battery test chamber |
||
Product Description

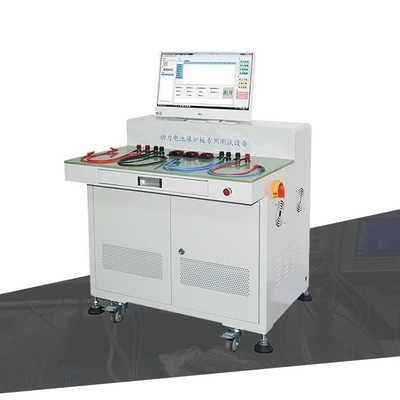

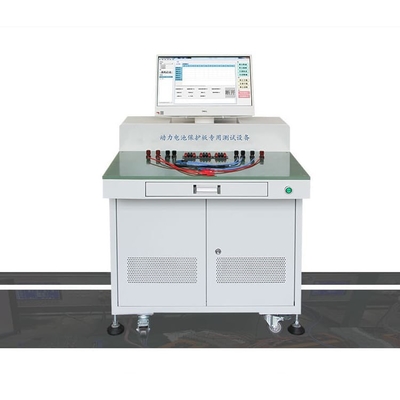

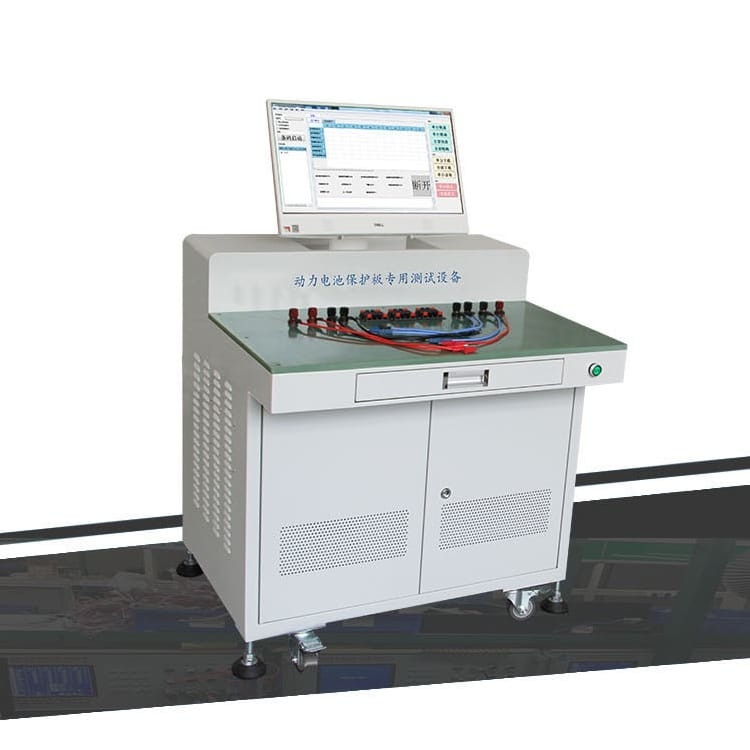

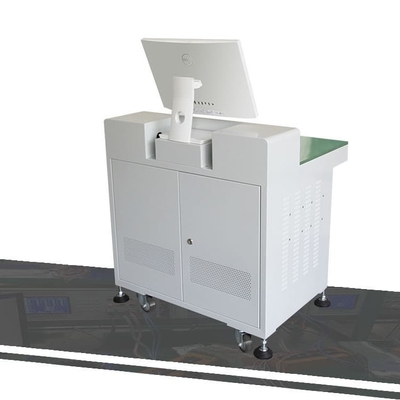

24S 32S Lab Lithium Lifepo4 Battery Pack Production Board PCB System Test BMS Tester Machine For Li ion Cell PCM Testing
Product Description
It is mainly used to detect whether the functional indicators of the power battery protection board are within the parameter range, so as to provide a set of detection standards for the staff. It is mainly used for testing power battery protection board of protection board manufacturer and power battery manufacturer.
Function
The protection board test system is divided into two types: Fast Test and Precise Test
Precise Test: It can accurately detect the accurate values of various functional parameters of the power battery protection board (the error is 5mv), which is convenient for the debugging and development of samples, and provides a set of standards for rapid detection for the R&D personnel.
Quick Test: According to the design parameters of the protection board, the test parameters are set to carry out the rapid test, which is convenient for the protection board manufacturers and power battery manufacturers to carry out large-scale rapid test and shipment. At the same time, it is suitable for the protection board test of various hardware schemes and some software schemes.
Performance
Routine Test Items: Internal resistance test, overcharge and overdischarge test, overcharge recovery, overdischarge recovery test, over-current test (charging and discharging over-current), overcharge protection voltage, overcharge recovery voltage, over discharge protection voltage, over discharge recovery voltage, over-current protection, etc
Special Test Items: Short circuit protection test (refers to the real short circuit protection test microsecond level). Single section self consumption test (refers to the true and accurate self consumption of each section). Equalizing current and equalizing voltage (it can accurately grasp the equalizing current and equalizing opening voltage).
Types of Protection Boards Supporting Testing: LiFePO4, LiCoO3, LiMn2O4
Technical Parameter
High Current Module: The current level is 150A and the current accuracy is 0.1A.
Voltage Module:Voltage range 0.5-5V, programmable output 0.5-5V, voltage precision 5mV.
Short Circuit Module: Super capacitor, fully simulate pack battery voltage, short circuit protection board instantly, accurately capture short circuit time and current.
Product Appearance Structure and Working Environment Requirements
Equipment Size: Instrument volume 550*500*220mm;
Net weight: 20KG
Work Environment: The working power supply requires AC 220 V input, power fluctuation range (170-260 V), working environment temperature from - 10 ℃ to 40 ℃, working humidity from 10% to 90%, and the maximum power of 750 W, which only appears under the condition of high current.
Product Specifications
|
NO.
|
Items
|
Measuring Range
|
Accuracy
|
|
1
|
Number of test strings
|
1-32
|
|
|
2
|
Reference voltage
|
LiCoO3(3.8V) LiFePO4(3.0V)
|
|
|
3
|
Overcharge protection voltage
|
0.5-5V
|
±5mV
|
|
4
|
Over discharge protection voltage
|
0.5-5V
|
±5mV
|
|
5
|
Overcharge recovery voltage (self recovery)
|
0.5-5V
|
±5mV
|
|
6
|
Over discharge recovery voltage (self recovery)
|
0.5-5V
|
±5mV
|
|
7
|
Overcharge protection current
|
1-40A
|
±0.1A
|
|
8
|
Over discharge protection current
|
1-150A
|
±0.1A
|
|
9
|
Balanced opening voltage
|
0.5-5V
|
±5mV
|
|
10
|
Balanced real time current
|
0-1000mA
|
±1mA
|
|
11
|
Over current protection delay
|
0-15S
|
±1mS
|
|
12
|
Overcharge protection delay
|
0-20S
|
±1mS
|
|
13
|
Over discharge protection delay
|
0-20S
|
±1mS
|
|
14
|
Single section self consumption
|
0-500uA
|
±1uA
|
|
15
|
Loop internal resistance
|
0-500mΩ
|
±1mΩ
|
|
16
|
Short circuit protection (more than 6 strings)
|
0-9999us
|
±1uS
|
|
Scope of Application:All hardware scheme protection boards and some software boards on the market (special test items need to
|
|||
We can also provide the maximum over discharge protection current: 120A, which is a 24 series protection board tester.
