Lithium Ion Battery Bare Board Testing Machines 3V Voltage Reference
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS32-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Number Of Testing Series: | 1-32 Series Optional | Voltage Reference: | Ternary Battery:3.8V, Lithium Battery: 3V |
|---|---|---|---|
| Overcharge / Overdischarge Protection Voltage: | 0.5-5V | Overcharge/Overdischarge Voltage: | 0.5-5V |
| Overcharge Protection Current: | 0-50A | Over-discharge Protection Current: | 0-120A |
| Equilibrium Open Voltage: | 0.5-5V | Equilibrium Real-time Current: | 0-200mA |
| Overcurrent Protection Delay: | 0-15S | Overcharge/Overdischarge Protection Delay: | 0-20S |
| Highlight: | XWELL bare board testing machines,3V bare board testing machines,lithium ion battery analyzer |
||
Product Description

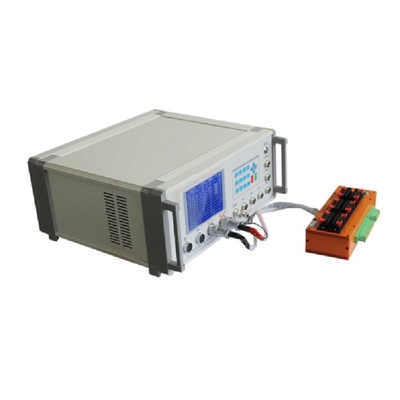

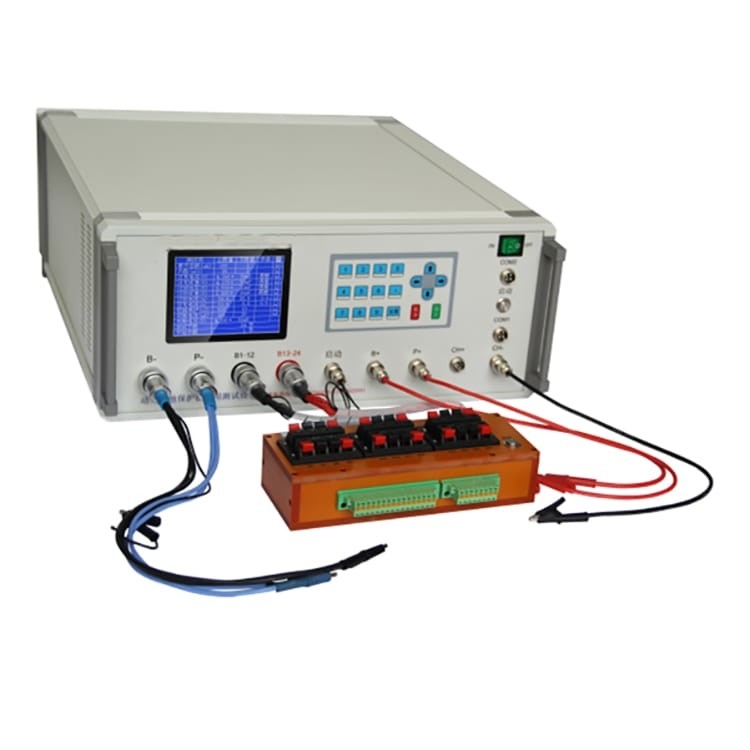

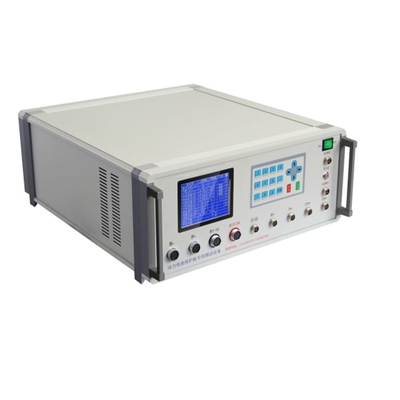

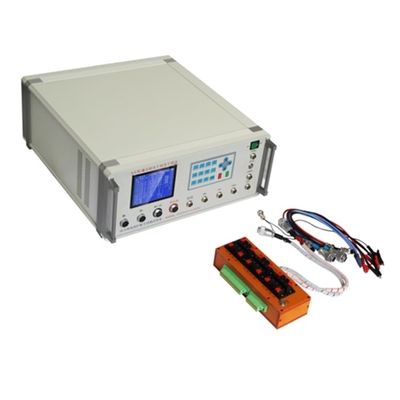

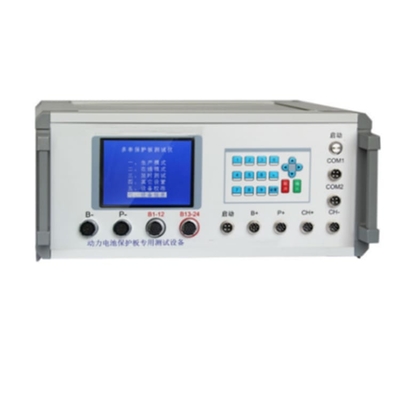

32 Series Lithium Battery Protective Plate BMS Testing Machine With Computer
Product Description
This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~24 series power battery protection board tester.
Product Specification
|
Parameter
|
Test Range
|
Accuracy
|
|
Number of Testing Series
|
1-32 series optional
|
|
|
Voltage Reference
|
Ternary Battery:3.8V
Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge/Overdischarge Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge Protection Current
|
0-50A
|
±0.1A
|
|
Over-discharge Protection Current
|
0-120A
|
±0.1A
|
|
Equilibrium Open Voltage
|
0.5-5V
|
±5mV
|
|
Equilibrium Real-time Current
|
0-200mA
|
±1mA
|
|
Overcurrent Protection Delay
|
0-15S
|
±1mS
|
|
Overcharge/Overdischarge Protection Delay
|
0-20S
|
±1mS
|
|
Single-section Self-consuming Power
|
0-500uA
|
±1uA
|
|
Internal Loop Resistance
|
0-500mΩ
|
±1mΩ
|
|
Short Circuit Protection (more than 6 series)
|
0-9999us
|
±1us
|
|
Supply Voltage
|
220VAC
|
|
|
Maximum Power
|
600W
|
|
|
Current Level
|
60-120A
|
|
|
Machine Size
|
420*430*220mm
|
