512 Channels Lithium Ion Battery Making Machine 85V 1-32 Series
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD $5000 - $50000 / line |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 line per month |
|
Detail Information |
|||
| Sticking Machine: | Aumatic Sticking Machine | Sorting Machine: | Automatic Sorting Machine |
|---|---|---|---|
| Checking Machine: | CCD Testing Machine | Spot Welder: | Automatic Spot Welding Machine |
| Test Machine: | Battery Performance Test System | Aging Machine: | Battery Aging Cabinet |
| Highlight: | 512 lithium ion battery making machine,85V lithium ion battery making machine,lead acid battery manufacturing machinery |
||
Product Description

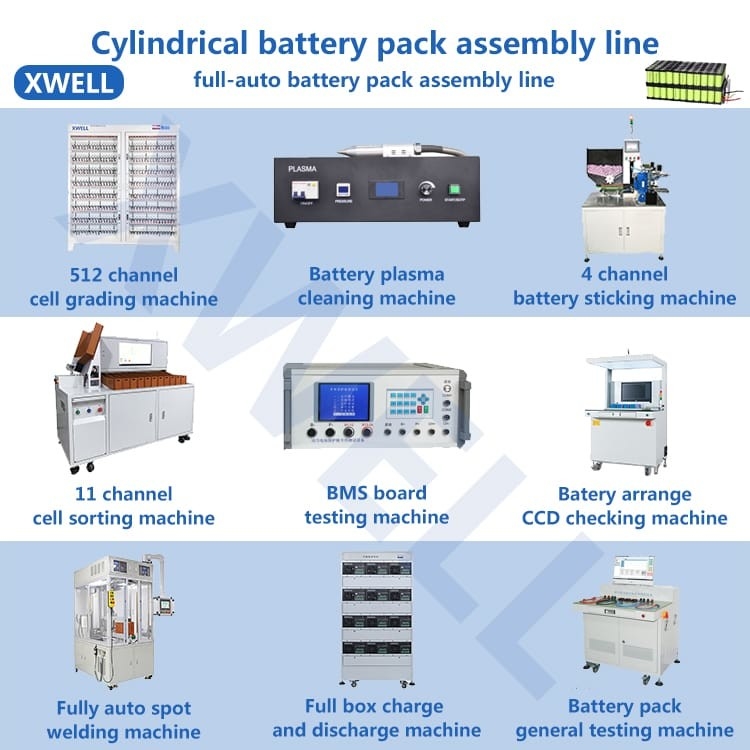

Lithium Ion Battery Pack Production Machine Assembly Line Making Machine
Battery pack mainly refers to the processing, assembly and packaging of lithium battery packs. The process of assembling lithium battery cells into groups is called PACK, which can be a single battery or a lithium battery pack connected in series and parallel. PACK includes battery pack, bus bar, flexible connection, protection board, outer packaging, output (including connector), barley paper, plastic bracket and other auxiliary materials.
| Product Name | Description |
| Battery cell tester | 1.Voltage and current:5V/1A,5V/2A,5V/3A,5V/6A,5V/10A,or others. 2.Channels:96,128,256,512,768 or others. |
| Auto Sticker Machine | Surface pad material: highland barley paper or PVC material |
| Auto Sorting Machine | 5/6/11/20 channels optional |
| CCD Tester | Target: 18650 battery positive and negative detection |
| Spot Welder |
Automatic/Manual Single side/Double sided Pneumatic/Electric/Profiled |
| BMS TESTER | The number of series is optional from 1-24,1-32 |
| Resistance Tester |
Scope of application: 1. Lithium ion, lithium polymer batteries and finished batteries; 2. Ni-MH and Ni-Cd batteries; 3. Lead-acid batteries and maintenance-free batteries; |
| Integrated Tester | 7.2V-85V test open circuit voltage, peak current 100A |
| PVC Shrinking Machine | Shrink film: POF.PVC |
| Code Printing Machine | Apply to any material. Print 1-6 lines of information. |
|
Aging Machine
|
30V 10A charging 20A discharging /70V 5A charging 10A discharging / 100V 10A Charging 20A Discharging/100V20A Charging 40A Discharging optional |
