Double Phase Lithium Ion Spot Welding Machine 3mm Pneumatic
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MDAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 700 - 1000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machine Type: | Capacitive Discharge Spot Welder | Source Voltage: | 380V , 50HZ Double Phase |
|---|---|---|---|
| Energy Storage Capacity: | 800J | Welding Ability: | 0.1-0.3mm Ni Tab, 1.2+1.2mm Stainless Steel Welding |
| Suitabe Battery: | 18650 26650 21700 32650 4680 | Operating: | Foot Switch And Pneumatic Model Can Be Chosen |
| Usage: | Used For NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 Cylindrical Battery Ni Tab 0.03 To 0.15mm Welding | Welding Time: | 0.0 - 3.0 S |
| Head Down Distance: | 15 Mm | Head Moving Driver: | By Pneumatic |
| Size: | 800 * 580 * 1348 Mm | Weight: | 40 Kg |
| Highlight: | Double Phase lithium ion spot welding machine,380V lithium ion spot welding machine,pneumatic battery tab welding machine |
||
Product Description
Capacitive Discharge Spot Welder For Battery Tab 0.3mm
Product Description
Cylindrical lithium battery tab spot welding machine.
This machine designed according to the needs of the world to produce high-end nickel-cadmium, nickel-metal hydride, and lithium batteries . It is used for welding (single pin welding) of the negative electrode shell and the tab of the cylindrical battery.
Product Features

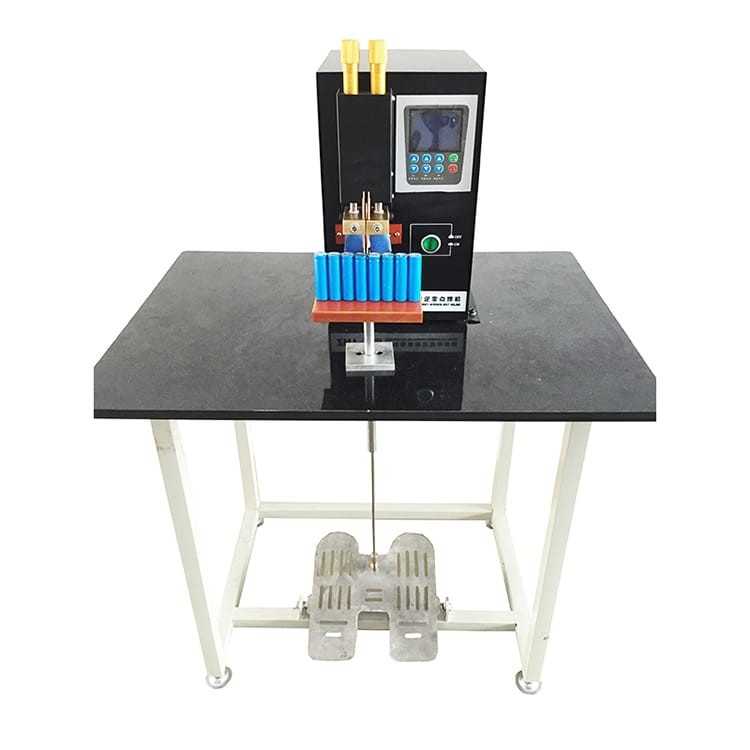

1 This DC spot welding machine has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Foot spot welding machine without air supply but need with desk shipping together.
2 This DC double needle spot welding machine is specifically designed for professional Li-on Battery Research. It is mainly used for Welding pcb for mobile phone battery pack and EV battery pack for battery and Nickle tab weld.
Product Specification
| Model | Capacitive Discharge Spot Welder |
| Source voltage | 380V , 50HZ Double Phase |
| Energy storage capacity | 800J |
| Welding ability | 0.1-0.3mm Ni tab, 1.2+1.2mm stainless steel welding |
| Warranty | One year limited and lifetime support |
| Scope of application |
18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding |
| Advantages |
1 Allow independent adjustment for pressure 2 Ensure consistent welding pressure 3 Fully eliminates the phenomenon of low voltage or condensation occurred to lithium batteries after welding 4 Homogeneous welding spot, small spark, and no black spots |
| Welding stroke | 10mm |
| Electrode arm distance | 90-100mm |
| Electrode pressure | 160-500N |
| Weight | 100kg |
