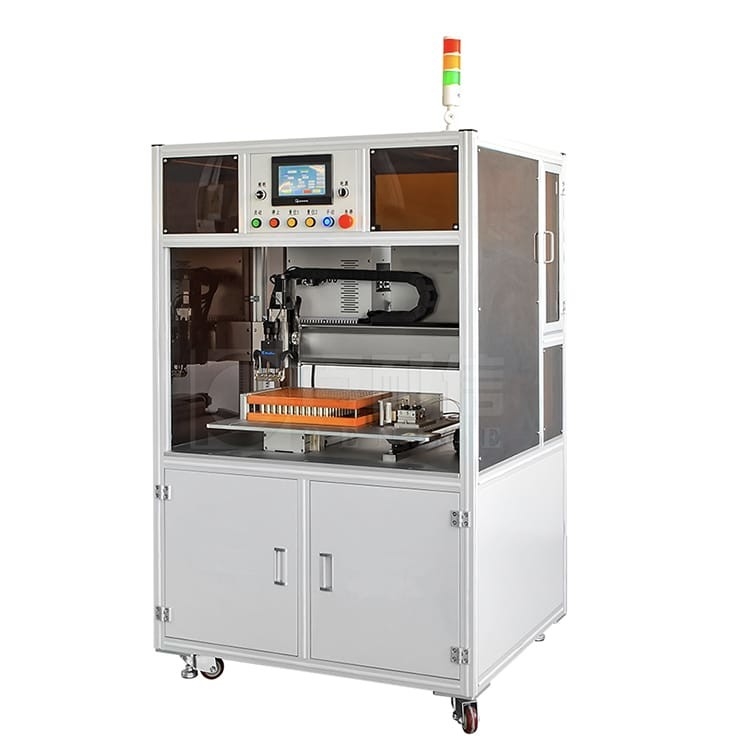

18650 Lithium Battery Spot Welding Machine , Single Side EV Car Li Ion Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Type: | Single Welder Automatic | Welding Power Supply: | 5000A Or 8000A Or 10000A Optional |
|---|---|---|---|
| X Y Axis Stoke: | 400 Mm * 400 Mm | Maximum Speed Of Motor Drive: | 300-1000 Mm/s |
| Electric Current: | DC | Welding Mode: | Inverter DC |
| Spot Welding Speed: | 0.35 S / Spot; 2800 Pcs/hour | Max Bearing Weight Of Y-axis: | 35KG |
| Max Load Electric Cores: | X Direction: 26; Y Direction: 26 | Power: | 4000 W |
| Highlight: | 18650 Lithium Battery Spot Welding Machine,EV Lithium Battery Spot Welding Machine,Single Side li ion welder |
||
Product Description
Automatic Single Side Battery Spot Welding Machine Welder For 18650 Cylindrical Battery Pack For EV Car Battery
Product Description
Spot welding machine has stable performance, can be used in various battery types and multiple battery pack processing, convenient and fast fixture replacement, beautiful appearance, all aluminum alloy body.
Product Features
1. Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2. Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3. Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6. The welding current will rise with the power on time to ensure the welding effect.
7. Stable control system
8. High configuration regulating device
9. High precision working procedure
10. High cost performance of products
Product Advantages
1. High stablity
2. Strong generalty
3. Production control
4. Long maintenance
5. Efficient and precise
6. Welding pulse width is adjustable, welding machine is firm and spatter is small, welding spot is not colored.
7. 7 Inch Touch screen, more convenient operation, more clear display
8. Three file programming modes, manual input, array and CAD DXF schema import, simple and fast response to various complex program editing
9. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of the temperature of spot welding needle on the welding quality.
10. It can store 99 groups of files, which are easy to call and do not need complicated wiring and shunting process.
11. One-button calibration function for whole deviation of solder joint, which can be used to calibrate point deviation caused by needle replacement or other reasons.
12. Spot welding efficiency is higher, welding speed per spot is less than 0.35S (according to different speed of the selected welding machine), single side spot welding machine can reach 2800 cores per hour.
13. The core parts are imported from Japan and Taiwan. The accuracy, stability and service life of the machine are more than twice that of other parts made in China.
14. Welding automatic alarm and stop function, after clearing the fault can continue spot welding
15. Machine with power cut or breakpoint continue function, can manually adjust any position for spot welding
16. Welding machine can be optional, according to different requirements of customers, different welding machines can be selected to effectively meet customer needs.
Product Specification
| Model | MD-ASW |
| X-axis travel | 400mm |
| Y-axis travel | 400mm |
| Spot welding speed | 0.5s / point; 1800pcs / h |
| Maximum speed of motor drive | 300-1000 mm/s |
| Number of groups for storing files | 99 groups |
| Operating system | Embedded system + man-machine screen |
| Transmission | Stepper + imported precision linear guide (optional servo + screw) |
| Power supply | Single-phase 220V ± 10% / 50Hz ± 10% |
| Power | <1500w |
| Air supply | 0.2 ~ 0.6Mpa |
| Weight | 200KG |
| Dimensions | About 900mm*900mm*1750mm |
Product Application
Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

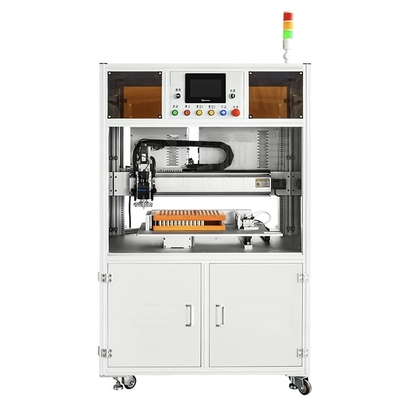

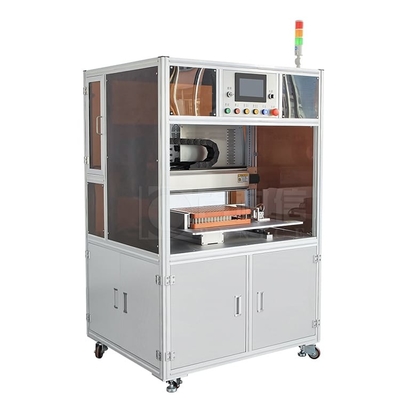

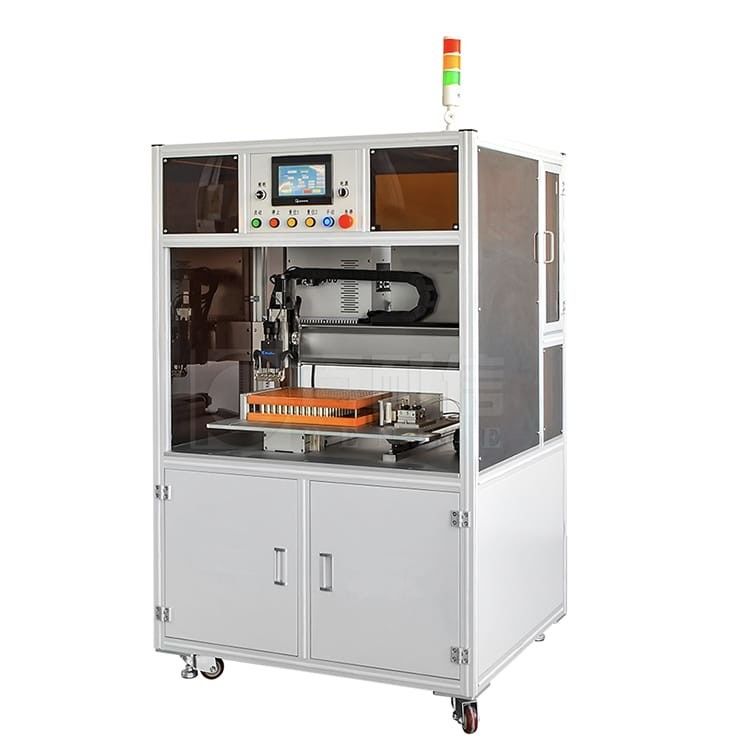

Battery spot welder details
