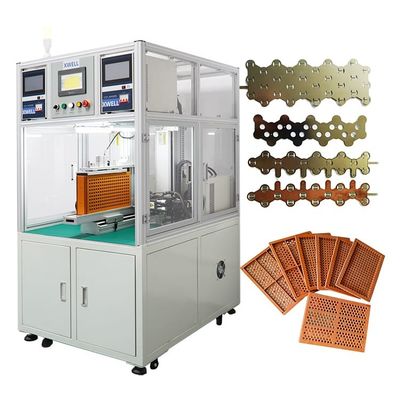

400pcs Lithium Battery Spot Welding Machine Double Head For 18650 Batteries
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Type: | Battery Double Side Automatic Spot Welding Machine | Spot Mode: | Single Spot, Double Spot, Triple Spot Mode |
|---|---|---|---|
| Welding Ability: | 0.1mm-0.25mm Nickel Strip | Welding Pack Size: | 350(Y)*500(Z) Mm |
| Cell Support: | 400pcs (standard 18650 Lithium Battery) | Power Source: | 8000A Inverter Spot Welder / 6000A Transistor Power Supply |
| Efficiency: | 0.3 - 0.5 S / Spot | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| User Interface: | Embedded System + Man - Machine Screen | Drive Mode: | Step Motor And Precision Guide Rail |
| Highlight: | 400pcs Lithium Battery Spot Welding Machine,18650 Lithium Battery Spot Welding Machine,spot welder for 18650 lithium batteries |
||
Product Description
Double Head Auto Spot Lithium Battery Spot Welding Machine For Battery Pack Welding
Product Description
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.
Product Features
1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. High productivity: 0.35s/spot
8. Can be matched with the production line of lithium battery group.
9. Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
10. Can store dozens process of different battery packs product, switching products without re-setting parameters.
11. Can match a variety brand of spot welders.
Product Advantages
1. Welding stroke can be customized
2. Suitable for various kinds of battery pack
3. High speed welding
4. 7-inch touch screen, more convenient operation, clearer display
5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.
6. Can store up to 999 groups of files, the file issimple to call,
does not require complicated line changing process
7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the solder pin or other reasons
8. Electric or pneumatic spot welding machine is optional
Product Specification
| Name | Qty |
| X-axis servo motor | 1PCS |
| Y-axis servo motor | 2PCS |
| Z-axis servo motor | 2PCS |
| X-axis moudle | 1PCS |
| Y-axis moudle | 2PCS |
| Z-axis welding head moudle | 2PCS |
| Ballscrew | 5sets |
| Sliding block | 8sets |
| Welding host | 2 sets |
| Touch screen | 1PCS |
| USB data import system | 1set |
| PLC | 1PCS |
| Welding head | 2sets |
| Clamping mechanism | 1 set |
| Pneumatic element | 1set |
| SMPS | 1PCS |
| SMPS | 1PCS |
| Welding needle cooling fan | 2PCS |
| Machining parts | 1 batch |
| Control system | 1set |
| Machine frame | 1set |
| Alarm system | 1set |
Product Application
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
