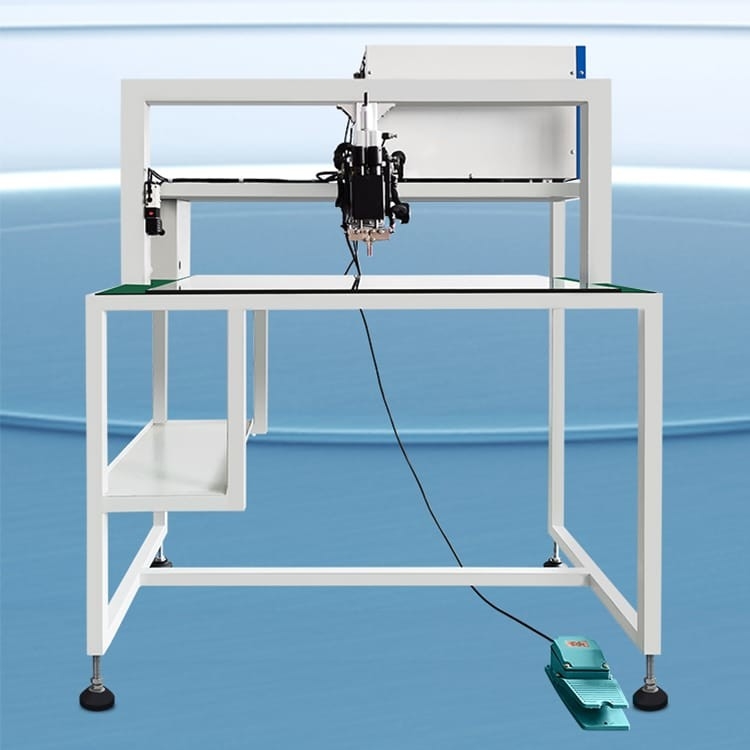

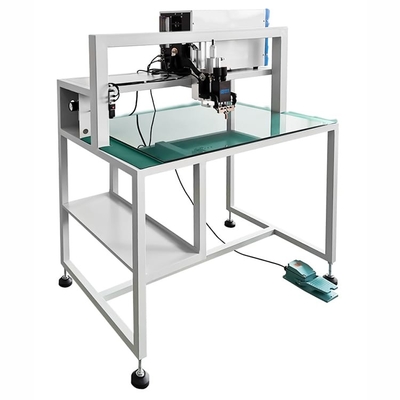

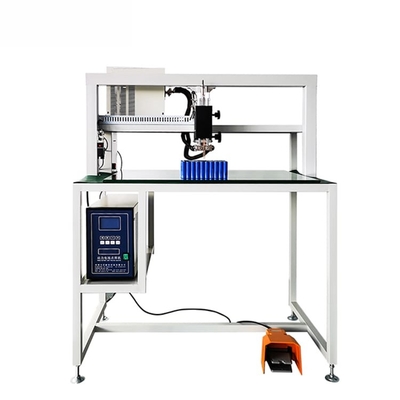

High Precision Lithium Ion Battery Spot Welder 6600uF For Solar Light Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1000 - 3000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model Number: | MD-MND5000 | Welding Pulse Number: | 9 Sets Of Pulses |
|---|---|---|---|
| Welding Mode: | Normal / Continuous | Welding Current: | 5000A (800A-5000A Adjustable) |
| Weld Thickness: | Maximum Thickness Of Parallel Welding: 0.03mm~0.5mm | Welding Control Mode: | Constant Current Welding |
| Cooling: | Air Cooling | Welding Time: | 0-99ms |
| Weight: | 60KG | Dimension: | 800L X 600W X 1200Hmm |
| Highlight: | 6600uF lithium ion battery spot welder,Solar lithium ion battery spot welder,nickel spot welder |
||
Product Description
High Precision Manual DC Output Spot Welding Machine For Solar Light Battery
Product Description
High frequency inverter control of 4kHz is conducive to high-speed and high-quality welding control.
The two-stage power on function is adopted to overcome the coating problem of welding workpiece and adapt to various process requirements.
It has the function of slow current rise and slow current drop, which is conducive to inhibiting the spatter phenomenon in welding
The switching of 8 kinds of welding specifications is conducive to the rapid transformation of welding parameters according to different welding requirements.
A variety of welding information and welding parameters are displayed in the blue light lcd20x4 line LCD, which is convenient for the confirmation of welding results.
It has the function of two-stage current monitoring and comparison, alarm for abnormal welding, compare the welding results with the parameters of the equipment, and judge whether it exceeds the set value, then judge whether the output is normal (go) or abnormal (GN) display and signal.
Product Features
1. DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .
2. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
3. LCD display.
4. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
5. Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.
6. The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.
7. Double pulse can reduce welding spatter, effectively improve the quality of welding.
8. Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.
9. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.
Product Specification
| Model | MD-MND5000 |
| Transformer maximum output power | 25KVA |
| Secondary side maximum welding current | 5000A |
| DC energy storage capacity | 6600uF |
| Welding pulse number | 9 sets of pulses |
| Welding voltage | 5v-330v adjustable, precision 0.5V |
| Welding time | 0.1ms-5.0ms adjustable, precision 0.1ms |
| Welding mode | Normal / continuous |
| Input frequency | AC 220V±10% 50Hz±2Hz |
| Maximum working pressure | 5KG |
| Weight | 60KG |
| Weld thickness | Maximum thickness of parallel welding:0.03mm~0.5mm ,Multiple welding sheet |
Product Application
With the corresponding fixture, the machine can weld 18650, 21700,26650, 32650,32700 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Detail
