Ebike Lithium Battery Spot Welder Inverter DC Mode 2800pcs / Hour
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Type: | Single Welder Automatic | Electric Current: | DC |
|---|---|---|---|
| Welding Mode: | Inverter DC | Welding Current: | 5000A Or 8000A Optional |
| Spot Welding Speed: | 0.35 S / Spot; 2800 Pcs/hour | X Y Axis Stoke: | 400 Mm / 400 Mm |
| Flip Angle: | 180 ℃ | Max Bearing Weight Of Y-axis: | 35KG |
| Max Load Electric Cores: | X Direction: 26; Y Direction: 26 | Power: | 4000 W |
| Highlight: | Inverter DC lithium battery spot welder,2800pcs / hour lithium battery spot welder,ebike battery spot welder |
||
Product Description

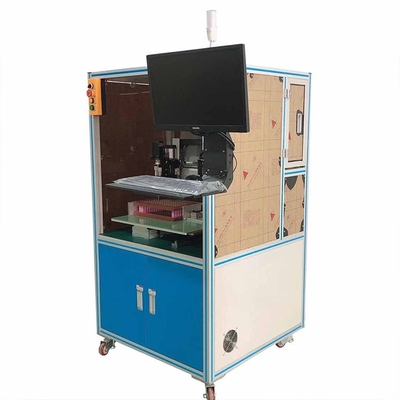

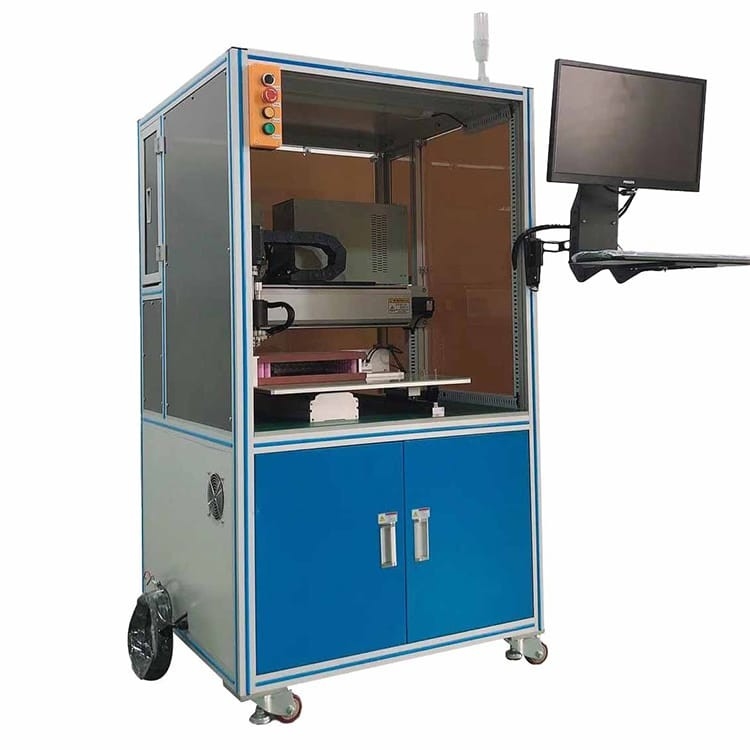

Computer Software Single Side Automatic Spot Welding Machine For EV Bike Battery Making
Product Description
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
1. Support break point start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.
Product Features
1. Induce load voltage, control voltage by feedback, and realize high quality welding.
2. Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.
3. Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal.
(Welding time controlled in microseconds, continuous output mode)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.
6. The welding current rises with the time of electrification to ensure the welding effect.
Product Advantages
1.Function:Automatic welding machine for battery pack
2.Applied range:For Cylinderical cell battery pack
3.Suitable nickel thickness: 0.1mm-0.3mm
4.Spot welding effective area: X-axis 400mm, Y-axis 400mm
Product Specification
| Power Supply | AC 220V±10% 50Hz |
| Electric Current | DC |
| Welding Mode | Inverter DC |
| Welding Current | 5000A or 8000A optional |
| Power Form | Automatic |
| Y-axis Travel | 400mm |
| X-axis Travel | 500mm |
| Spot Welding Speed | 0.35s/point; 2800pcs / hour |
| Fast Speed of Motor Drive | 1000mm/s |
| Number of Cores Loaded |
X direction: 26 Y direction: 26 (standard:18650 cell) |
| Number of file groups that can be stored | 99 group |

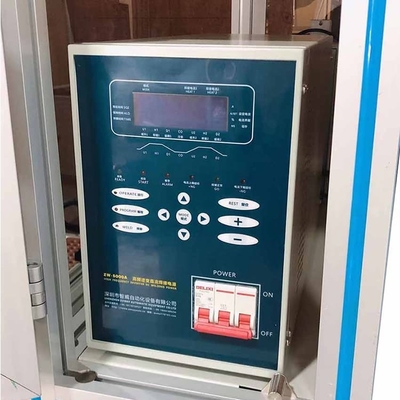

| Operating System | Embedded system + man machine interface |
| Transmission mode | Stepping + imported precision linear guide rail, optional servo + screw rod) |
| Equipment air pressure | 0.4-0.7Mpa |
| Weight | 200kg |
| Size | 900*900*1750mm |
Product Application
With the corresponding fixture, MD-ASW can weld 18650, 21700,26650, 32650 and other cylindrical batteries and etc.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack).
