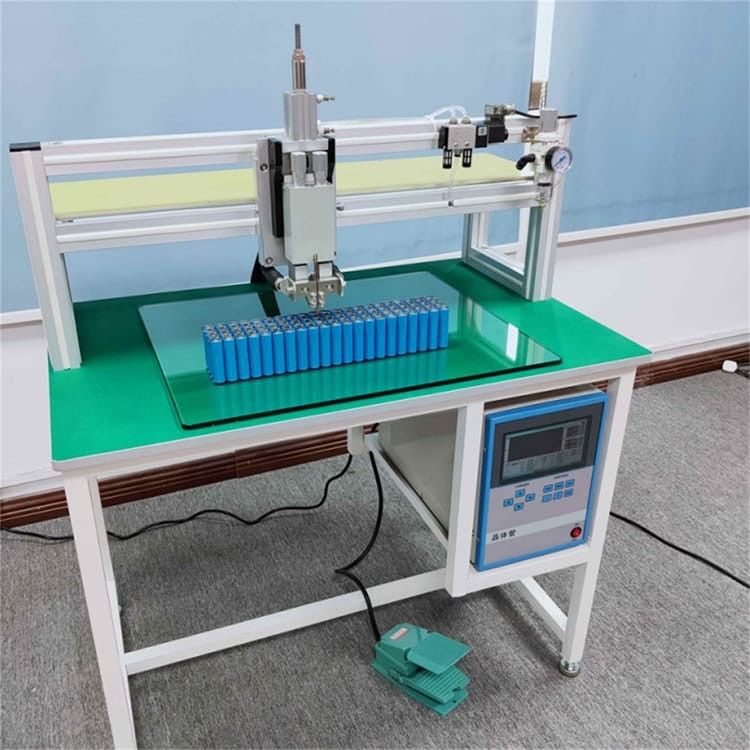

Inverter DC Lithium Battery Spot Welding Machine For Pure Nickel Welding

Brand Name: XWELL
Model Number: MD-MND5000
MOQ: 1pcs
Price: USD 1000 - 3000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model Number:
MD-MND5000
Inverter Frequency (kHz):
4KHZ
Maximum Output Short Circuit Current:
5000A (800A-5000A Adjustable)
Welding Thickness:
Maximum Thickness Of Parallel Welding: 0.03mm~0.5mm
Welding Control Mode:
Constant Current Welding
Slow Rise And Slow Drop Of Current:
It Has The Function Of Current Rising And Dropping Slowly
Cooling:
Air Cooling
Welding Time:
0-99ms
Weight:
60KG
Dimension:
800L X 600W X 1200Hmm
Supply Ability:
100 pcs per month
Highlight:

Inverter Lithium Battery Spot Welding Machine

,

Nickel Lithium Battery Spot Welding Machine

,

battery tab spot welding machine

Product Description

Inverter DC Spot Welding Machine Suitable For Pure Nickel Welding


Product Description


The equipment includes inverter, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.
The spot welding machine is widely used, and the welding transformer has a small volume and a large output energy.


Product Features


1. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
2. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
3. Double pulse can reduce welding spatter, effectively improve the quality of welding.
4. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.


Product Specification



Number Parameter item MD-MND5000
1 Welding current 5000A (800A-5000A Adjustable)
2 Load duration rate 20%
3 Welding control mode Constant current welding
4 Inverter frequency (kHz) 4KHZ
5 No load voltage 10.8V
6 Slow rise and slow drop of current It has the function of current rising and dropping slowly
7 Welding specification 8 groups
8 Input voltage AC 380V±10% 50/60Hz or 220V±10% 50/60Hz


Product Application


Applicable to electric vehicle battery pack, street lamp battery pack, automobile battery module, balance vehicle battery pack, scooter battery pack, mobile power supply, starting battery pack module, power tool battery pack, notebook battery pack, various electronic products and other battery combinations!



Detail



Inverter DC Lithium Battery Spot Welding Machine For Pure Nickel Welding 0Inverter DC Lithium Battery Spot Welding Machine For Pure Nickel Welding 1Inverter DC Lithium Battery Spot Welding Machine For Pure Nickel Welding 2
