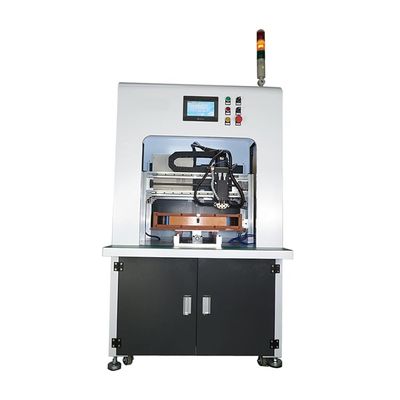

Single Side Lithium Battery Spot Welding Machine For 18650 Batteries 8000A
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Type: | Single Welder Automatic | Max Welding Current: | DC Inverter 5000A 8000A |
|---|---|---|---|
| Welding Material: | Nickel, Nickel-Plated Steel Strip Link | Spot Welding Speed: | 0.35 S / Spot; 2800 Pcs/hour |
| X Y Axis Stoke: | 400 Mm / 400 Mm | Flip Angle: | 180 ℃ |
| Electrode Diameter: | ∮1.8-6.0mm Optional | Max Bearing Weight Of Y-axis: | 35KG |
| Max Load Electric Cores: | X Direction: 26; Y Direction: 26 | Power: | 4000 W |
| Highlight: | Automatic Lithium Battery Spot Welding Machine,8000A Lithium Battery Spot Welding Machine,spot welder for 18650 lithium batteries |
||
Product Description
Single Side Spot Welding Machine For 18650 Cylindrical Battery For Energy Storage Battery
Product Description
Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.
Product Features
1. Embedded industrial control module control, intelligent man-machine interface, simple and easy to understand;
2. Imported servo motors and precise linear module orientation ensure accurate welding, stable displacement and long service life;
3. Unique function of automatic turning and head rotation ensures precise alignment of welding displacement, considerations and good practical effect.
4. Program settings support arbitrary lattice and standard lattice modes, and can store 99 groups of programs without one-to-one pairing.
5. The output of welding power source is stable, with current output monitoring, false welding leakage alarm function, good welding consistency, no bad welding.
Product Advantages
1. Touch screen display, more convenient operation and clearer display.
2. Three file programming modes, manual input, array, CAD DXF drawing import, simple and fast response to various complex program editing.
3. The welding head has the function of air cooling or water cooling, which can effectively reduce the impact of spot welding needle temperature on welding quality. 4. It can store up to 99 groups of files, which is easy to use and does not need complicated process of line changing and machine adjusting.
5. The spot welding program of A side and B side of fixture can be switched.
Product Specification
|
Power Supply |
AC 220V/380V±10% 50Hz±2Hz |
|
Electric Current |
DC |
|
Welding Mode |
Inverter DC |
|
Power Form |
Automatic |
|
Welding Objects |
Sheet metal |
|
Butt Welding Thickness |
1mm +1mm |
|
Flat Welding Thickness |
0.03-0.5mm |
|
Output High Power |
5000W |
|
Energy Storage Capacitor |
10000uf |
|
Output Large Short Circuit Current |
8000A |
|
Prewelding Voltage |
80.0V-330V adjustable, accuracy 0.5V |
|
Welding Time |
1.0ms-20.0ms adjustable, accuracy 0.1ms |
|
Outline Size |
350Lx180Wx330H (unit: mm) |
|
Y-axis Travel |
500mm |
|
X-axis Travel |
400mm |
|
Spot Welding Speed |
0.35s/point; 2800pcs / hour |
|
Fast Speed of Motor Drive |
1000mm/s |
|
Number of Cores Loaded |
X direction: 26 Y direction: 26 |
|
Number of file groups that can be stored |
99 group |
|
Operating System |
Embedded system + man machine interface |
Product Application
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

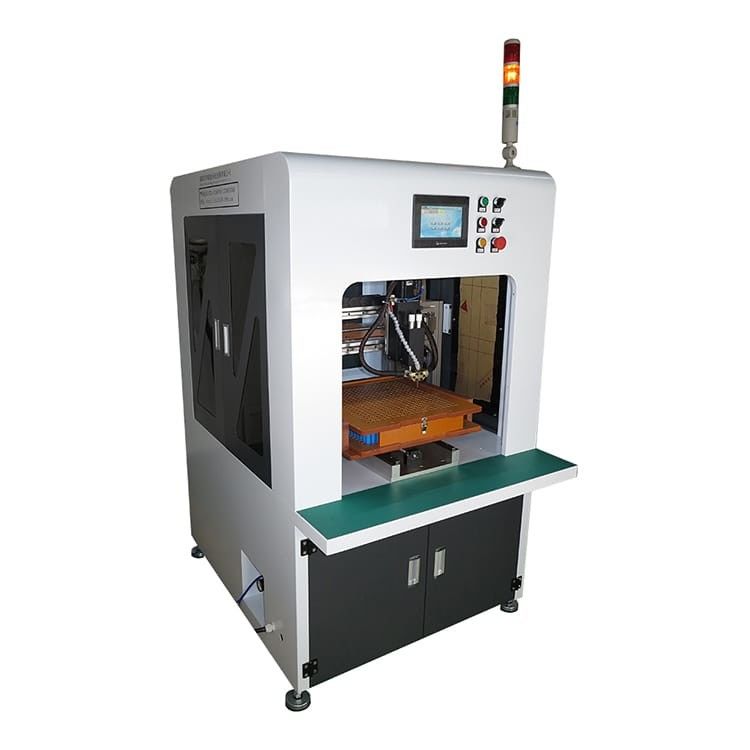

Cylindrical battery pack welding machine details
