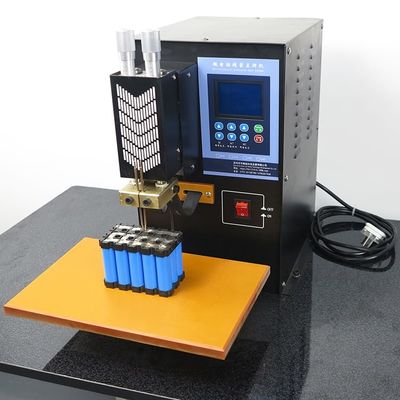

Battery Tab Li Ion Spot Welder Pneumatic Moving Microcomputer Control
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MDAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 700 - 1000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | Manual Spot Welding Machine | Brand: | XWELL NEW ENERGY |
|---|---|---|---|
| Power Supply: | AC 110V/220V, 50/60HZ | Operating: | Foot Switch And Pneumatic Model Can Be Chosen |
| Usage: | Used For NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 Cylindrical Battery Ni Tab 0.03 To 0.15mm Welding | Warranty: | One Year Limited And Lifetime Support |
| Welding Current: | 00 - 99 | Welding Time: | 0.0 - 3.0 S |
| Head Down Distance: | 15 Mm | Head Moving Driver: | By Pneumatic |
| Size: | 800 * 580 * 1348 Mm | Weight: | 40 Kg |
| Highlight: | Pneumatic battery tab spot welder,Microcomputer li ion spot welder,Pneumatic li ion spot welder |
||
Product Description
Lithium Battery Tab Busbar Link Flex Nickel Strip Spot Welding Machine
Product Description
This Spot welding machine mainly used for 18650 battery pack tab welding, it can weld Nickel tab thickness from 0.05-0.25mm. You can also choose our other model according to your tab Thickness.
Dual pulse welding, the first pulse is used to the workpiece surface coating and oxide removal, and make the contact place in welding electrode produce slight deformation, improve the effective contact area, the second pulse is used to ontology metal welding, can effectively promote the quality of welding and reducing welding spatter.
Product Features
1. Microcomputer digital control, precise and adjustable welding energy, and can memorize 10 welding specifications to meet a variety of parametric welding requirements.
2. Using advanced AC inverters technology and precise control head, the single-pulse to multi-pulse welding function can be realized. The welding power can be continuously increased, which is suitable for high-quality welding of thicker plates or workpieces.
3. It has the function of automatic alarm without welding, eliminating misjudgment of spot welding, and has the function of self-protection such as overheating of power supply and fault warning.
4. The welding power source has strong anti-interference ability, precise welding time control, stable energy output, good welding effect and high efficiency.
5. Welding static pressure ensures that the welded joints are in contact with each other. At the same time, it has the function of delayed pre-pressing and delayed pre-welding. There is no spark spatter in the welding, and the welding surface is clean and beautiful.
Product Specification
| Model | Manual Spot Welding Machine |
| Source voltage | AC 110V/220V, 50/60HZ |
| Max Power | 3KVA |
| Warranty | One year limited and lifetime support |
| Advantages |
1 Beautiful shape, lighter weight, smaller volume, simple operation 2 Good welding result with small spark, no black, and steady welding current. 3 Digital display setting, Flash storage technology 4 Microcomputer control High frequency precision spot welding machine |
| Welding current | 00-99% |
| Applicable scope | Used for NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 cylindrical battery Ni tab 0.03 to 0.1mm welding |
| Net weight | 40kg |
| Package weight | About 60kg |
| Dimension(L*W*H) | 800*580*1348mm |
| Packing size(L*W*H) | 850*630*1450mm |
