Rotate Head Lithium Ion Battery Spot Welding Machine 2800 Pcs/Hour 10000uf
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Type: | Rotate Head Single Side Automatic | Current: | DC Inverter 5000A 8000A |
|---|---|---|---|
| Welding Objects: | Sheet Metal | Spot Welding Speed: | 0.35S/point; 2800 Pcs/hour |
| X Y Axis Stoke: | 400 Mm / 400 Mm | Flip Angle: | 180 ℃ |
| Electrode Diameter: | ∮1.8-6.0mm Optional | Max Bearing Weight Of Y-axis: | 35KG |
| Max Load Electric Cores: | X Direction: 26; Y Direction: 26 | Power: | 4000 W |
| Highlight: | 10000uf lithium spot welding machine,Lithium Ion Battery Spot Welding Machine,Rotate Head lithium spot welding machine |
||
Product Description

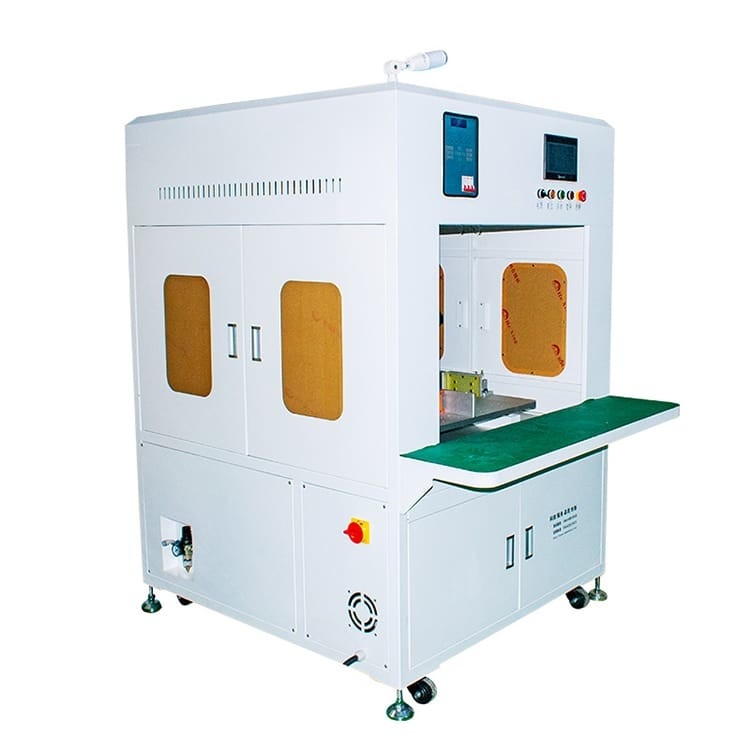

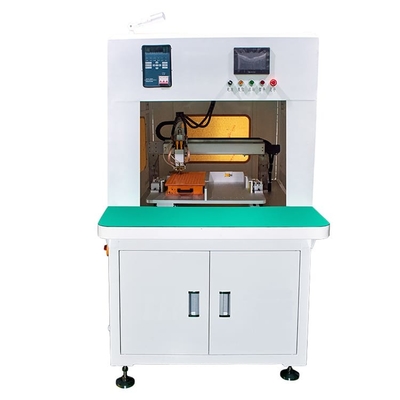

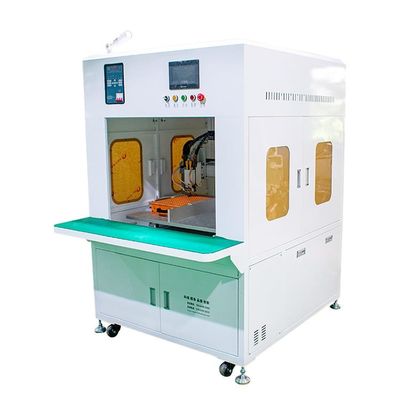

Automatic Rotary Welding Head Single Side Spot Welding Machine For Battery Pack For Solar Light Battery
Product Description
Photovoltaic, power batteries, lithium nickel hydride batteries and other batteries are connected with nickel alloy sheet, aluminum-nickel composite strip, wire and guide, household appliances parts and guide connection, hardware accessories, copper-silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.
Product Features
1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. Can be matched with the production line of lithium battery group.
8. Can store dozens process of different battery packs product, switching products without re-setting parameters.
9. Can match a variety brand of spot welders.
Product Advantages
1. Touch screen display, more convenient operation and clearer display
2. Three file programming modes, manual input, array, CAD DXF drawing import, simple and fast response to various complex program editing
3. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of spot welding needle temperature on welding quality
4. It can store up to 99 groups of files, which is easy to call and does not need complicated process of line changing and machine adjusting
5. The spot welding program of a side and B side of fixture can be switched.
Product Specification
|
Power Supply |
AC 220V/380V±10% 50Hz±2Hz |
|
Current |
DC |
|
Welding Mode |
Inverter DC |
|
Power Form |
Automatic |
|
Welding Objects |
Sheet metal |
|
Butt Welding Thickness |
1mm +1mm |
|
Flat Welding Thickness: |
0.03-0.5mm |
|
High Power Output |
5000W |
|
Energy Storage Capacitor |
10000uf |
|
Output Large Short Circuit Current |
8000A |
|
Prewelding Voltage |
80.0V-330V adjustable, accuracy 0.5V |
|
Welding Time |
1.0ms-20.0ms adjustable, accuracy 0.1ms |
|
Y-axis Travel |
400mm |
|
X-axis Travel |
400mm |
|
Spot Welding Speed |
0.35S/point; 2800 pcs/hour |
|
Speed of Motor Drive |
1000mm/S |
|
Number of Loaded Cores |
X Direction : 26 Y Directions : 26 |
|
Number of Storable File Groups |
99 group |
|
Operating System |
Embedded System + Man-Machine Screen |
|
Transmission Mode |
Taiwan TBI Precision Screw and Guide Stepping servo motor |
|
Power |
2000W |
|
Weight |
200kg |
|
Size |
900mmLx900mmWx1750mmH |
Product Application
Power Battery 18650 / 26650 series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, 18650 Battery Group, 26650 Battery Group, 32650 Battery Group, Electric Bicycle Battery, solar Street light, Ternary Lithium Ion battery, digital lithium ion battery, lithium iron phosphate battery, etc. .
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).

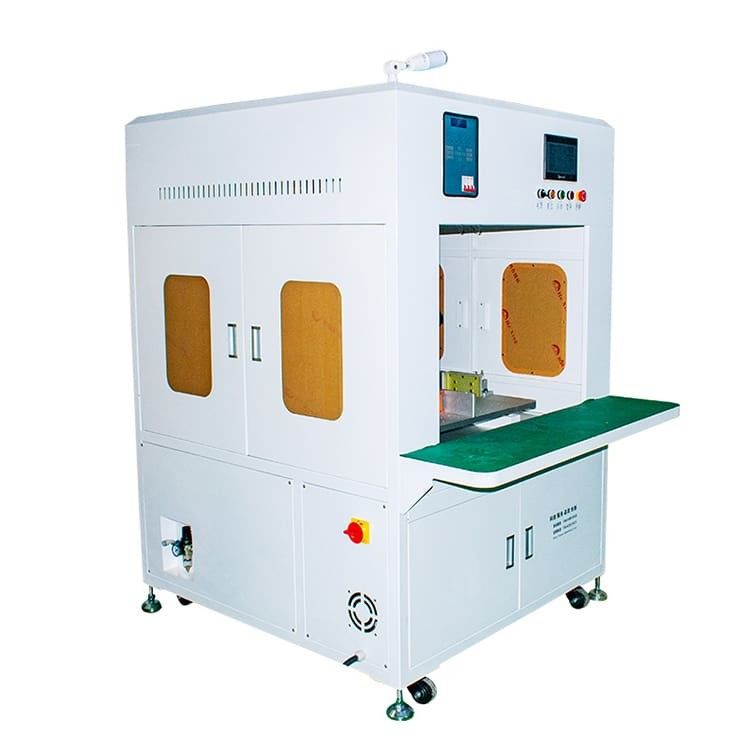

Battery spot welder details
Battery pack sample
