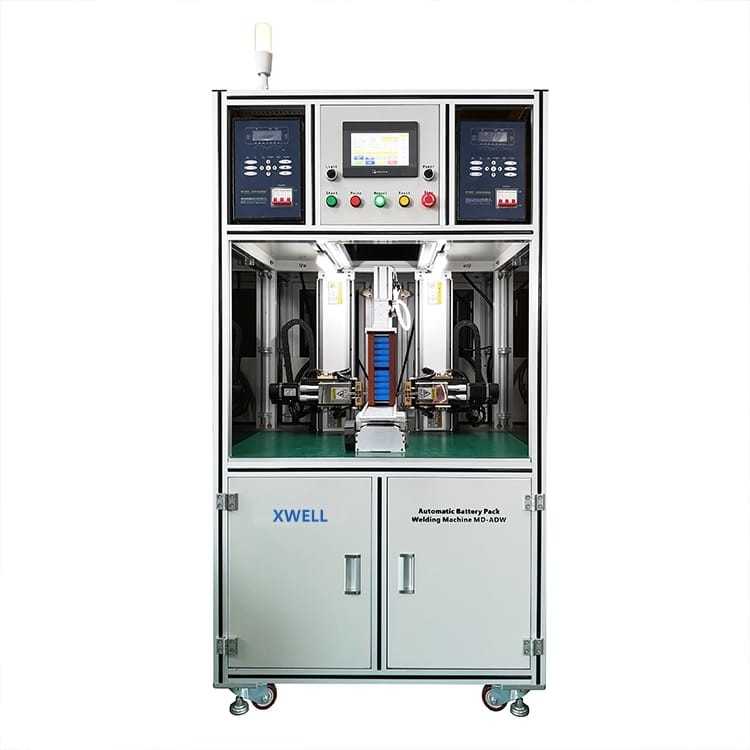

Double Side Lithium Cell Spot Welding Machine 8000A For 18650 Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | MD-ADW | Axis Travel: | 500 * 350 Mm Customizable |
|---|---|---|---|
| The Maximum Number Of Batteries Loaded: | 300pcs (standard 18650 Lithium Battery) | Nickel Welding Thickness: | 0.1mm-0.3mm |
| Head Number: | 2 Pcs | Power Source: | 8000A Inverter Spot Welder / 6000A Transistor Power Supply |
| Efficiency: | 3500pcs/h | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| User Interface: | Embedded System + Man - Machine Screen | Drive Mode: | Step Motor And Precision Guide Rail |
| Highlight: | 8000A lithium cell spot welding machine,18650 lithium cell spot welding machine,Double Side 18650 battery welding machine |
||
Product Description
Automatic 18650 lithium Welding Machine Double Side 8000A Electric Battery Pack Spot Welder
Product Description
The Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Product Features
1. Using 7 inch LCD touch screen and embedded industrial control intelligent operating system;
2. Top Quality servo motors and precise linear module ensure accurate welding, stable displacement and long service life;
3. Program settings support arbitrary dot matrix and standard array mode, function of CAD DXF mapping, storing 99 groups of programs;
4. Continuous starting, breakpoint starting, virtual welding, alarm of leak welding and repair welding.
5. Welding power supply has its own current monitoring function which can monitor the actual output current in real time.
6. Perfect design, light lifting and unloading of fixtures, good rigidity of motion structure and long-term stability of welding accuracy.
Product Advantages
1) Induce load voltage, control voltage by feedback, and realize high quality welding.
2) Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.
3) Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)
4) Easy to change from low current to high current, suitable for precision welding.
5) The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.
6) The welding current rises with the time of electrification to ensure the welding effect.
Product Specification
| Model | MD-ADW |
| Y-axis travel | 500mm |
| Z-axis travel | 350mm |
| Spot welding speed | 0.3s / point; 5000pcs / h |
| Maximum speed of motor drive | 1000mm/s |
| The maximum number of batteries loaded | 300pcs (standard 18650 lithium battery) |
| Number of groups for storing files | 99 groups |
| Operating system | Embedded system + man-machine screen |
| Transmission | Stepper + imported precision linear guide (optional servo + screw) |
| Power supply | Single-phase 220V ± 10% / 50Hz ± 10% |
| Air supply | 0.4 ~ 0.6Mpa |
| Weight | 350KG |
| Dimensions | 1100mm*900mm*1930mm |
Product Application
With the corresponding fixture, MD-ADW can weld 18650, 21700,26650, 32650 and other cylindrical batteries and etc.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)

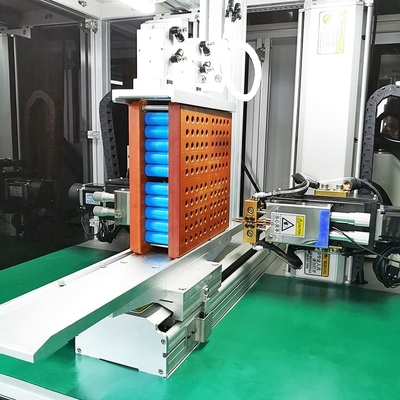

2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
