60HZ Lithium Battery Spot Welding Machine , Manual 32650 Battery Tab Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MDAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 700 - 1000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | Portable Spot Welding Machine | Brand: | XWELL |
|---|---|---|---|
| Power Supply: | AC 110V/220V, 50/60HZ | Operating: | Foot Switch And Pneumatic Model Can Be Chosen |
| Applicable Scope: | Used For NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 Cylindrical Battery Ni Tab 0.03 To 0.15mm Welding | Warranty: | One Year Limited And Lifetime Support |
| Welding Current: | 00 - 99 | Welding Time: | 0.0 - 3.0 S |
| Head Down Distance: | 15 Mm | Head Moving Driver: | By Pneumatic |
| Size: | 800 * 580 * 1348 Mm | Weight: | 40 Kg |
| Highlight: | 60HZ battery tab welder,32650 Lithium Battery Spot Welding Machine,Manual Lithium Battery Spot Welding Machine |
||
Product Description

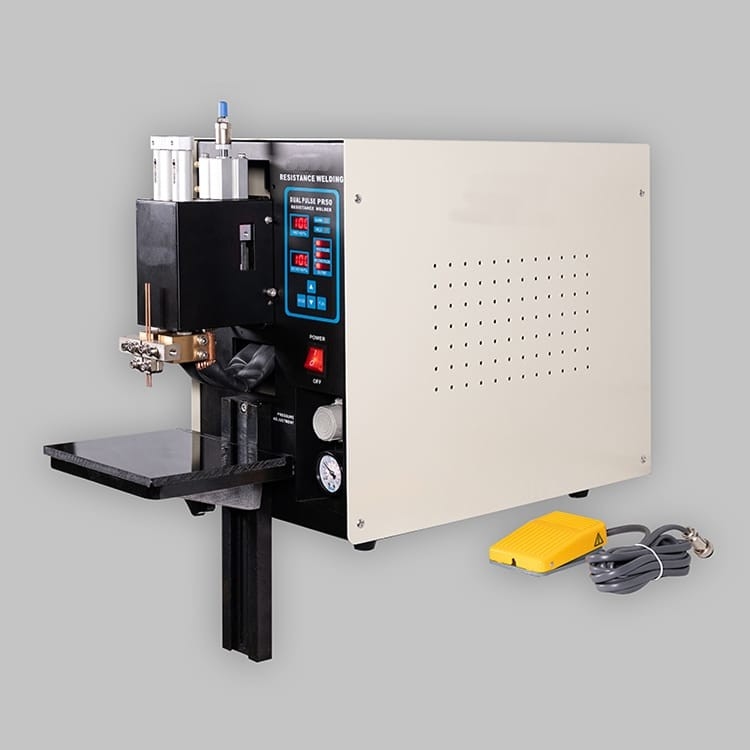

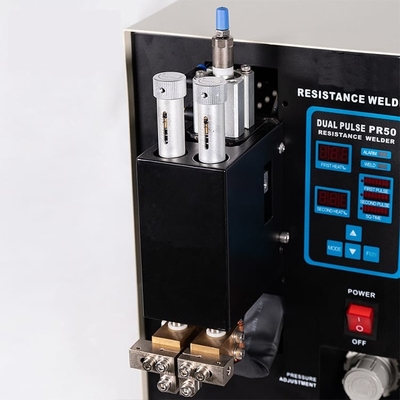

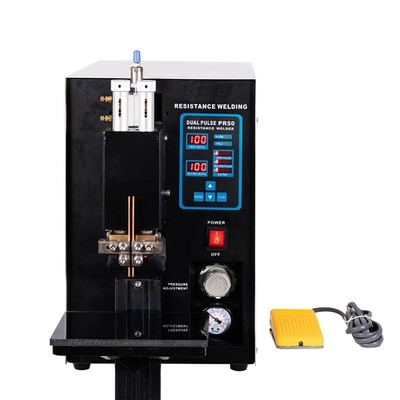

Manual Spot Battery Tab Welder Lithium Battery Spot Welding Machine
Product Description
The Spot Welder For Batteries has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Pedal Type spot welding machine without air supply but need with desk shipping together.
This kind battery spot welder is mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
XWELL System battery spot welder machine has different models according it’s welding ability. The DC Spot welder is suitable for Ni tab thickness less than 0.12mm, the AC model suitable for Ni tab thickness less than 0.15mm. DC 5000A model suitable for Ni tab less than 0.25mm. We can also supply high power spot welding machine can weld up to 1mm tab. Please contact with our engineers to get the most suitable machines for you.
Product Features
1. The welding current is dc, and there is no defect of discontinuous heating of the workpiece. The heat concentration improves the welding thermal efficiency, which is especially suitable for the welding of non-ferrous metal materials and some refractory materials. The welding process is stable and the welding quality is significantly improved. The electrode life was also extended.
2. The LCD shows a variety of content, and the graphics show the current working status, the friendly work interface, the welding pulse graphics to enhance the convenience of the debugging observation.
3. There are special fault diagnosis and alarm functions to deal with current disorder, monitoring value overlimit, voltage overlimit and other faults.
4. The inverter bridge adopts soft switch technology to reduce switch loss and electromagnetic interference.
5. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
6. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
7. Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.
8. The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.
9. Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.
10. Double pulse can reduce welding spatter, effectively improve the quality of welding.
11. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.
Product Specification
| Model | Portable Spot Welding Machine |
| Source voltage | AC 110V/220V, 50/60HZ |
| Max Power | 3KVA |
| Warranty | One year limited and lifetime support |
| Advantages |
1 Beautiful shape, lighter weight, smaller volume, simple operation 2 Good welding result with small spark, no black, and steady welding current. 3 Digital display setting, Flash storage technology 4 Microcomputer control High frequency precision spot welding machine |
| Welding current | 00-99% |
| Applicable scope | Used for NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 cylindrical battery Ni tab 0.03 to 0.15mm welding |
| Net weight | 4.5kg |
| Package weight | About 6kg |
| Dimension(L*W*H) | 250*180*200mm |
| Packing size(L*W*H) | 330*240*300MM |
Battery pack spot welding samples
Battery pack assembly line factory
