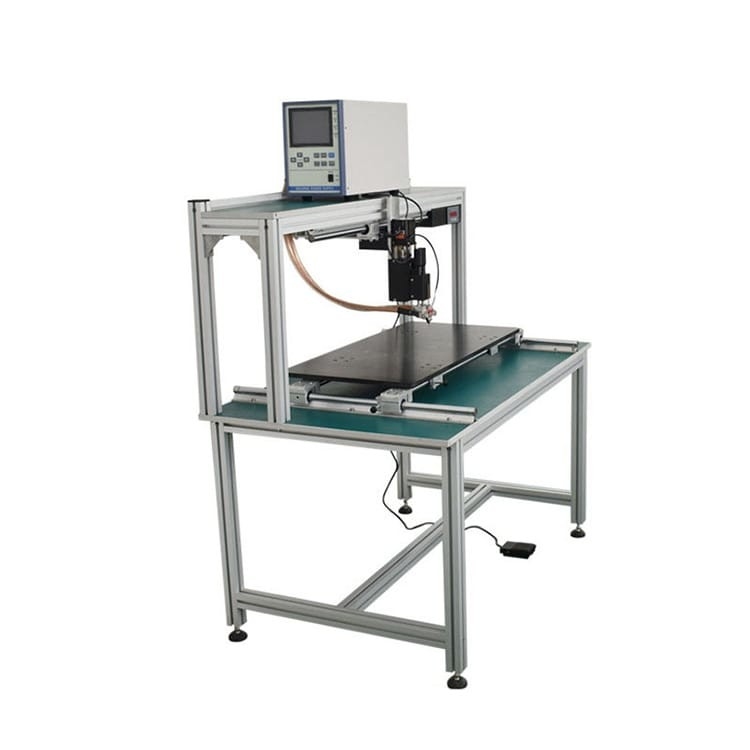

10000A Transistor Lithium Battery Spot Welding Machine For 18650 Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1000 - 3000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | MD-MND5000 | Nickel Thickness: | Nickel Thickness <=0.4mm(Groove) Nickel<=0.2mm |
|---|---|---|---|
| Drive Method: | Pneumatic Cylinder | Type: | Gantry Manual Pnematic |
| Input Power Supply: | AC 380 V / + 50 Hz | Max. Current: | 6000A 10000A |
| Cooling: | Air Cooling | Welding Time: | 0-99ms |
| Weight: | 60KG | Dimension: | 800L X 600W X 1200Hmm |
| Highlight: | Transistor Lithium Battery Spot Welding Machine,10000A Lithium Battery Spot Welding Machine,spot welder for 18650 battery |
||
Product Description
Transistor Precision Lithium Battery Spot Welding Machine 6000A 10000A 18650 32650 Battery Tab Spot Welder
Product Description
Functions of continuous setting of welding current and switching of eight sets of welding parameters in advance.
Function of welding detection. It can control the welding quality and ensure the welding quality.
Inverter welding equipment is developed for high quality welding industry. It has the function of slow current rising and falling and has two-stage power-on output function.
Used for welding of various welding materials and various welding process requirements.
Product Features
1. Load current check and electrostatic current control of switching mode are beneficial to high quality welding control.
2. 4KHz high-frequency modulation inverters control is conducive to high-speed response and high-quality welding control.
3. The application of two-stage electrification function is conducive to overcoming the coating problem of welded workpiece and adapting to various technological requirements.
4. Slow-up and slow-down function is conducive to restraining the splash phenomenon in welding and the switching of eight welding specifications is conducive to fast changing welding parameters according to different welding requirements.
5. It has the function of current monitoring. it will give an alarm after judging the value beyond the set value.
Product Specification
| Input power supply | 200-240VAC 50/60HZ |
| Max. Current | 6000A 10000A |
| Frequency | 125KHz |
| Nickel Thickness | Nickel thickness <=0.4mm(Groove) Nickel<=0.2mm |
| Cooling | Air Cooling |
| Welding Time | 0-99ms |
| Weight | 60KG |
| Dimension | 800*600*1200mm |
Product Application
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Detail
