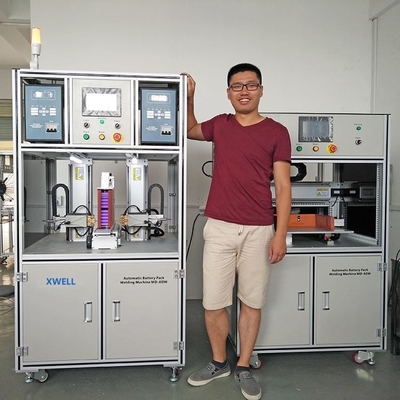

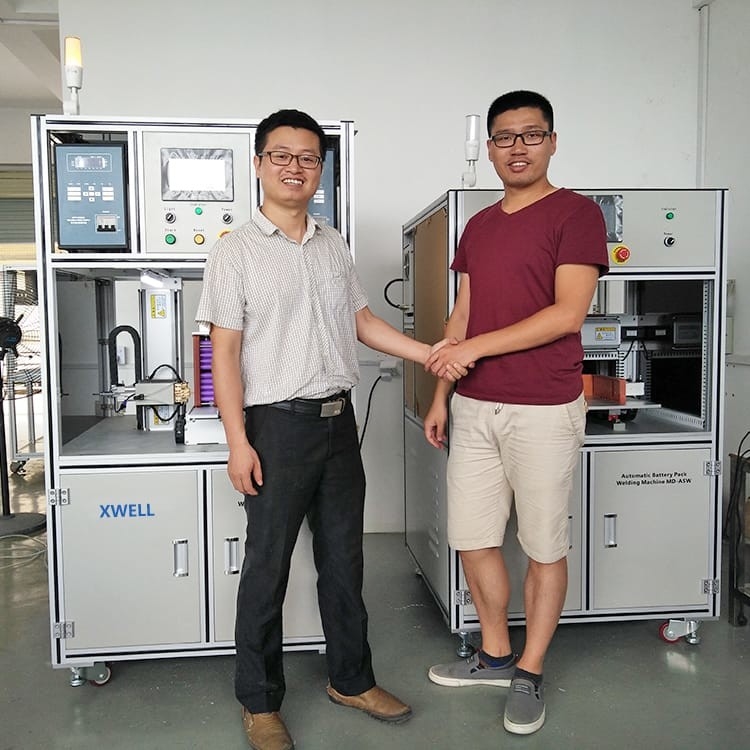

0.3mm Lithium Battery Spot Welding Machine , 350 Mm 18650 Battery Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | Double Side Welding | Welding Size: | 500 * 350 Mm Customizable |
|---|---|---|---|
| Support Cells Number: | About 760 18650 Cells | Nickel Welding Thickness: | 0.1mm-0.3mm |
| Head Number: | 2 Pcs | Power Source: | 8000A Inverter Spot Welder / 6000A Transistor Power Supply |
| Efficiency: | 3500pcs/h | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| Operating System: | Embedded System + Man - Machine Screen | Drive Mode: | Step Motor And Precision Guide Rail |
| Highlight: | 0.3mm Lithium Battery Spot Welding Machine,350 mm Lithium Battery Spot Welding Machine,18650 battery spot welder |
||
Product Description
Automatic 18650 21700 26650 32700 Double Sides Lithium Battery Spot Welding Machine for Lithium ion Battery
Product Description
This equipment is mainly used for double sides welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.
Product Features
1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
lithium battery packs spot welding.
7. Can be matched with the production line of lithium battery group.
8. Can store dozens process of different battery packs product, switching products without re-setting parameters.
Product Advantages
1) Induce load voltage, control voltage by feedback, and realize high quality welding.
2) Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.
3) Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)
4) Easy to change from low current to high current, suitable for precision welding.
5) The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.
6) The welding current rises with the time of electrification to ensure the welding effect."
Product Specification
Below is the specification of single side and double side spot welding machine.
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 1600pcs/h
|
0.5s/spot, 3500pcs/h
|
|
|
Welder Power Suppler
|

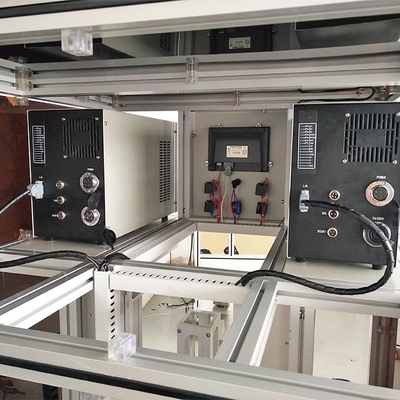

8000A Inverter Spot Welder/6000A Transistor Power Supply
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
400 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
