18650 Battery Spot Welding Machine 0.03-0.15 Mm Welding Thickness
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MDAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 700 - 1000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machine Type: | AC Pulse Spot Welder MD-MPAC | Operating: | Foot Switch And Pneumatic Model Can Be Chosen |
|---|---|---|---|
| Welding Thickness: | 0.03-0.15 Mm Ni Weld On Ni Or Metals | Power Supply: | 110V-240V With Transformer, Single Phase 50/60Hz |
| Usage: | Used For NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 Cylindrical Battery Ni Tab 0.05 To 0.2mm Welding | Pre-welding Current: | 00 - 99 |
| Welding Current: | 00 - 99 | Welding Time: | 0.0 - 3.0 S |
| Head Down Distance: | 15 Mm | Head Moving Driver: | By Pneumatic |
| Size: | 800 * 580 * 1348 Mm | Weight: | 40 Kg |
| Highlight: | 18650 battery spot welding machine,0.15 Mm 18650 battery spot welding machine,spot welder for lithium ion batteries |
||
Product Description
AC Power Supply Lithium Battery Spot Welding Machine For 18650 Battery Pack
Product Description

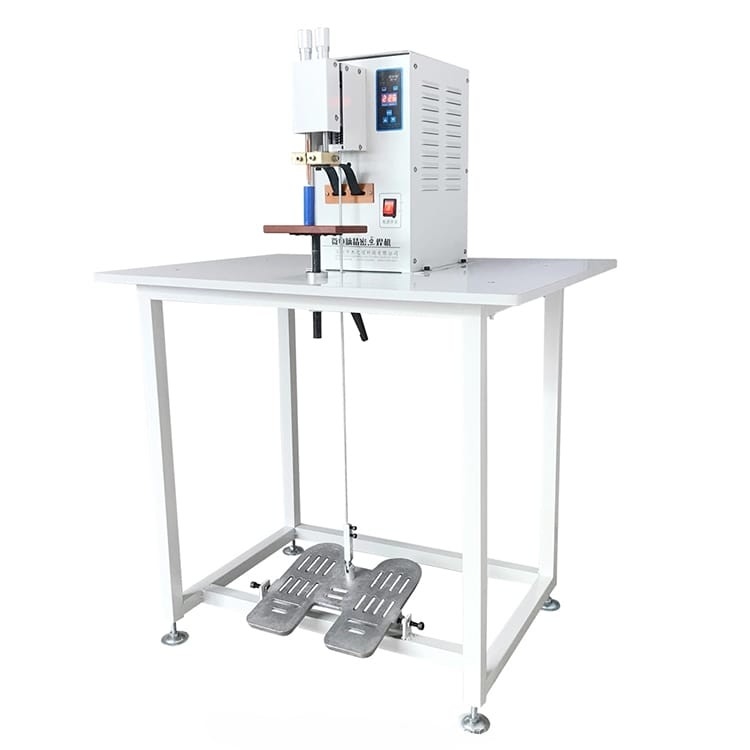

The AC spot welding machine has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Foot spot welding machine without air supply but need with desk shipping together.
This AC double needle spot welding machine is specifically designed for professional Li-on Battery Research. It is mainly used for Welding pcb for mobile phone battery pack and EV battery pack for battery and Nickle tab weld.
Product Features
1. The machine is controlled by microcomputer and CNC current adjust.
2. Use the differential and integral calculus to calculate the welding power,It allows the welder to have a higher accuracy.
3.Digital tube display, keyboard control, welding parameters flash storage.
4.Use dual pulse welding technology to make the welding more firmly.
5.The welding spark is small, The welding surfaces look more uniform, the surface is cleaner and aesthetically pleasing.
6.Can be general welding and continuous automatic welding, can set any number of consecutive welding
7.Prepress time, pressure protection time, rest time can be set and welding speed can be adjusted at will.
8.Large power, stable and reliable.
Product Specification
| Model | AC spot welding machine MD-MDAC |
| Power Supply | 110V-240V with transformer, Single Phase 50/60Hz |
| Max output power | 10KVA |
| Warranty | One year limited with lifetime support |
| Advantages |
1 Double pulse welding - pre welding and welding 2 Microcomputer control precision, Guarantee the evenness of each welding effect 3 Automatic count |
| Pre-welding current | 0-99A |
| Welding time | 0-30S |
| Welding current | 0-99A |
| Welding stroke | 25mm, the welding height can be adjusted |
| Operating | Foot switch and pneumatic model can be chosen |
| Control | The microcomputer chip control, LCD liquid crystal display, simple and precision |
| Welding thickness | 0.03-0.15 mm Ni weld on Ni or metals |
| Weight | 50kg |
| Dimension(L*W*H) |
Foot switch model with desk : 800*580*1100mm Pneumatic model : 400*370*220mm |
Spot welding machine details
Battery pack spot welding samples
