5kA Lithium Battery Spot Welding Machine , 26650 Lipo Spot Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Type: | MD-ASW Single Side Automatic | Head Troke: | 400 Mm * 400 Mm |
|---|---|---|---|
| Max Bearing Weight Of Y-axis: | 35KG | Max Load Electric Cores: | X Direction: 26; Y Direction: 26 |
| Y-axis Stroke: | 400 Mm | Driving Mode: | Stepper Servo Motor |
| Welding Current: | 5000A 8000A | Voltage: | 220V And 380V |
| Power: | 4000 W | ||
| Highlight: | 5kA Lithium Battery Spot Welding Machine,26650 Lithium Battery Spot Welding Machine,26650 lipo spot welder |
||
Product Description
Single Side Fully Automatic Electric Lithium Battery Spot Welding Machine For Cylindrical Battery Pack Welding
Product Description
MD-ASW with welding head rotation function, is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
The Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding machine, the efficiency and accuracy of welding have been greatly improved.
Product Features
1. Support break point start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 99 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.
Product Advantages
1. High stablity
2. Strong generalty
3. Production control
4. Long maintenance
5. Efficient and precise
6. Welding pulse width is adjustable, welding machine is firm and spatter is small, welding spot is not colored.
7. 7 Inch Touch screen, more convenient operation, more clear display
8. Three file programming modes, manual input, array and CAD DXF schema import, simple and fast response to various complex program editing
9. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of the temperature of spot welding needle on the welding quality.
10. It can store 99 groups of files, which are easy to call and do not need complicated wiring and shunting process.
11. One-button calibration function for whole deviation of solder joint, which can be used to calibrate point deviation caused by needle replacement or other reasons.
12. Spot welding efficiency is higher, welding speed per spot is less than 0.35S (according to different speed of the selected welding machine), single side spot welding machine can reach 2800 cores per hour.
13. The core parts are imported from Japan and Taiwan. The accuracy, stability and service life of the machine are more than twice that of other parts made in China.
14. Welding automatic alarm and stop function, after clearing the fault can continue spot welding
15. Machine with power cut or breakpoint continue function, can manually adjust any position for spot welding
16. Welding machine can be optional, according to different requirements of customers, different welding machines can be selected to effectively meet customer needs.
Product Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz |
| Air Source | 0.4-0.6 Mpa |
Product Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack).

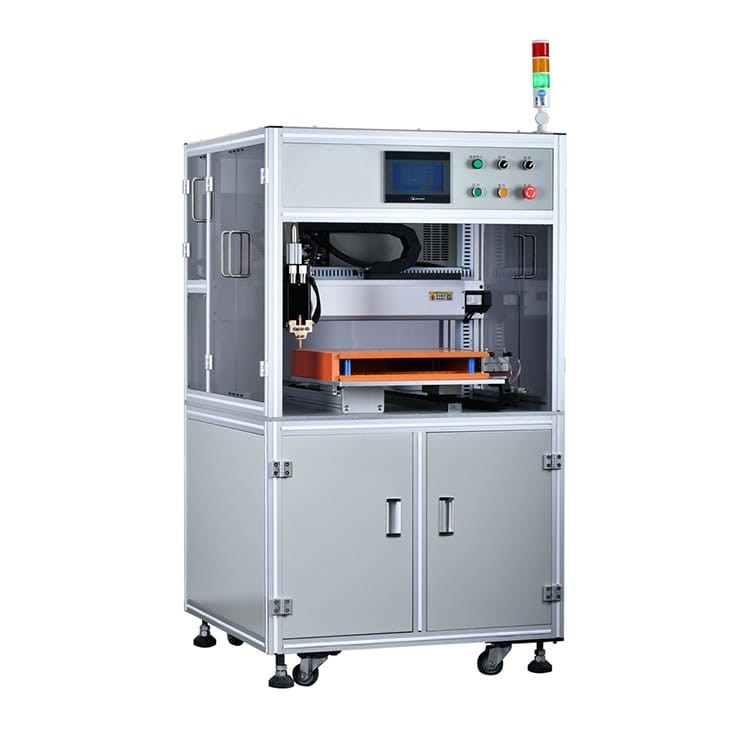

Single side battery welding machine structure

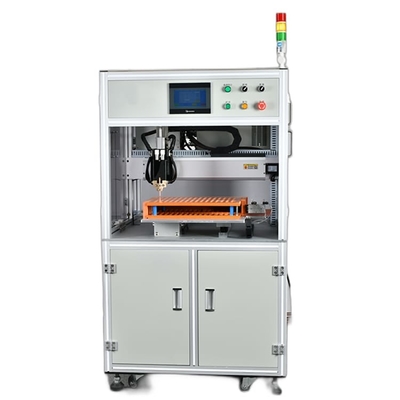

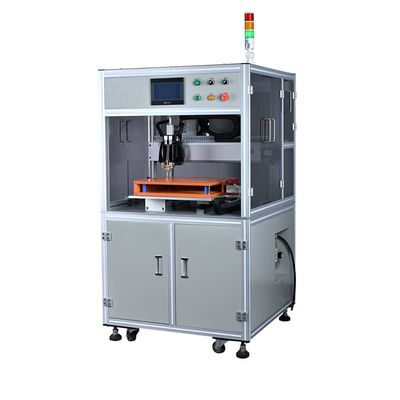

Single side spot welding machine details
Battery pack welding samples
Our factory
