26650 Lithium Battery Spot Welding Machine Single Phase 60Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MPAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 700 - 1000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machine Type: | AC Pulse Spot Welder MD-MPAC | Welding Ability: | 0.05-0.15mm Ni Tab |
|---|---|---|---|
| Source Voltage: | 110V-240V With Transformer, Single Phase 50/60Hz | Working Theory: | Pedal Type AC Pulse Two Spot Welder |
| Usage: | Used For NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 Cylindrical Battery Ni Tab 0.05 To 0.2mm Welding | Pre-welding Current: | 00 - 99 |
| Welding Current: | 00 - 99 | Welding Time: | 0.0 - 3.0 S |
| Head Down Distance: | 15 Mm | Head Moving Driver: | By Pneumatic |
| Size: | 800 * 580 * 1348 Mm | Weight: | 40 Kg |
| Highlight: | vbattery intercell welding machine,26650 Lithium Battery Spot Welding Machine,XWELL Lithium Battery Spot Welding Machine |
||
Product Description

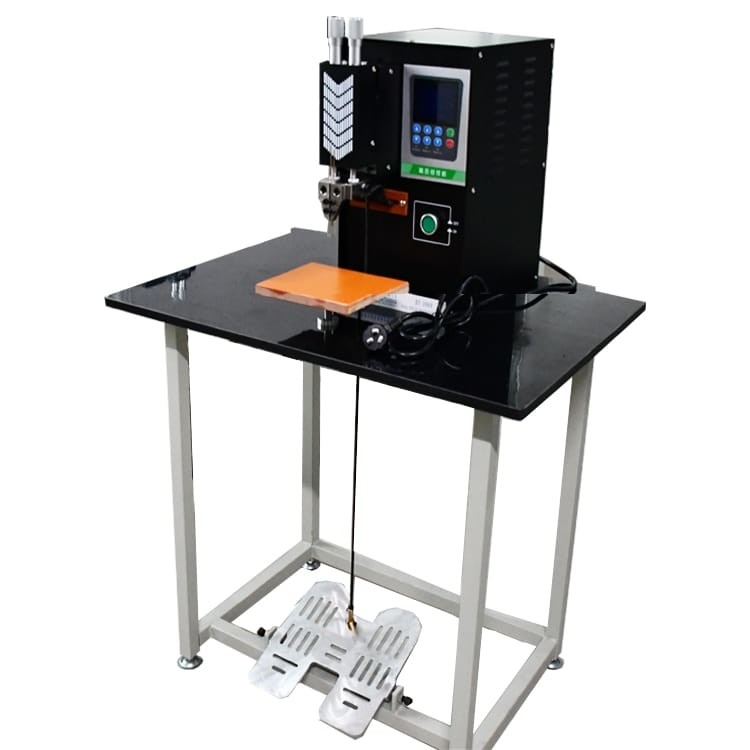

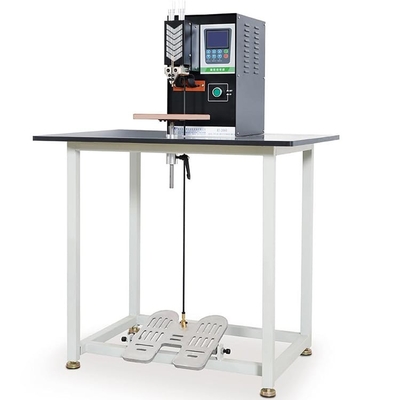

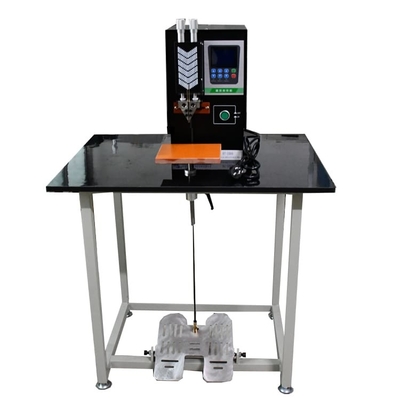

AC Pulse Lithium Battery Spot Welding Machine For Mobile Battery
Product Description
The spot welding machine is the most popular AC pulse Spot Welder driven Pedal. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with reliable performance.This spot welding machine is mainly used for mobile phone battery PCB Ni and Ni welding process
Product Features
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
Product Specification
| Model | AC Pulse Spot Welder MD-MPAC |
| Source voltage | 110V-240V with transformer, Single Phase 50/60Hz |
| Power | 8-25KVA |
| Welding ability | 0.05-0.15mm Ni tab |
| Warranty | One year limited and lifetime support |
| Working theory | Pedal type AC pulse two spot welder |
| Scope of application |
18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding, Mobile phone pcb welding |
| Welding stroke | 20mm |
| Operating | Foot switch |
| Weight | 22kg |
| Dimension (L*W*H) | Foot switch model with desk : 800*580*1380mm |
Product Advantages
1.Beautiful shape, lighter weight, smaller volume, simple operation
2.Good welding result with small spark, no black, and steady welding current.
3.Digital display setting, Flash storage technology
4.Microcomputer control High frequency precision spot welding machine 5.Dimensions:1000mm*1000mm*1800mm
Details image
Spot welding samples
