4KHz Lithium Battery Spot Welding Machine , 8000A Battery Inverter Welder 380v
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1000 - 3000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | MD-MND5000 | Type: | Gantry Manual Pnematic |
|---|---|---|---|
| Input Power Supply: | AC 380 V / + 50 Hz | Max.Current: | 8000A |
| Controlling Frequency: | 4KHz | Nickel Thickness: | Pure Nicel≦0.2mm,slot Nickel≦0.4mm |
| Cooling Method: | Forced AIi Cooling | Welding Time: | 0-99ms |
| Weight: | 60KG | Dimension: | 800L X 600W X 1200Hmm |
| Highlight: | 8000A Lithium Battery Spot Welding Machine,4KHz Lithium Battery Spot Welding Machine,380v battery inverter welder |
||
Product Description

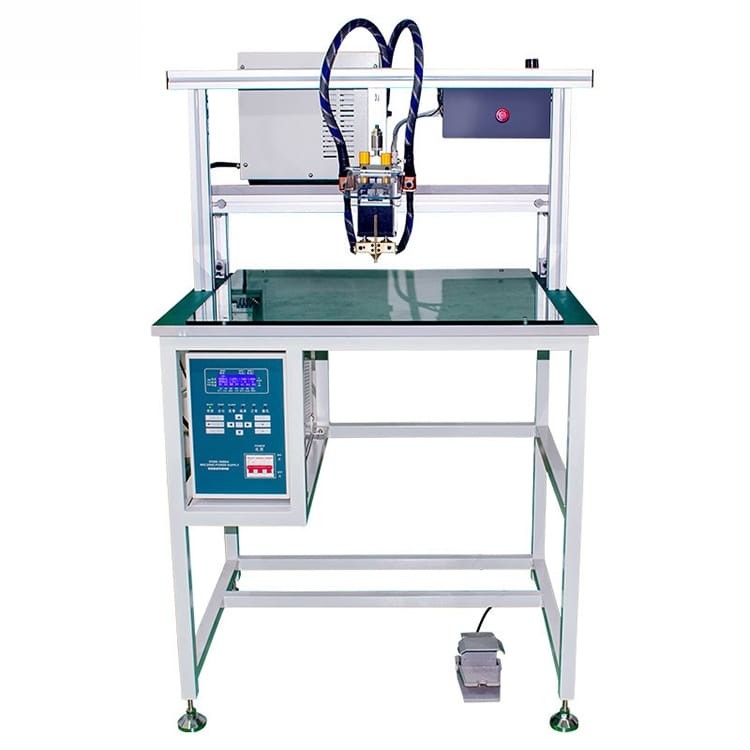

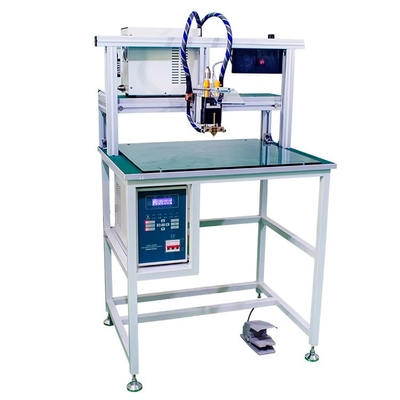

Precision Spot Welder 380v 8000a Inverter Lithium Battery Spot Welding Machine
Product Description
5000A/8000A Inverter DC Precision Welding Power Supply defines the basic frequency of precision welding
4 KHz frequency, up to 1 million high-speed current/voltage/pressure sampling per second.
Faster climbing time and more precise time control. It is superior to the traditional 4KHz high-frequency inverter welding machines.
The main controller has flexible touch operation and touch interface which is equivalent to the tablet computer and has precise control.
Output of spot welding is very stable with the function of current and voltage monitoring which greatly improves the quality of spot welding. It is Suitable for welding of various welding materials and various welding process requirements.
Product Features
1. panel Microcomputer control, high precision welding machine with plc display panel.
2. Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.
3. Industrial circuit design, safe and reliable.
Product Specification
| Input power supply | AC 380 v / + 50 hz |
| Max.Current | 8000A |
| Controlling Frequency | 4KHz |
| Nickel Thickness | Pure Nicel≦0.2mm,slot Nickel≦0.4mm |
| Cooling Method | Forced AIi Cooling |
| welding Time | 0-99ms |
| Weight | 60KG |
| Dimension | 800L x 600W x 1200Hmm |
Product Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
