Desktop Lithium Battery Welder , Pneumatic Cell Spot Welder 10KW
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MDAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 700 - 1000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machine Type: | Single Point Pneumatic Welding Machine | Welding Thickness: | 0.03 - 0.15mm |
|---|---|---|---|
| Power Supply: | AC 220V, 50/60HZ | Warranty: | 12 Months |
| Usage: | Used For NiMH. NiCd, Li-Ion/LiMnNi. LifePO4, 18650, 26650, 32650 Cylindrical Battery Ni Tab 0.05 To 0.2mm Welding | Pre-welding Current: | 00 - 99 |
| Welding Current: | 00 - 99 | Welding Time: | 0.0 - 3.0 S |
| Head Down Distance: | 15 Mm | Head Moving Driver: | By Pneumatic |
| Size: | 800 * 580 * 1348 Mm | Weight: | 40 Kg |
| Highlight: | Desktop cell spot welder,10KW lithium battery welder,Pneumatic lithium battery welder |
||
Product Description
Desktop Pneumatic Point Lithium Battery Spot Welding Machine For Cylindrical Cells
Product Description
The Precise Pneumatic Single Point Welding Machine is specifically designed for professional Li-on Battery Research. It is mainly used for welding the cylinder core negative terminal (Nickel tab) to the bottom of the cylinder case. 90mm welding needle can easily insert into the cylinder case and weld the bottom. This machine is controlled by microcontroller, which is very easy to operate and can provide stable performance.
Product Features
1. The control performance of microcomputer CPU with DC inverter technology is particularly stable, and the setting is simple and convenient.
2. The pressure knob is made according to the international standard customer. The pressure of two welding pins is even, which will not cause faulty welding, and the welding accuracy is higher.
3. The short welding time with the traditional AC pulse capacitor welding machine has no effect on the internal characteristics of the cell, the change of the internal resistance of the battery, the voltage and capacity.
4. After welding, the battery surface is cleaner, with small burr, very small welding spark, and no blackening of welding spot.
5. The blue LCD screen graphically displays the current working status, with clear interface, beautiful appearance and more humanization.
6. The power supply has strong adaptability, will not cause interference to the power grid, and the welding is firm.
Product Specification
| Model | Single Point Pneumatic Welding Machine |
| Power Supply | 220-240V, Single Phase 50/60Hz |
| Max. Power | 10KW |
| Air Pressure Range | 0.1 - 0.6 MPa |
| Welding Current | 0-99A |
| Welding Thickness | 0.03 - 0.15mm |
| Operation Temperature | -20 - 40℃ |
| Controller | Controlled by microcontroller,achieve monopulse, dipulse, mutiple-pulse welding |
| Pressure | Pressure applied on the welding needle can be adjusted independently and easy to operate |
| Design |
Unique Photoelectric switch design Good appearance, small size and light weight Welding spot looks beautiful,free spark, stable welding current |
| Weight | 45 kg (100 lbs) |
| Dimensions | 30.5cm(L) x 50.5cm(W) x 49cm(H) |
| Warranty | one year limited with lifetime support |

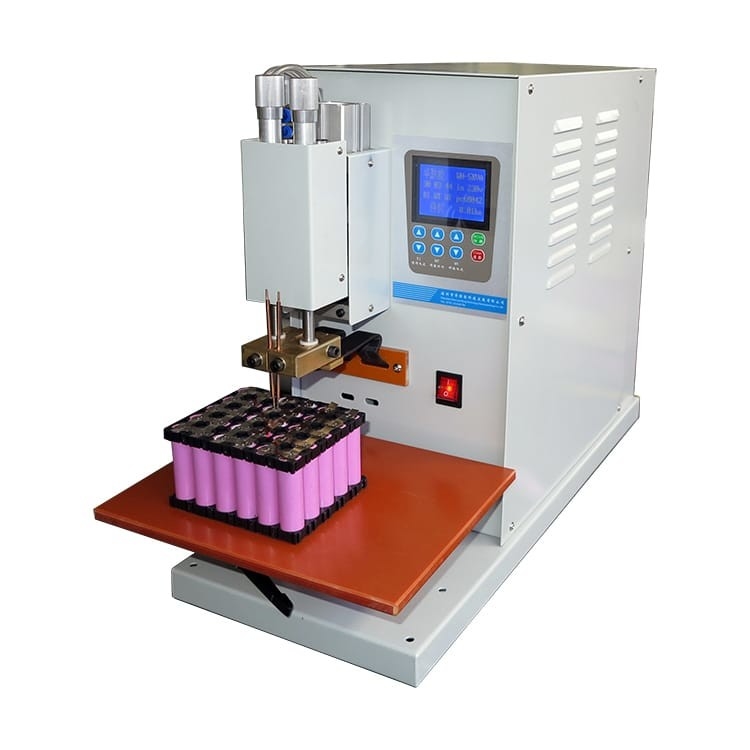

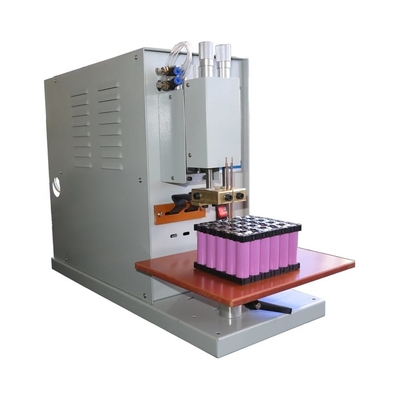

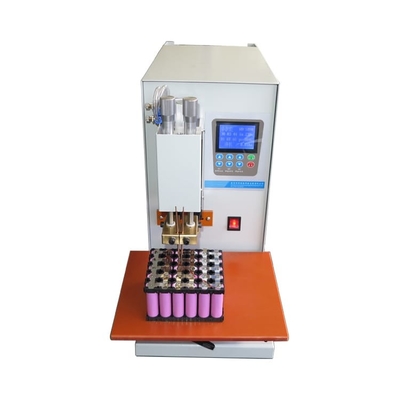

Spot welding machine details
