220V Manual Spot Welding Machine For Battery Lithium Cell DC Power Gantry
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500 - 5000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | MD-MND5000 | Output Max Short Circuit Current: | 5000A 8000A 10000A Optional |
|---|---|---|---|
| Welding Time: | 1.0ms -- 20.0ms Adjustable, Accuracy: 0.1ms | Welding Pulse Number: | 8 Sets Of Pulses |
| Use: | Electronic Parts, Battery Nickel Plate, Enameled Wire, Sensor Wire, Halogen Lamp, Etc | Cooling Mode: | Forced Air Cooling |
| Applicable Scope: | Max Thickness Of Parallel Welding: 0.03mm~0.15mm Max Thickness Of Upper And Lower Butt Welding: 0.1mm + 0.3mm | Max Welding Current: | 5000A 8000A Optional |
| Size: | 800L X 600W X 1200H (unit: Mm) | Weight: | 60 KG |
| Highlight: | 220V spot welding machine for battery,Gantry spot welding machine for battery,lithium cell spot welding machine |
||
Product Description

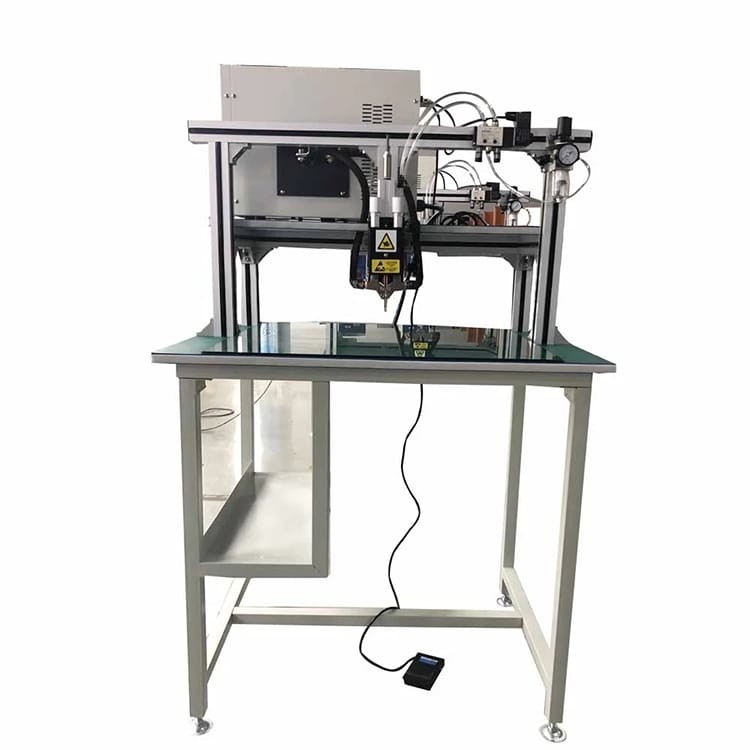

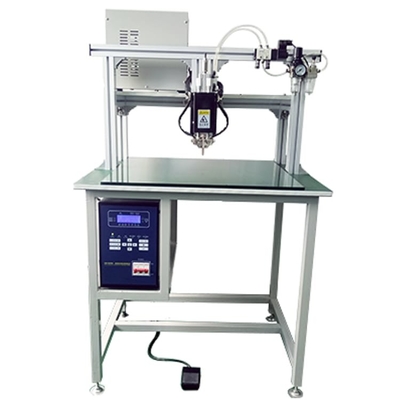

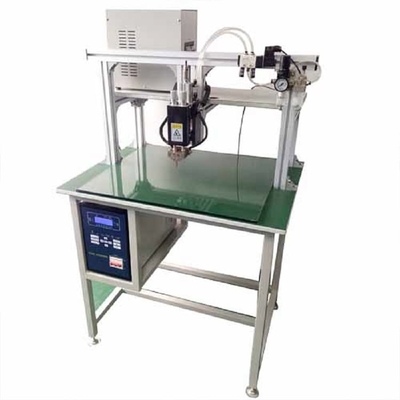

Manual DC Power Gantry Spot Welder For Battery Pack Assembly
Product Description
MD-MND5000 equipped with advanced 220V AC or 380V AC welding power supply, Suitable for battery pack spot welding and assembly in the factory.
This kind battery spot welder is mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
Product Features
l. DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .
2. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
3. LCD display.
4. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
5. Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.
6. The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.
7. Double pulse can reduce welding spatter, effectively improve the quality of welding.
8. Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.
9. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current."
Product Specification
| Model No. |
MD-MND5000 |
| Energy storage capacitor | 6600UF |
| Max output power of transformer | 18 KVA |
| Output max short circuit current | 5000A / 8000A |
| Prewelding voltage | 80.0V -- 330V adjustable, accuracy 0.5V |
| Welding voltage | 80.0V -- 330V adjustable, accuracy 0.5V |
| Welding time | 1.0ms -- 20.0ms adjustable, accuracy: 0.1ms |
| Applicable scope | Max thickness of parallel welding: 0.03mm~0.15mm Max thickness of upper and lower butt welding: 0.1mm + 0.3mm |
| Machine weight | 60KG |
| Dimensions | 800L x 600W x 1200H (unit: mm) |
| Input power supply | single-phase AC220V/50Hz |
| Input current | < 5A |
| Input power | < 4000W |
Product Application
It is suitable for electric vehicle battery pack, automobile battery module, street lamp battery, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, power tool battery pack, notebook battery pack, etc!
Detail
