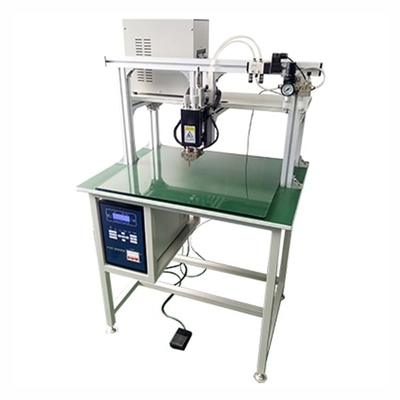

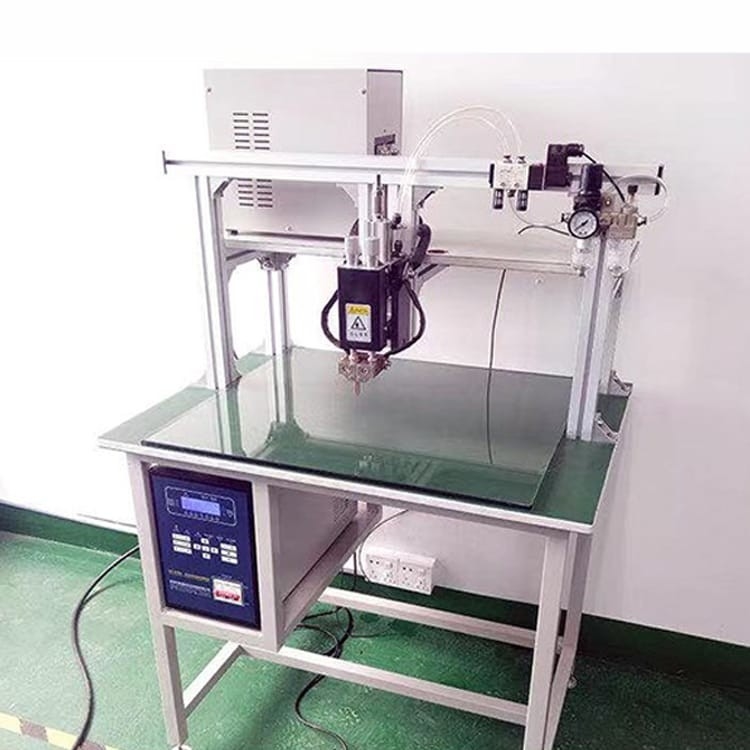

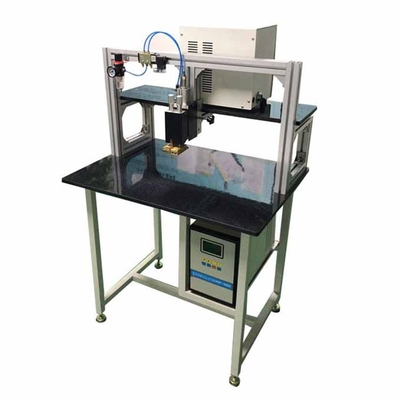

10000A Battery Pack Welding Machine , DC Power Gantry Pulse Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500 - 5000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | MD-MND5000 | Output Max Short Circuit Current: | 5000A 8000A 10000A Optional |
|---|---|---|---|
| Welding Pulse Number: | 8 Sets Of Pulses | Use: | Electronic Parts, Battery Nickel Plate, Enameled Wire, Sensor Wire, Halogen Lamp, Etc |
| Cooling Mode: | Forced Air Cooling | Battery Number: | 500-600 Cells |
| Welding Power Supply: | 5000A DC Inverter Welding Machine Power Supply | Max Welding Current: | 5000A |
| Voltage Input: | 220V And 380V | Power: | 4 KW |
| Highlight: | 10000A Battery Pack Welding Machine,Gantry Battery Pack Welding Machine,pulse spot welding machine |
||
Product Description
5000A 8000A 10000A Manual Battery Pack DC Power Gantry Spot Welding Machine
Product Description
This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips.
5000A 8000A 10000A (DC machine) Battery Pack Spot Welding Machine with slide is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply, the new upgrade installs a movable slide rail, which is more convenient to operate. Suitable battery for pack spot welding and assembly in the factory.
Product Features
1. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
2. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
3. Double pulse can reduce welding spatter, effectively improve the quality of welding.
4. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.
Product Specification
| Max output power of transformer | 35 KVA |
| Output max short circuit current | 5000A 8000A 10000A optional |
| Floating voltage | 10V |
| Control mode | constant current control |
| Cooling mode | forced air cooling |
| Condition | 8 |
| Use | electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc |
| Max thickness of parallel welding | 0.03mm~0.3mm |
| Max thickness of upper and lower butt welding | 0.3mm + 1mm |
| Machine weight | 60kg |
| External dimension | L800mm*W600mm*H1200mm |
| Input power | 3Phase AC380V±10% 50/60Hz |
Product Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Detail
