8000A Lithium Ion Battery Welding Machine , 6600uF battery cell spot welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500 - 5000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | MD-MND5000 | Welding Pulse Number: | 9 Sets Of Pulses |
|---|---|---|---|
| Transformer Maximum Output Power: | 25KVA | Maximum Welding Current: | 5000A/8000A Optional |
| DC Energy Storage Capacity: | 6600uF | Battery Number: | 500-600 Cells |
| Welding Power Supply: | 5000A DC Inverter Welding Machine Power Supply | Max Welding Current: | 5000A |
| Voltage Input: | 220V And 380V | Power: | 4 KW |
| Highlight: | 8000A battery cell spot welder,6600uF lithium ion battery welding machine,lithium ion battery welding machine |
||
Product Description

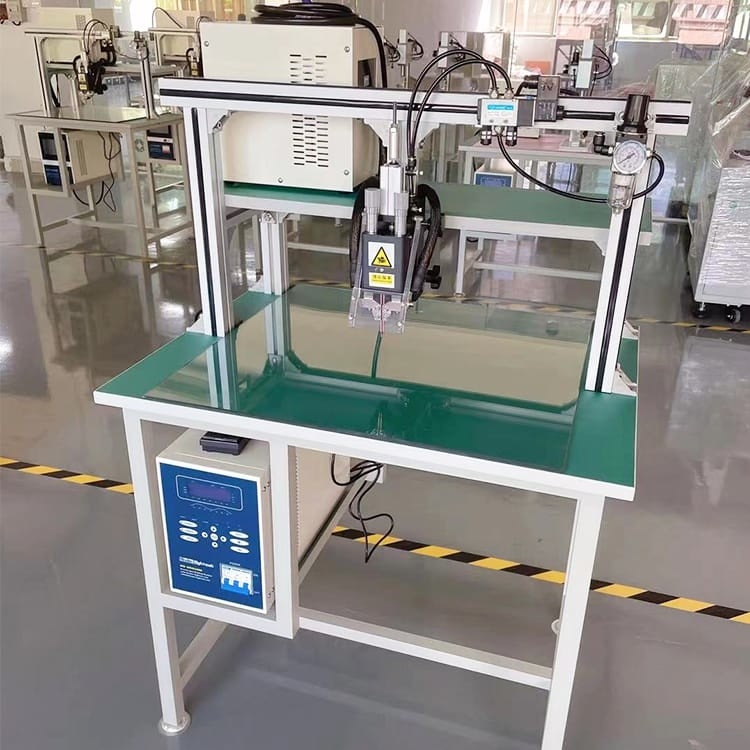

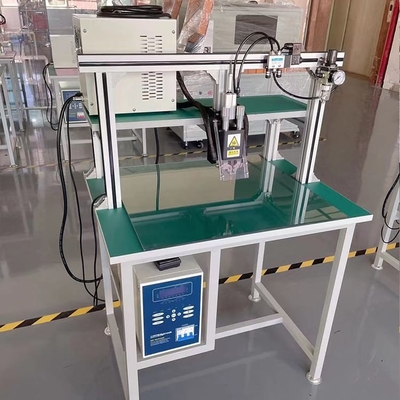

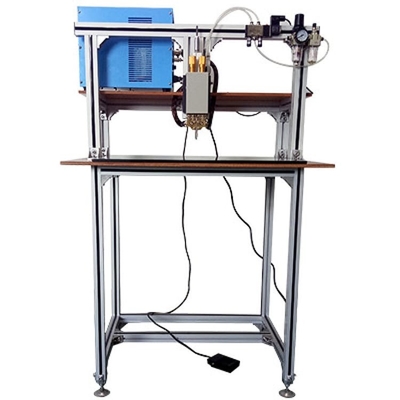

5000A 8000A DC Manual Gantry Frame Cylindrical Battery Pack Welding Machine
Product Description
This pneumatic spot welding machine is mainly used for ylinder lithium cell pack welding, it can weld Nickel tab thickness from 0.02-0.3mm with good welding effect.
Product Features
1. DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .
2. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
3. LCD display.
4. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
5. Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.
6. The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.
7. Double pulse can reduce welding spatter, effectively improve the quality of welding.
8. Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.
9. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.
Product Specification
| Model | MD-MND5000 |
| Transformer maximum output power | 25KVA |
| Maximum welding current | 5000A/8000A optional |
| DC energy storage capacity | 6600uF |
| Welding pulse number | 9 sets of pulses |
| Welding voltage | 5v-330v adjustable, precision 0.5V |
| welding time | 0.1ms-5.0msdjustable, precision 0.1ms |
| Welding mode | Normal / continuous |
| input frequency | AC 220V±10% 50Hz±2Hz |
| Maximum working pressure | 5KG |
| Weight | 60KG |
| Weld thickness | Maximum thickness of parallel welding:0.03mm~0.5mm ,Multiple welding sheet |
Product Application
18650/26650/21700/32650 and other battery combinations;
Energy storage battery, electric vehicle battery, electric motorcycle battery and other modular power lithium battery packs.
