Continuous Battery Pack Welding Machine 10V , 18650 Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500 - 5000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machine Type: | Manual Spot Welding Machine | Table Size: | 800 * 600 Mm |
|---|---|---|---|
| Welding Voltage: | 10V, Precision 0.5V | Welding Mode: | Normal / Continuous |
| Suitable Cell: | Cylindrical Cell, 18650,26650, 32650... | Battery Number: | 500-600 Cells |
| Welding Power Supply: | 5000A DC Inverter Welding Machine Power Supply | Second Maximum Welding Current: | 5000A 8000A Optional |
| Voltage Input: | 220V And 380V Optional | Power: | 4 KW |
| Highlight: | Continuous Battery Pack Welding Machine,10V Battery Pack Welding Machine,18650 spot welding machine |
||
Product Description

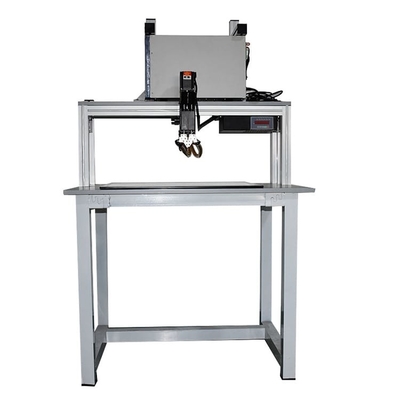

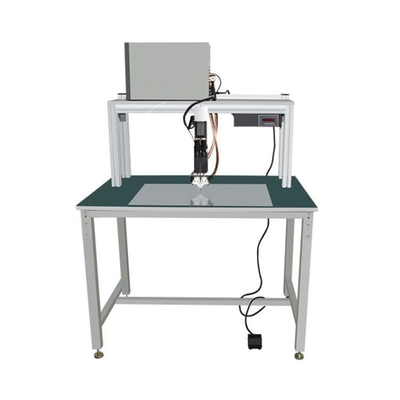

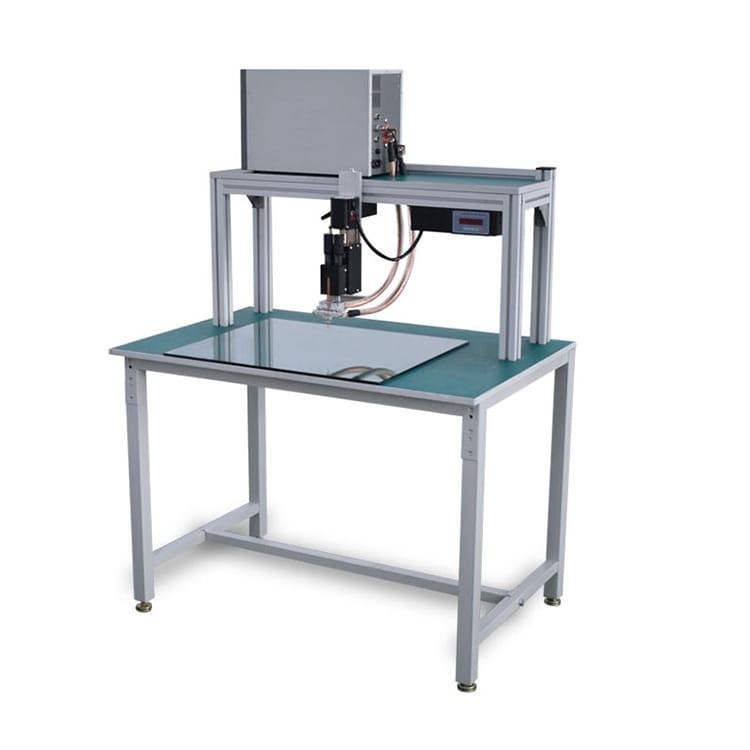

Longmen Gantry Frame DC Inverter 18650 Battery Pack Welding Machine
Product Description
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both positive pole and negative pole of the battery with high speed and good effect.
Product Features
1. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
2. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
3. Double pulse can reduce welding spatter, effectively improve the quality of welding.
4. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.
Product Advantages
1. The current is rectified in order to supply DC welding current.
2. It helps to reduce the energy of iron core material.
3. Transform the electric energy into DC power
4. DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged.
Product Specification
| Model | MD-MND5000 |
| Transformer maximum output power | 25KVA |
| Second maximum welding current | 5000A |
| DC energy storage capacity | 6600uF |
| Welding control method | Imported IGBT module control, double pulse welding |
| Welding voltage | 10V, precision 0.5V |
| Welding time | 0.1ms-5.0ms djustable, precision 0.1ms |
| Welding mode | Normal / continuous |
| Input frequency | AC 220V±10% 50Hz±2Hz |
| Maximum working pressure | 5KG |
| Weight | 60KG |
| Weld thickness | Maximum thickness of parallel welding:0.03mm~0.3mm ,Multiple welding sheet |
Product Application
Cylindrical battery, Prismatic battery, Polymer battery Pneumatic spot welding with nickel sheet.
