Double Side Battery Pack Welding Machine For 18650 Lithium Batteries
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Welding Power Supply: | 5000A/8000A Inverter Spot Welding Power Supply(optional) | Welding Power Supply Quantity: | 2 |
|---|---|---|---|
| Travel: | 500*350mm | Suitable Cell Type: | 18650, 21700, 32650... All Types Of Cylinderial Cells |
| Cell Capacity: | 300-600 Pcs | Welding Speed: | Max 0.35s/spot, 5500 Pcs/h |
| Welding Material: | Nickel, Nickel-Plated Steel | Welding Thickness: | 0.1mm-0.3mm |
| Max Parameter Groups: | 99 Groups | Operation System: | Microcomputer And Touch Screen User Interface |
| Highlight: | Double Side Battery Pack Welding Machine,Nickel Battery Pack Welding Machine,spot welder for 18650 lithium batteries |
||
Product Description

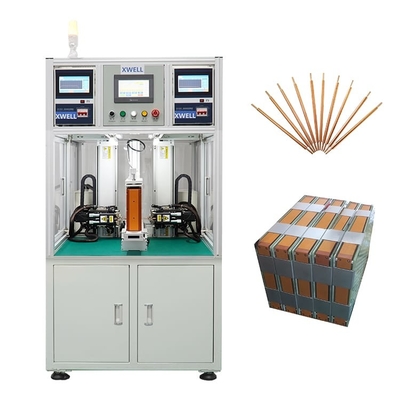

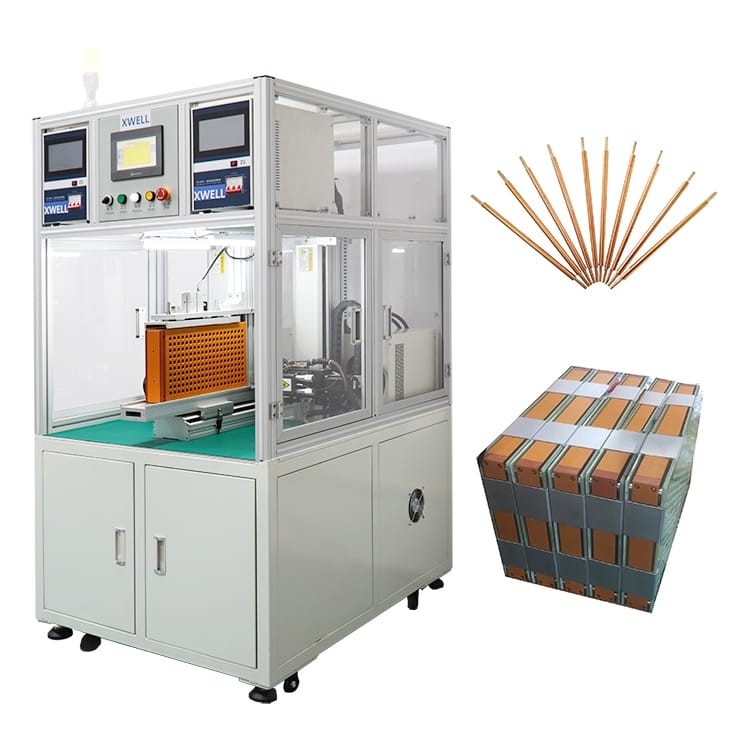

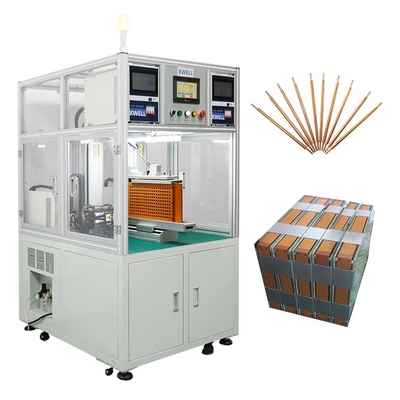

Automatic Spot Welder Machine 18650 Battery Pack Double-side Welding
Product Description
This MD-ADW machine is mainly used for welding the battery and the nickel strip in the cylindrical battery PACK, and the welding tension between the battery and the nickel is ≥30N, suitable for spot welding lithium battery of the electric motorcycle,electric car, solar street lighting and electric tools.
This equipment adopts high precision closed-loop motor, high precision guide rail, equipped with DC inverter welding power source, welding head with photoelectric system to real-time check nickel strip position, adjustable welding pressure, which ensure the battery welding strength, tidy uniform welds.
Movement control CARDS embedded system + human-machine interface, easy operation, multi-function system with variety of programming model, can store Max 99 groups for editing different battery PACK data. Fast switching,high automation, good stability.
Product Features
1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. High productivity: 0.5s/spot
8. Can be matched with the production line of lithium battery group.
9. Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
10. Can store dozens process of different battery packs product, switching products without re-setting parameters.
11. Can match a variety brand of spot welders and power supply.
Product Advantages
1. Induce load voltage, control voltage by feedback, and realize high quality welding.
2. Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.
3. Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.
6. The welding current rises with the time of electrification to ensure the welding effect.
Product Specification
|
No
|
Item
|
Parameter
|
|
1
|
Welding power supply
|
5000A/8000A inverter spot welding power supply(optional)
|
|
2
|
Welding power supply quantity
|
2
|
|
3
|
Travel
|
500*350mm
|
|
4
|
Suitable cell type
|
18650, 21700, 32650... all types of cylinderial cells
|
|
5
|
Cell capacity
|
300-600 pcs
|
|
6
|
Welding speed
|
Max 0.35s/spot, 5500 pcs/h
|
|
7
|
Welding material
|
Nickel, Nickel-Plated Steel
|
|
8
|
Welding thickness
|
0.1mm-0.3mm
|
|
9
|
Max parameter groups
|
99 groups
|
|
10
|
Operation system
|
Microcomputer and touch screen user interface
|
|
11
|
Driver mode
|
Motro and precision guide rail
|
|
12
|
Cooling
|
By air or water (optional)
|
|
13
|
Air pressure
|
0.4-0.6 Mpa
|
|
14
|
Power supply
|
Single phase 220V/Three phase 380V
|
|
15
|
Power
|
8000 W
|
|
16
|
Size
|
900L*900W*1930Hmm
|
|
17
|
Weight
|
400kg
|
Product Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
