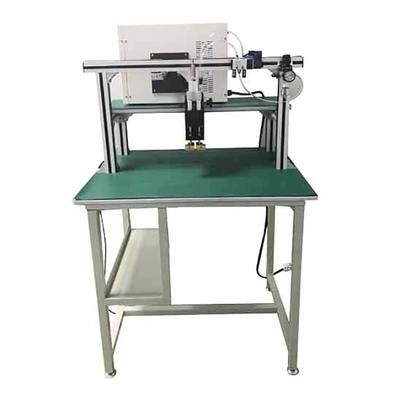

5000A Spot Welding Machine For Lithium Ion Battery CPU Control
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500-5000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model No.: | MD-MND5000 | Max Output Power Of Transformer: | 35 KVA |
|---|---|---|---|
| Output Max Short Circuit Current: | 5000A | Floating Voltage: | 10V |
| Control Mode: | Constant Current Control | Cooling Mode: | Forced Air Cooling |
| Condition: | 8 | Use: | Electronic Parts, Battery Nickel Plate, Enameled Wire, Sensor Wire, Halogen Lamp, Etc |
| Max Thickness Of Parallel Welding: | 0.03mm~0.5mm | Max Thickness Of Upper And Lower Butt Welding: | 0.3mm + 1mm |
| Highlight: | CPU lithium ion battery welder,spot welding machine for lithium ion battery,5000A lithium ion battery welder |
||
Product Description

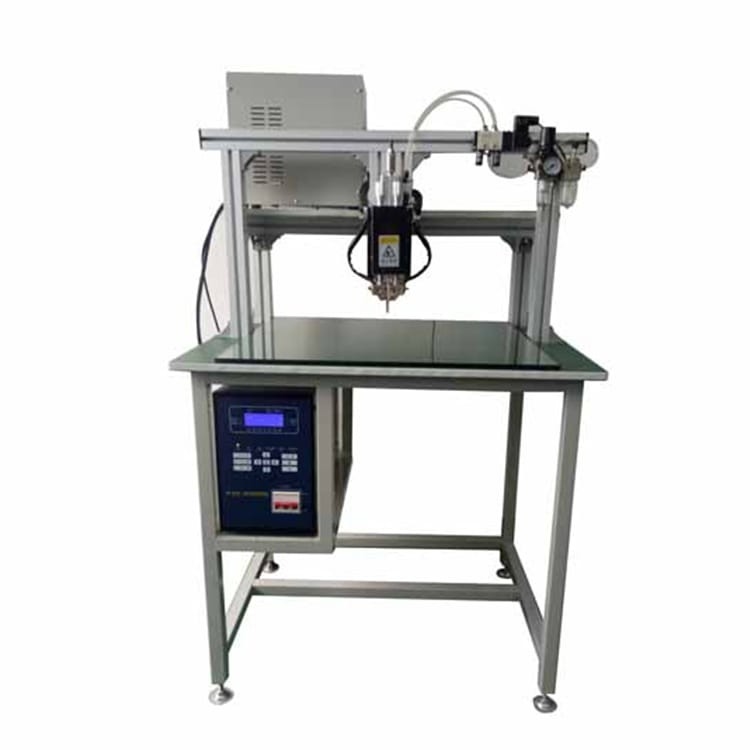

5000A Battery Pack Welding Machine Inverter Gantry Spot Welder With DC Power
Product Description
1. High performance CPU control, LCD blue screen display.
2. (Single) Double pulse energy storage welding to reduce welding spatter.
3. Electronic voltage stabilization automatic compensation function, welding output is not affected by network voltage fluctuation.
4. The width of pulse 1 and 2 can be adjusted (discharge time).
5. Function of current monitoring and warning of abnormal current.
6. 10 welding procedures are stored to facilitate setting and calling.
7. With radio (RFI) and electromagnetic dry (EMI) protection functions;
8. The pulse waveform can be adjusted (long, medium and short) to suit fine welding.
Product Features
1. Welding can be more flexible to select and control with two modes of constant instruction and constant current output,.
2. The preheating current, welding current and tempering current can be set. The three discharge pulses can be used alone or in any combination.
3. It has the function of slow rise/slow fall of current: the function of slow rise/slow fall can avoid splashing during welding and meet the welding requirements of special materials.
4. Counting function: With counting function, the number of welds can be counted. With this function, the working efficiency can be easily understood.
5. It has the functions of fault diagnosis and alarm, such as current malfunction, overshoot of monitoring value, network voltage following, etc.
6. Energy-saving: three-phase power supply input, medium frequency 4000Hz output after rectification and inversion, high working frequency, low transformer loss, obvious energy-saving effect.
7. Fault diagnosis and automatic protection function: In the working process, if the controller detects abnormal situation, it will automatically turn off the output and friendly prompt.
8. Communication and BCD code control function: It can be connected with industrial computer, PLC and other equipment to realize remote control automation management and provide work efficiency.
Product Specification
| Model No. | MD-MND5000 |
| Max output power of transformer | 35 KVA |
| Output max short circuit current | 5000A |
| Floating voltage | 10V |
| Control mode | constant current control |
| Cooling mode | forced air cooling |
| Condition | 8 |
| Use | electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc |
| Max thickness of parallel welding | 0.03mm~0.5mm |
| Max thickness of upper and lower butt welding | 0.3mm + 1mm |
| Machine weight | 75kg |
| External dimension | L800mm*W600mm*H1200mm |
| Input power | 3 Phase AC380V±10% 50/60Hz |
Product Application
This machine can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
