Battery Pack Welding Machine

Flexible Single Head Spot Welder For Battery Packs 26650 4kW

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Flexible Single Head Spot Welder For Battery Packs 26650 4kW

Brand Name:	XWELL
Model Number:	MD-ASW
MOQ:	1pcs
Price:	USD 6000-12000/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

MD-ASW

X Axis Travel:

400mm, Can Be Customized

Y Axis Travel:

400mm, Can Be Customized

Z Axis Travel:

50 Mm

Welding Head Inlet Spring Pressure Adjustment:

1.0-5.0KG

Suitable Thickness For Flat Welded Nickel Sheet:

0.12-0.3mm Nickel Plated Steel

Suitable Thickness For Bump Welding Nickel Sheet:

0.2-0.3mm Nickel Plated Steel/pure Nickel

Welding Current:

5000A 8000A

Voltage:

220V And 380V

Power:

4000 W

Supply Ability:

100pcs per month

Highlight:

26650 spot welder for battery packs

4kW spot welder for battery packs

Flexible single head welding machine

Product Description

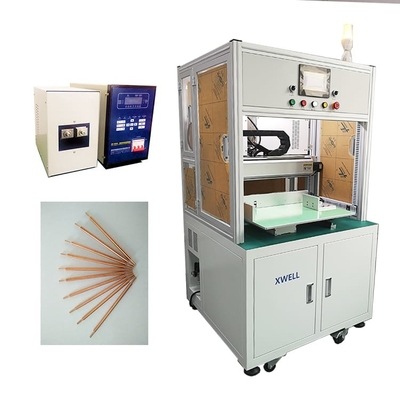

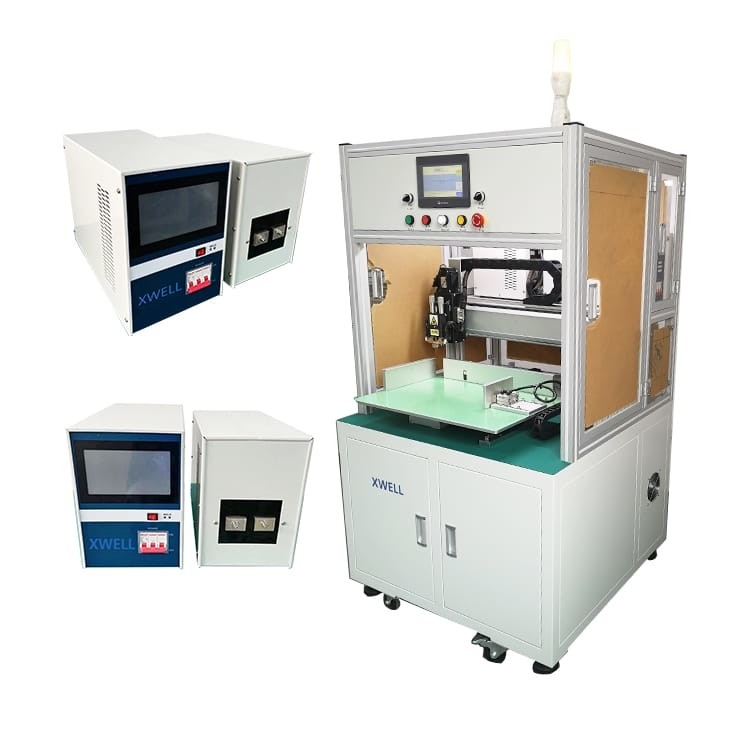

Battery Pack Automatic Spot Welder With Flexible Welding One Head

Product Description

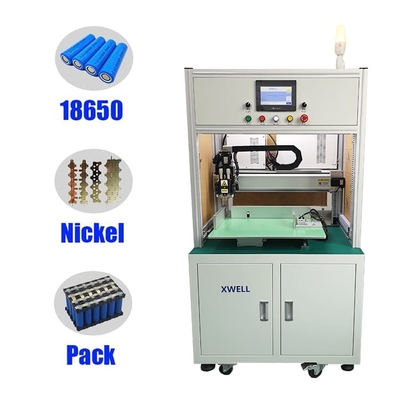

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Product Features

1. Support break point start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 99 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.

Product Advantages

1. Function:Automatic welding machine for battery pack
2. Applied range:For Cylinderical cell battery pack
3. Suitable nickel thickness: 0.1mm-0.2mm
4. Spot welding effective area: X-axis 400mm, Y-axis 400mm

Product Specification

Model	MD-ASW
Welding power source	380V/220V±10% ,50Hz±10%
Power	4000W
Welding power consumption	4000W
Platform input voltage	220V
Platform power consumption	Less than 800W
Upper and lower limits of welding current	Can be set
Welding head rotation Angle	1-180 degree
X-axis Y-axis displacement accuracy	0.05 mm
X axis travel	400mm, can be customized
Y axis travel	400mm, can be customized
Welding head inlet spring pressure adjustment	1.0-5.0KG
Suitable thickness for flat welded nickel sheet	0.12-0.3mm nickel plated steel
Suitable thickness for bump welding nickel sheet	0.2-0.3mm nickel plated steel/pure nickel
Positive and negative current switching speed	Available
Plane welding speed	0.9-1.0S,1800-2000 pcs/h (Depends on the process and material of the nickel sheet)
Bump welding speed	1.2-1.5S,1000-1500 pcs/h (Depends on the process and material of the nickel sheet)
Suitable battery model	18650,26650, 32650
Dimension	900mmL900mmW1750mmH
Weight	200KG

Product Application

The MD-ASW spot welding machine suitable for below battery welding:

Power Storage Battery
Power Module Battery
Electric Tool Battery
Photovoltaic Energy Storage Battery

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
