10000A Transistor Spot Welder For Lithium Ion Batteries 4KHz Frequency
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-5000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000-5000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Brand Name: | XWELL | Power Supply: | AC 3 Phase 380V±10% 50/60Hz |
|---|---|---|---|
| Max Output Current: | 5000A | Control Frequency: | 4 KHz |
| Control Method: | One Time Current Detection, And Return To The Way Of Static Current | Cooling: | Cooling By Air |
| Temperature: | 0 ℃ ~ + 50 ℃ | Relative Humidity: | < 90 % |
| Size: | 195 (L) * 280 (W) * 450 (H) Mm | Weight: | 19 Kg |
| Highlight: | spot welder for lithium ion batteries,4KHz spot welder for lithium ion batteries,10000A lithium spot welding machine |
||
Product Description

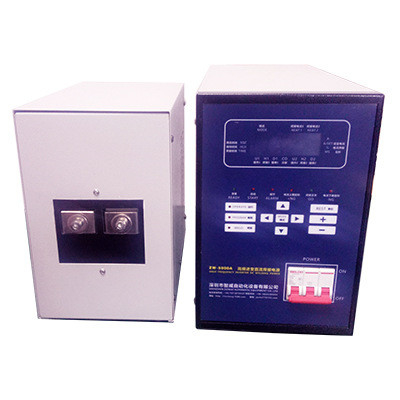

5000A DC Precision Inverter Resistance Spot Welding Power Supply Battery Pack Welding Machine
Product Description
MD-5000A series intermediate frequency welding machine controller is a synchronous controller of spot welding machine with MCU chip as the main control unit.
This welding power supply controller adopts an industrial standard LCD display screen, which is new designed and manufactured with reference to the latest welding concept and standard, and is continuously upgraded to continuously improve the user experience to ensure that it is comfortable in actual use.
Product Features
1. Constant current, constant voltage, constant power control modes available.
2. Dynamic resistance monitor.
3. High stable current output.
4. High-resolution current and welding time.
5. Fast dynamic response.
6. LCD Display, Accurate and Digitizing control.
7. Adopt Inverter technology,saving power.
8. Pulse DC current,Avoid the power fluctuations.Constant current output, detect and feedback in every cycle.
9. The welding joint is quite strong and beautiful and Not break the plating coat after welded.
Product Application
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Product Specification
|
Product Name: 5000A DC Precision Inverter Resistance Spot Welding Power Supply
|
|
|
Brand name: XWELL
|
Power Supply: AC 3 Phase 380 V ± 10 % 50 / 60 Hz
|
|
Model number: MD-5000A
|
Temperature: 0 ℃ ~ + 50 ℃
|
|
Max Output Current: 5000A
|
Humidity: < 90 %
|
|
Control Method: One time current detection, and return to the way of static current control
|
Welding Transformer Output: Max: 5000A; No-load voltage: 10.8V
|
|
Max Usage Rate: 10 % (5000A)
|
Cooling: Cooling by air
|
|
Welding Model Configuration: 8 MODE (MODE 0, 1, 2, 3, 4, 5, 6, 7)
|
Welding Current Checking: Customized option ±3~±9%±N range and auto checking. If the actual welding current exceed this range, will output “NG”, if no exceed, will output “GO”. |
|
Welding Current Setting Range: CURRENT 1: 800~5000A CURRENT 2: 800~5000A |
Checking Result Output Function(I/0 CONNECTORS): OPEN COLLECTOR Output (DC 30V 200mA MAX) |
| Dimension: 195 (W) * 280 (H) * 450 (D) mm | Weight: 19 KG |
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
