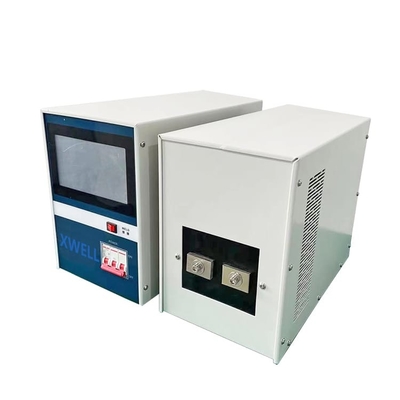

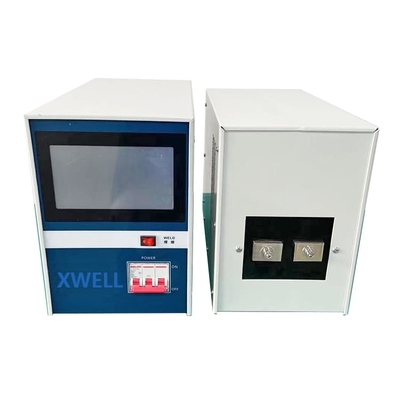

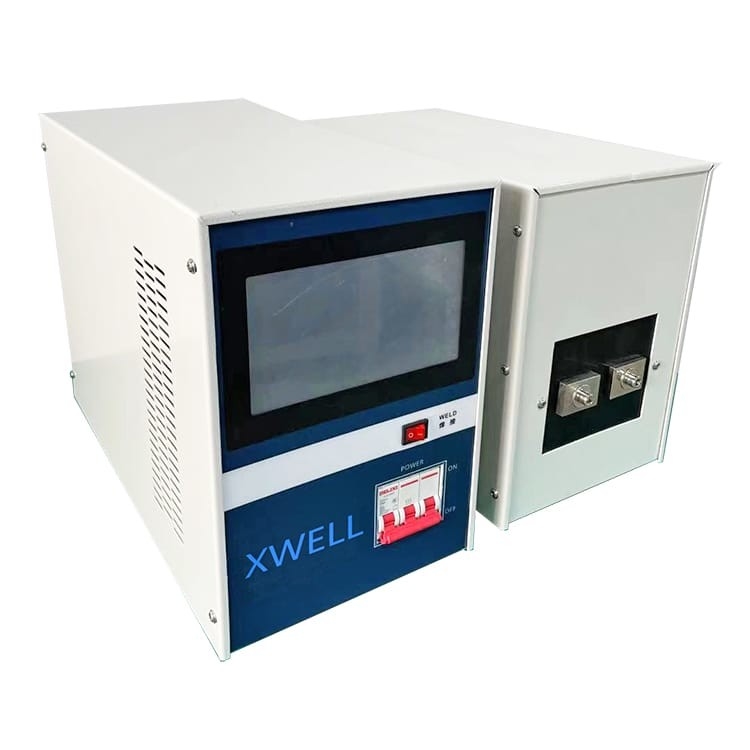

8000A Lithium Ion Battery Spot Welder , Cylindrical Battery Cell Welder
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-8000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000-5000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Brand Name: | XWELL | Power Supply: | 3 Phase 4 Wire AC 380 V ± 10 % 50 Hz |
|---|---|---|---|
| Output Voltage: | Single Phase PWM Output 500 V | Output Current: | Max Short Current 10 KA |
| Cooling: | Air | Valve Power Supply: | DC 24 V ± 10 % Current < 150 Ma |
| Temperature: | - 10 ℃ ~ 55 ℃ | Relative Humidity: | < 80 % |
| Size: | 360mm × 230mm × 600mm | Weight: | 25 Kg |
| Highlight: | 8000A lithium ion battery spot welder,lithium ion battery spot welder,Cylindrical battery cell welder |
||
Product Description
8000A DC Precision Inverter Resistance Spot Welding Power Supply Battery Pack Welding Machine
Product Description
MD-8000A series intermediate frequency welding machine controller is a synchronous controller of spot welding machine with DSP chip as the main control unit.
This welding power supply controller adopts an industrial standard 7-inch resistive touch control color display LCD screen, which is carefully designed and manufactured with reference to the latest welding concept and standard, and is continuously upgraded to continuously improve the user experience to ensure that it is comfortable in actual use.
Product Features
1. 32 groups of welding parameter storage: more flexible selection and control can be performed during welding.
2. Preheating current, welding current and tempering current can be set: which can effectively solve the problem of spatter during welding and quenching of work piece after welding. The three discharge pulses can be used individually or in any combination.
3. With current ramp up/down function: Using the ramp up/down function can avoid spatter during welding and meet the welding requirements of special materials.
4. Counting function: With counting function, the welding times can be counted. Using this function, the work efficiency can be easily understood.
5. With single point/continuous/seam welding function
6. Energy saving: Three-phase power input, intermediate frequency 1000Hz output after rectification and inverter, high working frequency, small transformer loss, and obvious energy saving effect.
7. Easy to install and use: Compared with the power frequency transformer, the transformer used in the intermediate frequency inverter welding machine is greatly reduced in volume, and the overall equipment is light and easy to install and use.
8. Fault diagnosis and automatic protection function: During the working process, if the controller detects an abnormal situation, it will automatically turn off the output and give a friendly prompt.
9. Communication and BCD code control function: It can be connected to industrial computer, PLC and other equipment to realize remote control automatic management and improve work efficiency.
10. Expandability: Using German Bosch technology, through the combination of various expansion modules of the company, it can form:
- a: Remote monitoring
- b: Real-time data feedback
- c: Programmable input and output
- d: Man-machine dialogue operation wireless connection
Product Application
The product is suitable for welding in 18650 26650 21700 32650 electric vehicle battery pack, electric bicycle battery pack, automobile battery module, street lamp battery pack, balance car battery pack, scooter battery pack, mobile power supply, starting battery pack module, electric tool battery pack, energy storage power supply battery pack and other fields. Automatic compensation of welding pin, water cooling and heat dissipation of welding head, very beautiful welding effect, elimination of false welding, self current welding detection, high-end quality, durable, one-year warranty, lifelong maintenance!
Product Specification
|
Product Name: 8000A DC Precision Inverter Resistance Spot Welding Power Supply
|
|
|
Brand name: XWELL
|
Input voltage: 3 phase 4 wire AC 380 V ± 10 % 50 Hz
|
|
Model number: MD-8000A
|
Output voltage: Single phase PWM output 500 V
|
|
Output current: Max short current 10 KA
|
Cooling: Air
|
|
Valve power supply: DC 24 V ± 10 % Current < 150 Ma
|
Temperature: - 10 ℃ ~ 55 ℃
|
|
Relative humidity: < 80 %
|
Parmeter groups: 32
|
|
Size: 360mm × 230mm × 600mm
|
Weight: 25 kg |
Product Details
8000A Inverter DC power suppy optional
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
