Product Details:

Place of Origin: China
Brand Name: XWELL
Certification: CE
Model Number: MD-MPAC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD 700 - 1000/pcs
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100pcs per month
Get Best Price Contact Now

Detail Information

Welder Type: Manual Spot Welding Machine Operate Model: By Pedal
Source voltage: 220V AC Welding Head: 1 Set
Pre-welding Current: 00 - 99 Welding Current: 00 - 99
Welding Time: 0.0 - 3.0 S Welding stroke: 15 Mm
Screen: LCD Welding Thickness: 0.03 - 0.20 Mm
Machine Size: 800 * 580 * 1348 Mm Net Weight: 40 Kg
Highlight:

Manual Battery Pack Welding Machine

,

Two Electrode Battery Pack Welding Machine

,

Two Electrode li ion spot welder

Product Description

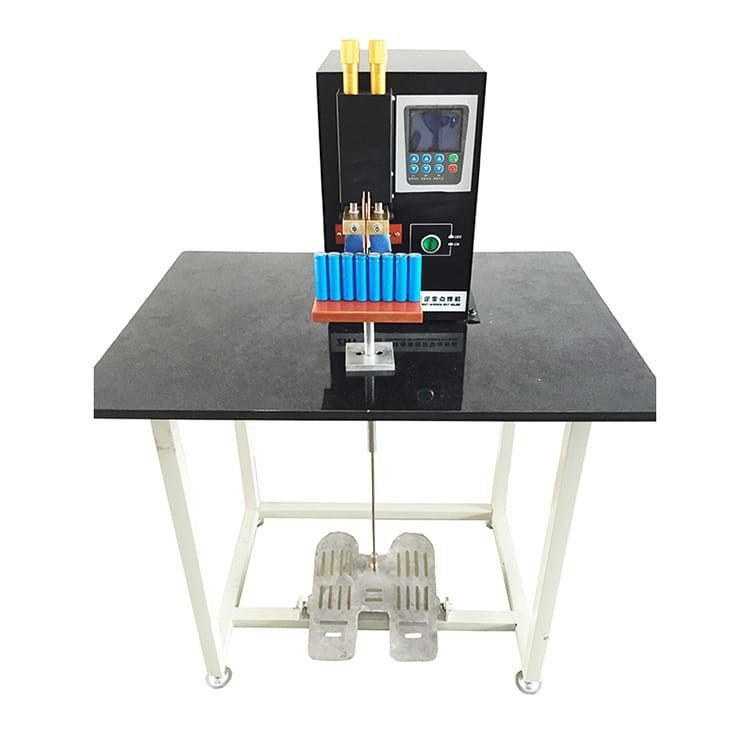

Pedal Manual Two Electrode Battery Pack Welding Machine



Product Description


The MD-MPAC Manual Battery Spot Welding Machine is a general spot welding machine based on microcomputer, suitable battery pack spot welding and assembly in the school, university, laboratory and factory.

This machine equipped with advanced 220V AC welding power supply, and drived by pedal, no need compressed air, easy for operation.

This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.


Product Features

1. Beautiful appearance and light weight.
2. The welding spot is beautiful, the spark is small, no blackening, and the welding current is stable, and the welding spot size is uniform.
3. It completely overcomes the phenomenon of low voltage and water leakage after spot welding of lithium batteries. It is the ideal equipment for you to produce assembled batteries.
4. Microcomputerization of various parameters, using LCD liquid crystal display, key surface adjustment, accurate, intuitive and convenient.
5. The pressure of the two welding pins is adjusted independently, and the adjustment is convenient to ensure the welding pressure is stable and reliable.



Product Advantages

1.High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
2.High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
3.Double pulse can reduce welding spatter, effectively improve the quality of welding.
4.Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.



Product Application



This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...





Product Specification


Item Parameter
Welder 220V AC welder
Welding head quantity 1
Power supply 220V AC / 50Hz
Max output power 20 KVA
Air pressure No need
Pre-welding current 00 - 99
Welding current 00 - 99
Welding time 0.0 - 0.3 ms
Welding travel 15 mm (adjustable)
Head moving driver By pedal
Welding thickness range 0.03 - 0.20 mm Nickel
Max battery size 300 * 200 - 400 mm
Machine size 800 * 580 * 1348 mm
Machine weight 20 kg



Product Details

 Manual Battery Pack Welding Machine , Two Electrode Li Ion Spot Welder 0Manual Battery Pack Welding Machine , Two Electrode Li Ion Spot Welder 1

Manual Battery Pack Welding Machine , Two Electrode Li Ion Spot Welder 2


Battery Pack Welding Samples


Manual Battery Pack Welding Machine , Two Electrode Li Ion Spot Welder 3
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
