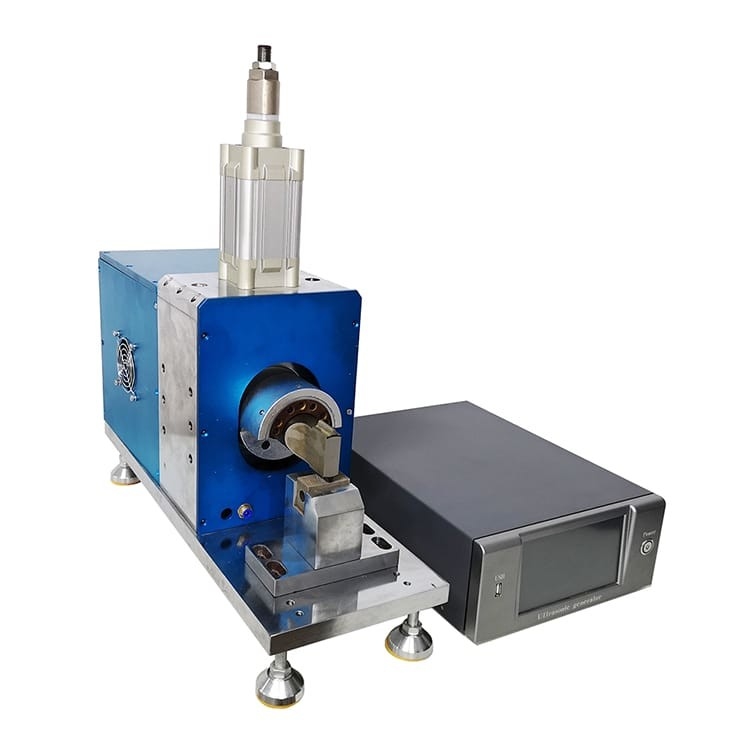

Battery Pack Ultrasonic Metal Spot Welding Machine 20KHz Frequency Adjustable
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-M2060 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Name: | Ultrasonic Welding Machine | Frequency: | 20KHz |
|---|---|---|---|
| Welding Size: | Can Also Customized According Request | Operation Interface: | 4.3 Inch / 7 Inch Touch Screen |
| Power: | 3000W - 8000W | Control Model: | Time / Energy |
| Source Voltage: | AC110V/220V±10%V 50/60±10%Hz | Warranty: | One Year Warranty With Lifetime Support |
| Highlight: | adjustable Battery Pack Welding Machine,20KHz Ultrasonic Metal Spot Welding Machine,Ultrasonic Metal Spot Welding Machine |
||
Product Description
Ultrasonic Metal Spot Welding Machine for Pouch Cell Battery Pack Welding
Description
Ultrasonic Metal Spot Welding is a well-developed and established production method for joining non-ferrous metals.Especially in the automobile industry, this reliable and trend-setting technology has been used in the production of wire harnesses for decades
now. Ultrasonic metal welding is a cold, friction welding process, i.e. no liquid-melt phase occurs. The parts being joined are rubbed together at their contact surfaces under slight pressure.
Compared with crimping or resistance welding, this process offers numerous advantages. Besides the excellent electrical properties of the joint and the extremely low energy consumption, this method is particularly characterized by comprehensive process control
and process data management.
Features
1) Power adjustable, operate simple, and run stable and reliable.
2) High-quality ultrasonic transducer, strong power, good stability.
3) 4.3 & 7 inch touch screen display keeps the machine visible in operation and regulation.
4) Overcurrent protection and soft start can keep the machine safe.
5) Good conductivity and resistivity very low or almost near to zero.
6) No welding sparks, environment protection and safety.
7) Short weld time, no need additional flux, gas, solder.
8) Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.
Specification
|
No
|
Item
|
XW-M2030
|
XW-M2040
|
XW-M2060
|
XW-M2080
|
XW-M4010
|
|
1
|
Frequency
|
20KHz
|
40KHz
|
|||
|
2
|
Source Voltage
|
AC110V/220V±10%V 50/60±10%Hz
|
||||
|
3
|
Power
|
3000W
|
4000W
|
6000W
|
8000W
|
1000W
|
|
4
|
Operation interface
|
4.3 Inch / 7 Inch Touch Screen
|
||||
|
5
|
Welding Size
|
can also customized according request
|
||||
|
6
|
Pneumatic Pressure
|
0.3-0.6Mpa
|
||||
|
7
|
Control Model
|
Time / Energy
|
||||
|
8
|
Generator Type
|
Digital automatic frequency tracking, generator can be adjusted the output amplitude from 5% to 100%
|
||||
|
9
|
Machine Size(mm)
|
500*200*400
|
550*280*450
|
600*280*500
|
600*300*550
|
400*180*400
|
|
10
|
Controller Size(mm)
|
400*350*140
|
||||
|
11
|
Weight
|
50kg
|
60kg
|
85kg
|
90kg
|
30kg
|
|
12
|
Warranty
|
One year warranty with lifetime support
|
||||
Customized horn according to the products
Ultrasonci welding samples
XWELL Ultrasonic welding machine factory
