Lithium Ion Battery Aging Machine Tester 100V 20A Charge 40A Discharge
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS100-20-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Highlight: | 100V Battery Aging Machine,40A Battery Aging Machine,lithium ion battery tester |
||
|---|---|---|---|
Product Description
Description
The Battery Pack Charge and Discharge Aging Machine is mainly used for the charge and discharge cycle test of the finished lithium battery.
The test items include: battery charge protection voltage, discharge protection voltage, battery capacity, etc.; the equipment has 4 test steps of charging, discharging, shelving, and cycling. You can make the battery test in accordance with the set process.
The test functions are:
1) Battery charge protection voltage
2) Discharge protection voltage
3) Battery capacity
Structure

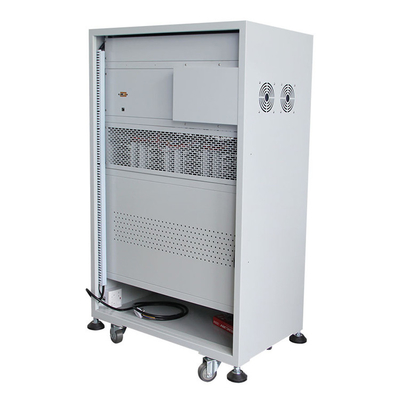

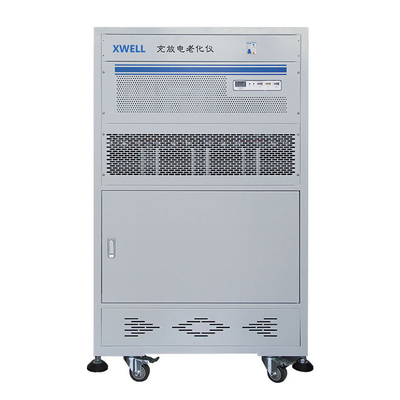

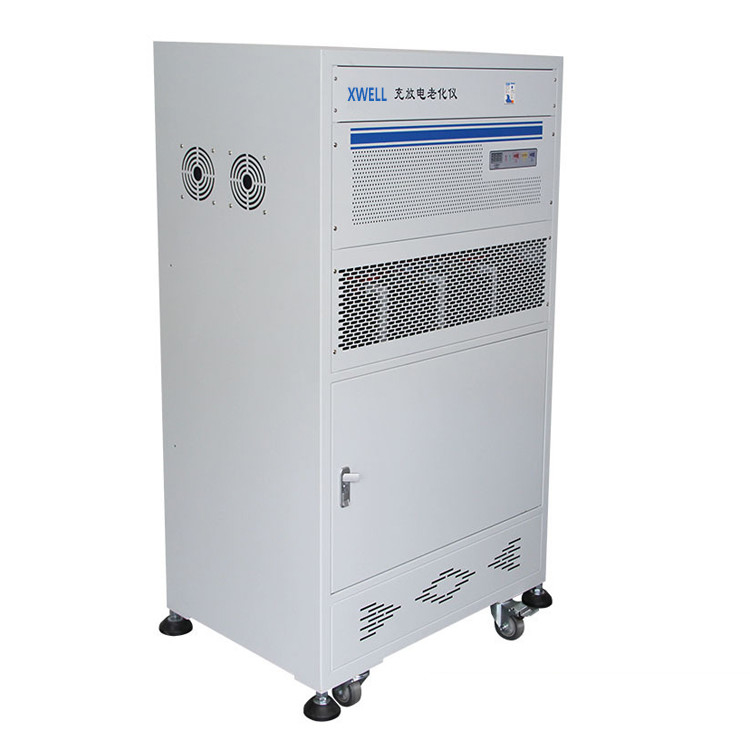

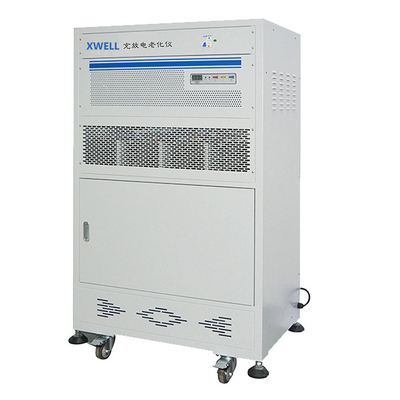

Battery Pack Charge and Discharge Aging Machine

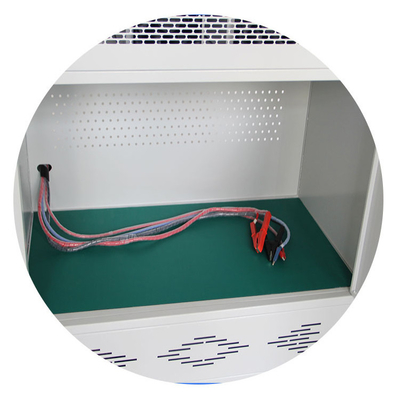

Explosion-proof cabinet
Explosion-proof cabinet for storing batteries.
The cabinet is explosion-proof, it will keep safty during testing.
Computer software
The charge and discharge aging machine can connect to computer via Serial port or Net.
Computer software is multi-fuctional, can set the parameters of testing, test steps, record test data, and output test data to Excel, TXT.
Application
Parameters
Our project
India project
This project is localed in Inda, Gurgaon. The client was founded in 1994, have more than 400 staffs and 10000+ square factory.
They bought 2 full of battery pack assembly line from us, includes sorting machine, welding machine, sticking machine, charge and discharge machine…
We have sent 3 engineers to client site for machine installation and training in year of 2019. The training taked about one week. After the training, the client engineers are learned how to operation the machines in a smooth and high efficiency way. They made high-quality products by our machines.
We had a nice journey in India.
