BMS Testing Machine

PBTS BMS Testing Machine Automotive Battery Tester Multifunction

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

PBTS BMS Testing Machine Automotive Battery Tester Multifunction

Brand Name:	XWELL
Model Number:	PBTS24-120
MOQ:	1pcs
Price:	USD 5500/pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Supply Ability:

100 pcs per month

Highlight:

PBTS BMS Testing Machine

Multifunction BMS Testing Machine

professional automotive battery tester

Product Description

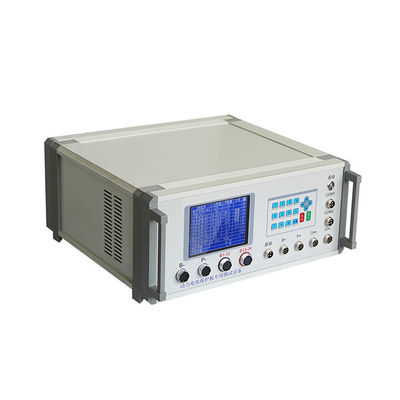

PBTS BMS Testing Machine Automotive Battery Tester Multifunction 0

Description

The PBTS series multi-function BMS board testing machine is mainly used to testing the BMS board specifications is within the parameters which declared by the BMS board supplier, so as to provide a set of testing standards for the staff. It is suitable for power battery BMS board manufacturers and power battery pack manufacturers.

The test functions are:
1) overcharge protection voltage
2) overcharge recovery voltage
3) over discharge protection voltage
4) over discharge recovery voltage
5) over discharge current protection
6) short circuit protection performance test
7) charging current protection
9) equalization opening voltage
10) equalization real-time current
11) BMS board total consumption
12) single section self consumption current
13) overcharge protection delay
14) over discharge protection delay
15) overcurrent protection delay
16) internal resistance

Structure

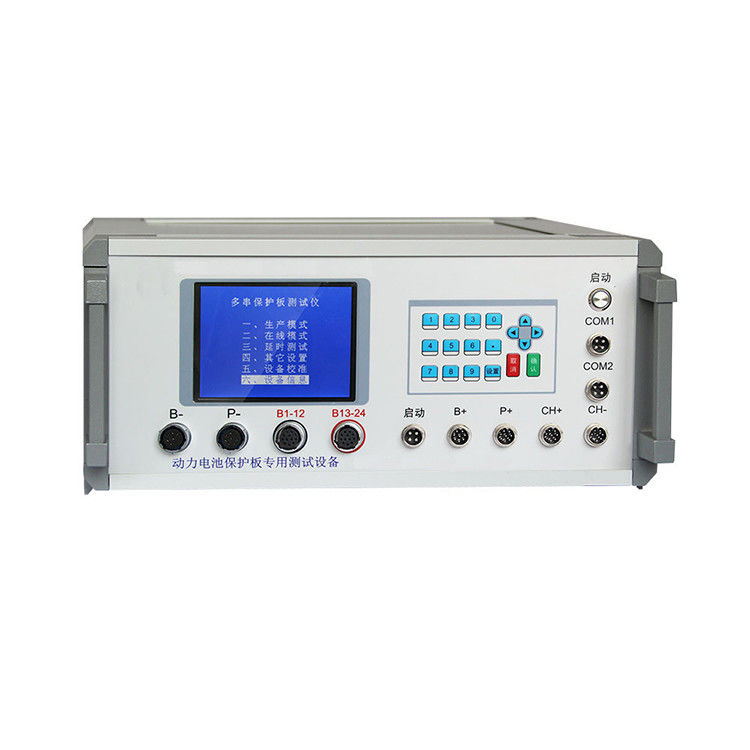

PBTS BMS Testing Machine Automotive Battery Tester Multifunction 1

Details

PBTS BMS Testing Machine Automotive Battery Tester Multifunction 2

Parameters

No	Item	Parameter	Accuracy
1	Power supply	AC220V/50Hz
2	Power	800W
3	Max overcurrent	60A or 120A optional
4	Test series	1-24 series configurable
5	Voltage reference	Ternary Battery:3.8V LFP Battery: 3V
6	Overcharge/Overdischarge protection voltage	0.5-5V	±5mV
7	Overcharge/Overdischarge voltage	0.5-5V	±5mV
8	Overcharge protection current	0-40A	±0.1A
9	Overdischarge protection current	0-120A	±0.1A
10	Equilibrium open voltage	0.5-5V	±5mV
11	Equilibrium real-time current	0-200mA	±1mA
12	Overcurrent protection delay	0-15S	±1mS
13	Overcharge/Overdischarge protection delay	0-20S	±1mS
14	Single section self consuming power	0-500uA	±1uA
15	Internal loop resistance	0-500mΩ	±1mΩ
16	Short circuit protection (above 6 series)	0-9999us	±1us
17	Size	450W440L230Hmm
18	Weight	20kg

Our project

India project
This project is localed in Inda, Gurgaon. The client was founded in 1994, have more than 400 staffs and 10000+ square factory.

They bought 2 full of battery pack assembly line from us, includes sorting machine, welding machine, sticking machine, charge and discharge machine…
We have sent 3 engineers to client site for machine installation and training in year of 2019. The training taked about one week. After the training, the client engineers are learned how to operation the machines in a smooth and high efficiency way. They made high-quality products by our machines.
We had a nice journey in India.
