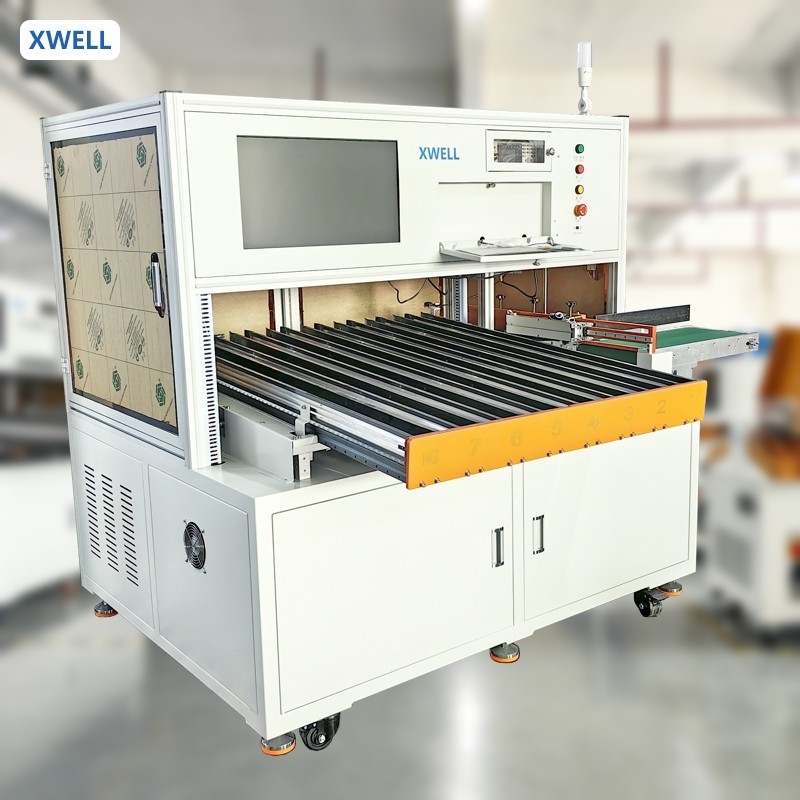

XWELL Prismatic Battery Sorting Machine 600 pcs/h AC220V
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Brand: | XWELL | Product Origin: | China |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Prismatic battery sorting machine 600 pcs/h,Battery cell sorter AC220V,Prismatic battery sorter with warranty |
||
Product Description
| Attribute | Value |
|---|---|
| Brand | XWELL |
| Product Origin | China |
| Input Voltage | AC220V/50Hz |
| Speed | 600 pcs/h |
| Test Parameter | AC internal resistance, open DC voltage |
| Power | <1000W |
| Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years experience in new energy battery industry. In order to create more economic value and offer one-step service, we collect all the knowledge and resources to provide complete solutions in battery industry including battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machine, plastic ultrasonic welding machine, metal ultrasonic spot welding machine, wire ultrasonic welding machine, and most accessories. We have exported to more than 60 countries worldwide in the past 10 years and have passed CE safety certification system. With rich technology and capital resources, we focus on new product innovation with at least one new design machine every year.
This equipment is designed to test internal resistance and voltage of prismatic batteries, conduct manual sorting after PLC automatically judges sorting grade, and scan codes to read capacity. It performs multiple tests including side voltage, cell thickness measurement, and connects all data to MES system. The operation process involves manual placement on mobile fixture, duplex control button activation, automatic movement to preloading position, and manual retrieval in continuous production cycle.
Customizable: Adapts to various screening standards and parameter configurations for different customer needs, adjustable for different specification prismatic cells.
Application Areas: Suitable for square aluminum shell battery production in new energy vehicles, energy storage systems, power tools, ensuring battery pack consistency and stability.
Technical Parameters: Example model can test about 600 batteries/hour, compatible with cell sizes 20-280mm wide, 20-80mm thick, and 20-360mm high, covering most market prismatic batteries.
| Parameter | Specification |
|---|---|
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types | Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |
