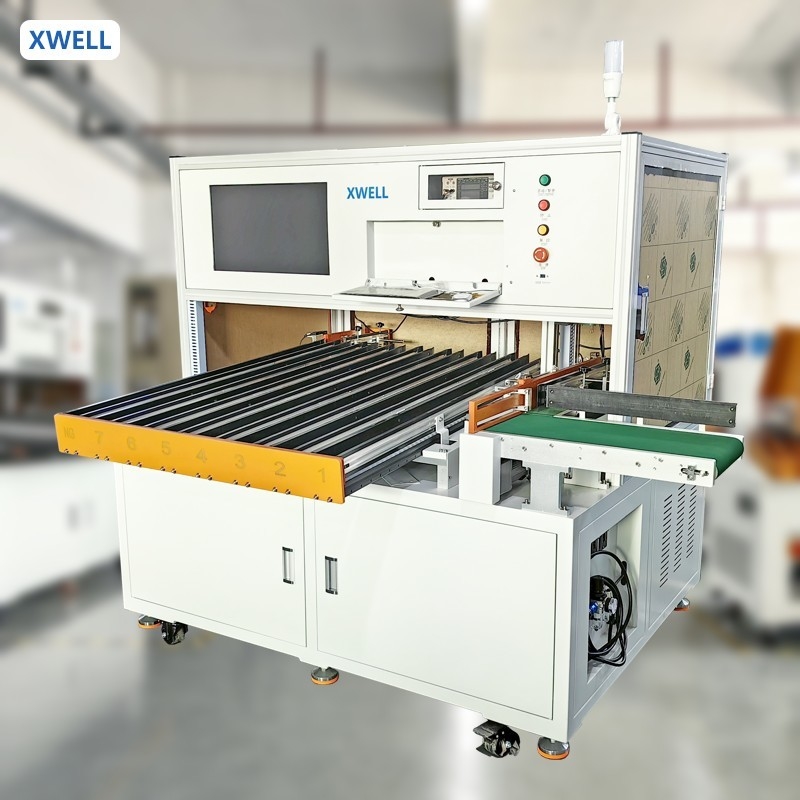

XWELL 10-Channel Prismatic Battery Cell Sorting Machine 600pcs/h
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Brand: | XWELL | Product Origin: | China |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | 10-channel prismatic battery sorter,high-speed battery cell sorting machine,600pcs/h prismatic cell sorter |
||
Product Description
| Attribute | Value |
|---|---|
| Brand | XWELL |
| Product Origin | China |
| Input Voltage | AC220V/50Hz |
| Speed | 600 pcs/h |
| Test Parameter | AC internal resistance, open DC voltage |
| Power | <1000W |
| Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years of experience in the new energy battery industry. To create more economic value and offer one-step service, we combine all our knowledge and resources to provide complete solutions in the battery industry. Our expertise includes battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machines, plastic ultrasonic welding machines, metal ultrasonic spot welding machines, wire ultrasonic welding machines, and most accessories. We have exported our products to more than 60 countries worldwide in the past 10 years and have passed CE safety certification. With rich technology and capital resources, we place high importance on new product innovation, introducing at least one new machine design every year. Creating value for customers first is our path to achieving self-worth. We look forward to cooperating with you!
Mainly used for various square shell battery voltage and internal resistance detection, discrimination gear, uploading data to the database, and other main functions. Features manual loading and unloading.
- Power source: 220V±10% ~ 50Hz; Power: 6.0kW (user provided)
- Compressed air source: ≥ 0.6mpa 30L/s (utilization rate 50%)
- Ambient temperature: 20-50℃
- Equipment capacity: 500/hour ~600/hour
| Specification | Details |
|---|---|
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types | Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |
