XW-PC12 Prismatic Battery Cell Stacking Pressing Machine 1200mm
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-PC12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 100 pcs/month |
|
Detail Information |
|||
| Model: | XW-PC12 | Max Travel: | 1200mm |
|---|---|---|---|
| Control System: | PLC | User Interface: | Touch Screen Software |
| Driver: | Servo Motor | Transmission: | Bearings And Screw |
| Highlight: | prismatic battery cell stacking machine,battery pack pressing machine 1200mm,prismatic cell pressing machine with warranty |
||
Product Description
| Attribute | Value |
|---|---|
| Model | XW-PC12 |
| Max travel | 1200mm |
| Control system | PLC |
| User interface | Touch screen software |
| Driver | Servo motor |
| Transmission | Bearings and screw |
Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years experience in new energy battery industry. We provide complete solutions in battery industry including laboratory equipment, production equipment, pack equipment, and various welding machines. Our products have been exported to more than 60 countries and we have passed CE safety certification.

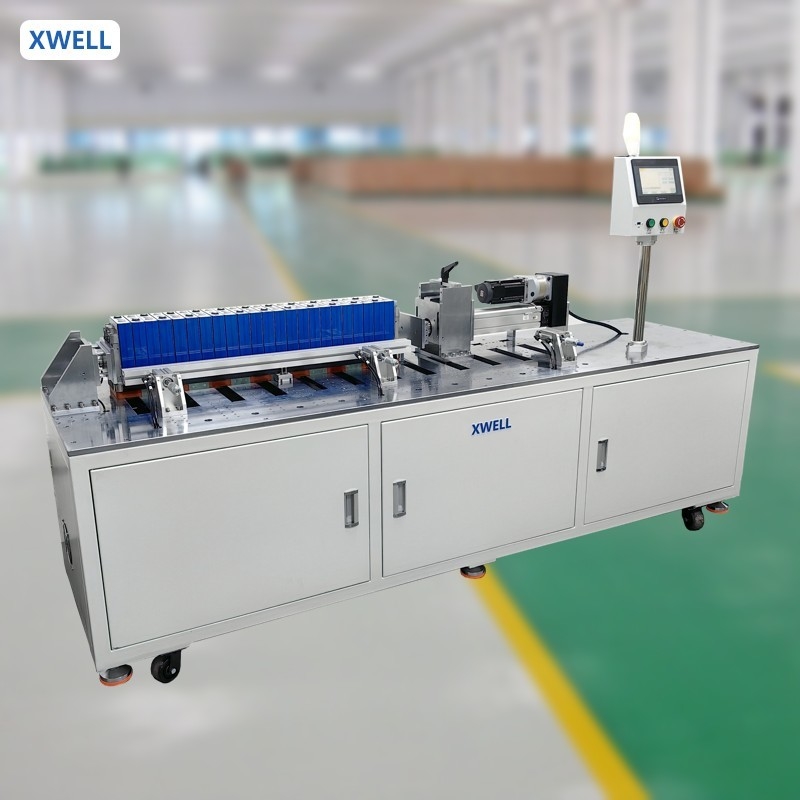

The XW-PC12 prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape. It adopts servo motor + screw module + planetary reducer for stacking and extruding, controlled by pressure controller with extrusion stacking thrust reaching more than 100KG. The machine features triple protection function of software limitation, hardware limitation, and pressure limitation.
- 7-inch touch screen with PLC for control, easy to operate
- Adapt to various size of batteries with editable parameters
- Built-in high-precision pressure sensor (accuracy within 0.1KG)
- Screw module + servo motor + reducer for large extrusion output force
- High positioning accuracy (0.01mm)
| Item | Name | Parameter |
|---|---|---|
| 1 | Model | XW-PC10 |
| 2 | Max travel | 1000mm |
| 3 | Control system | PLC |
| 4 | User interface | Touch screen software |
| 5 | Driver | Servo motor |
| 6 | Transmission | Bearings and screw |
| 7 | Pressure measure | High precision pressure sensor |
| 8 | Position accuracy | 0.01mm |
| 9 | Pressure accuracy | 0.1kg |
| 10 | Power supply | AC220V/50Hz |
| 11 | Power | 2KW |
| 12 | Size | 1500*500*1500mm |
| 13 | Weight | 200kg |
