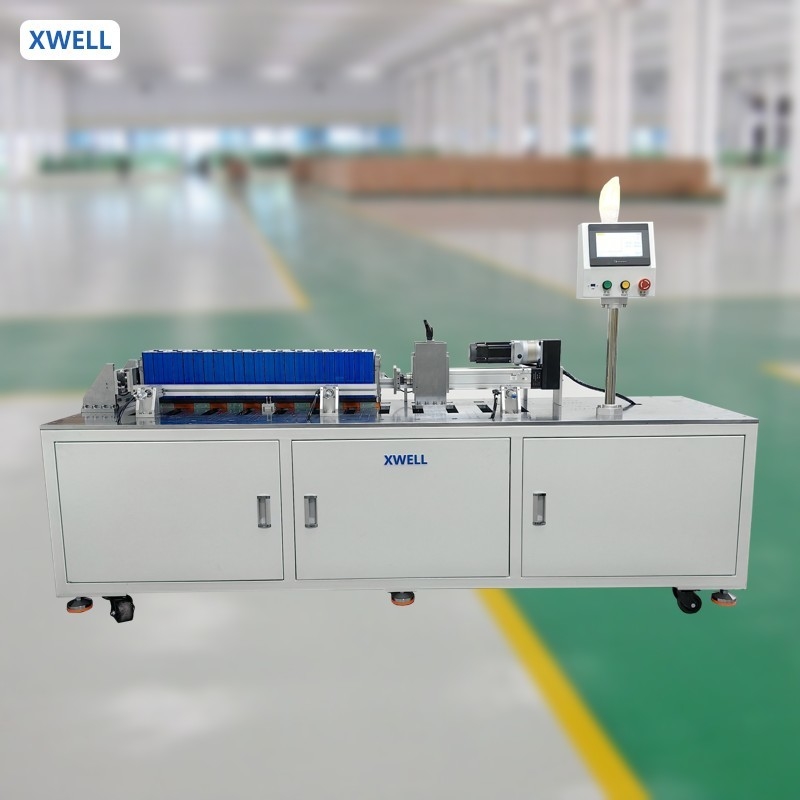

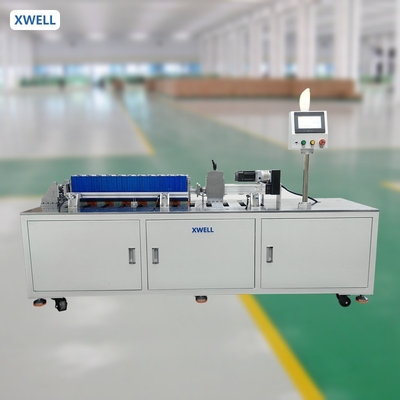

PLC-Controlled Prismatic Battery Cell Stacking Press Machine

Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years experience in the new energy battery industry. To create more economic value and offer one-step service, we combine all knowledge and resources to provide complete solutions in the battery industry, including battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machines, plastic ultrasonic welding machines, metal ultrasonic spot welding machines, wire ultrasonic welding machines, and most accessories. We have exported to over 60 countries worldwide in the past 10 years and have passed CE safety certification. With rich technology and capital resources, we emphasize new product innovation, introducing at least one new machine design annually. Creating value for customers first is our path to achieving self-worth. We look forward to cooperating with you!

The final compression length and pressure of the battery pack are set in advance, and then the machine can fully automatically compress the battery pack. When the length or pressure of the battery pack reaches the preset value, the machine will end the compression process.

• Applicable battery model: Prismatic cell: 100Ah-280Ah
• Module compatible size specifications: Length: 200-900mm, width: 100-320mm, height: 80-250mm
• Probability of equipment damage to products: ≤0.1%
• Equipment program control method: PLC control
• Capacity speed: ≥8ppm (Specific depends on manual operation)
• NG equipment failure rate: ≤1% (Malfunctions caused solely by equipment)
• Squeeze pressure range: 0-500kg, Squeezing reaches the set upper limit value, with a red buzzing light alarm function
• Squeeze stroke range: 0-110mm adjustable
• Using high-precision pressure load gauges, Accuracy: 0.1%
• Squeezing and moving with repeated positioning accuracy: ±0.05mm
• Real time monitoring of extrusion distance and extrusion pressure dual protection, each parameter can be adjusted through PLC

• Ambient temperature: 5ºC-35ºC
• Humidity: 20%-90%
• Air Pressure: 0.5～0.6 Mpa
• Supply voltage: 220V-50Hz/60Hz
• Area to weight ratio: ≤200kg/M²

A: We are professional battery machine manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.

A: Yes, we welcome sample orders to test and check quality.

A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

A: Generally, it will take 15-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

A: Yes, We have professional QC team to make sure that the product in good condition before send out the goods.

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
