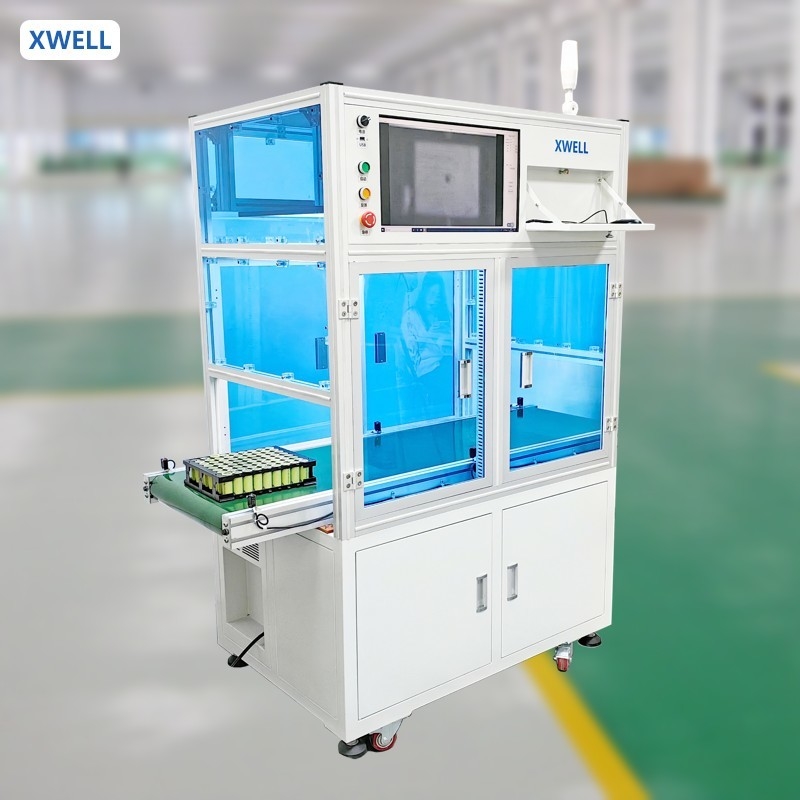

CCD Tester Battery Cell Positive And Negative Tester & Battery Pack Welding Testing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-CCD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 PCS a month |
|
Detail Information |
|||
| Compliance: | CE Certified | Lead Time: | 7days |
|---|---|---|---|
| Test Speed: | 0.1-500mm/min | Working Voltage: | AC 220V 50Hz~60Hz |
| Itinerary: | 200mm | Control Method: | Computer Control |
| Voltage Range: | 0-150V | Charge Current: | 20A |
| Sustainable Load Power: | 6KW | Data Output: | EXCEL,TXT |
| Test Temperature: | 130C+2.0℃;( No-load Test) | Minimum Air Pressure: | 5.0KPa |
| Communication Means: | TCP/IP Protocol | Electric Axis Stroke: | ≥450mm |
Product Description
CCD Tester Battery Cell Positive And Negative Tester & Battery Pack Welding Testing Equipment
1. Function description
CCD solder joint detector is an automatic equipment for lithium battery processing, which has the functions of automatic positive and negative pole detection, positive and negative solder joint detection, solder joint defect differentiation, automatic discharge, etc.
2. Process flow
Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
Details:
