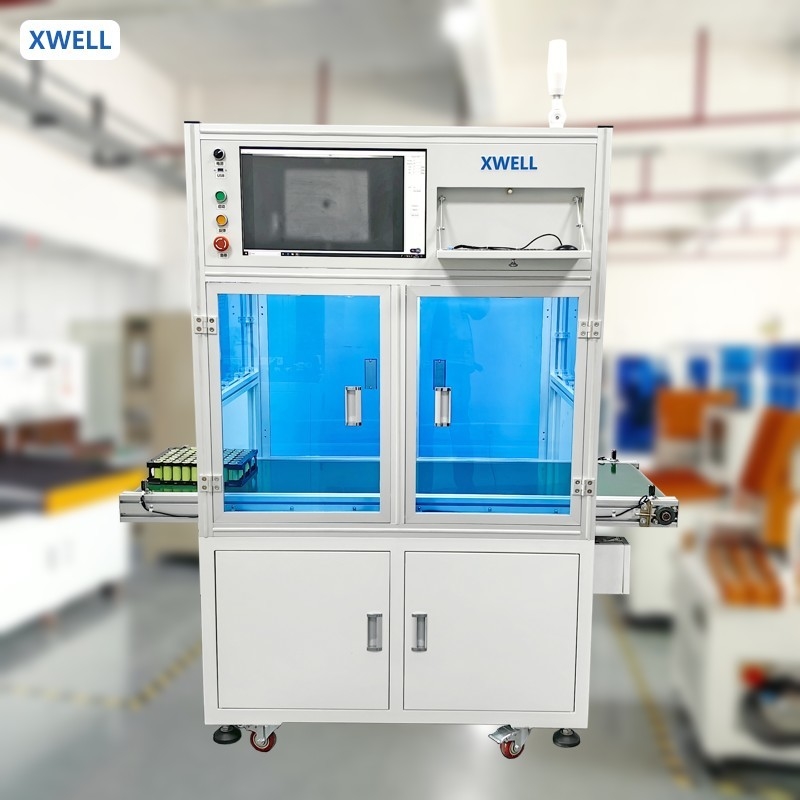

CCD Visual Inspection Equipment For Testing Positive& Negative Poles Of Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-CCD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 PCS a month |
|
Detail Information |
|||
| Type: | Automatic | Payment: | L/C D/A D/P T/T Western Union |
|---|---|---|---|
| Test Speed: | 0.1-500mm/min | Working Voltage: | AC 220V 50Hz~60Hz |
| Itinerary: | 200mm | Control Method: | Computer Control |
| Voltage Range: | 0-150V | Charge Current: | 20A |
| Sustainable Load Power: | 6KW | Data Output: | EXCEL,TXT |
| Test Temperature: | 130C+2.0℃;( No-load Test) | Minimum Air Pressure: | 5.0KPa |
| Communication Means: | TCP/IP Protocol | Electric Axis Stroke: | ≥450mm |
Product Description
CCD Visual Inspection Equipment For Testing Positive& Negative Poles Of Battery
1 .Function description
CCD detector is an automatic equipment for lithium battery processing, which has the function of automatically detecting the positive and negative poles of lithium battery cylindrical cells.
2．Technological process
The cell enters the detection area → sampling and scanning → positive and negative electrode detection → NG automatic detection → OK .
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
Details:
